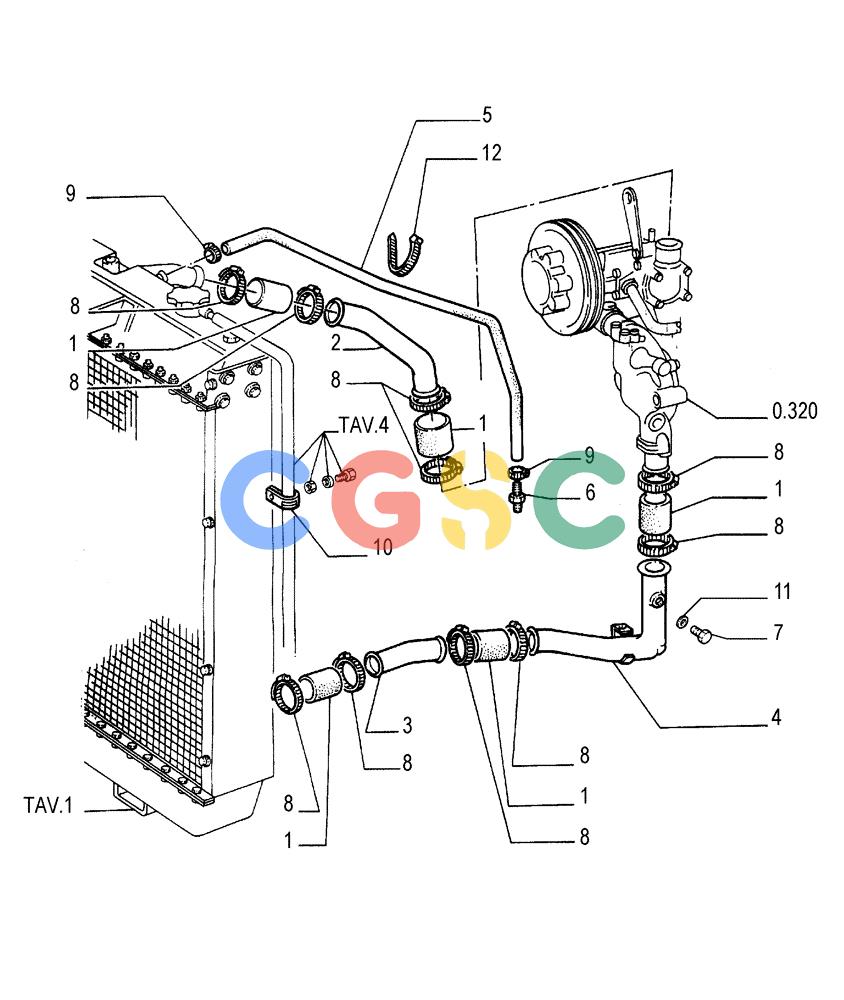

纽荷兰零件查询(FD175) - CRAWLER DOZER (N.A. VERSION)(S/N 061640 & AFTER) (1/93-) (0.550[03]) - ENGINE COOLING SYSTEM - PIPING New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
615 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 79108614 | [4] | HOSE,50.00 mm ID x 110.00 mm | LEC |
| 2. | 76038005 | [1] | RIGID TUBE | LEC |
| 3. | 76037554 | [1] | RIGID TUBE | LEC |
| 4. | 76037934 | [1] | RIGID TUBE | LEC |
| 5. | 79112250 | [1] | SLEEVE | LEC Superseded by part number: 78100213 |
| 6. | 79110880 | [1] | HYD CONNECTOR | LEC |
| 7. | 4595833 | [1] | PLUG | MOD |
| 8. | 79083847 | [8] | HOSE CLAMP,M50-70 | LEC |
| 9. | 79084753 | [2] | HOSE CLIP,M10-18 | LEC |
| 10. | 10450190 | [2] | CLAMP,10mm, Coat, 9mm Bolt Hole, P Type | JES66X9 Superseded by part number: |
| 11. | 14496631 | [1] | WASHER,10.5mm ID x 21mm OD x 2mm Thk | LEC Superseded by part number: 14496621 |
| 12. | 4982514 | [2] | CABLE TIE | LEC370 Superseded by part number: 87615202 |
