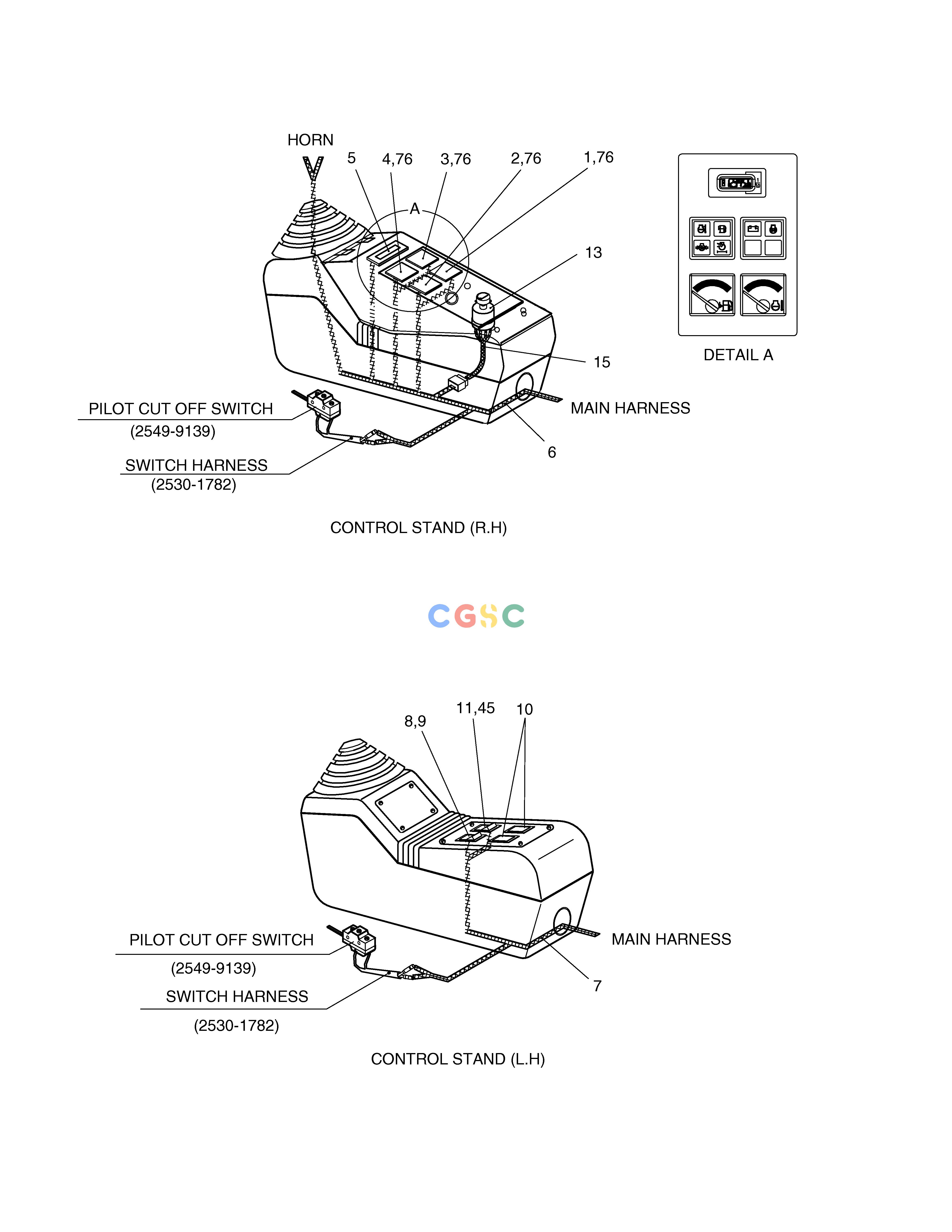

斗山零件查询ELECTRIC SYSTEM(1-1)-CONTROL STAND SOLAR 035 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
482 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
528-00018
|
[1] |
GAUGE;W/T
|
|
| 10. |
2621-9002
|
[2] |
COVER
|
|
| 11. |
2190-2036D13
|
[1] |
INSERT;HIGH SPEED
|
|
| 13. |
2549-1152
|
[1] |
SWITCH;STARTER
|
|
| 15. |
530-00150
|
[1] |
HARNESS;STARTER SWITCH
|
|
| 2. |
528-00017
|
[1] |
GAUGE;FUEL
|
|
| 3. |
534-00018
|
[1] |
LAMP;PILOT(2)
|
|
| 4. |
534-00017
|
[1] |
LAMP;PILOT(1)
|
|
| 45. |
2549-9115
|
[1] |
SWITCH;ROCKER(12V)
|
|
| 5. |
2528-9040
|
[1] |
METER;HOUR
|
|
| 6. |
530-00172
|
[1] |
HARNESS;STAND(R.H)
|
|
| 6. |
530-00172A
|
[1] |
HARNESS;STAND(R.H)
|
|
| 7. |
530-00171
|
[1] |
HARNESS;STAND(L.H)
|
|
| 7. |
530-00171A
|
[1] |
HARNESS;STAND(L.H)
|
|
| 76. |
120-00261
|
[8] |
SCREW
|
|
| 8. |
2549-9115
|
[1] |
SWITCH;ROCKER(12V)
|
|
| 9. |
2190-2036D4
|
[1] |
INSERT;LAMP
|
|
