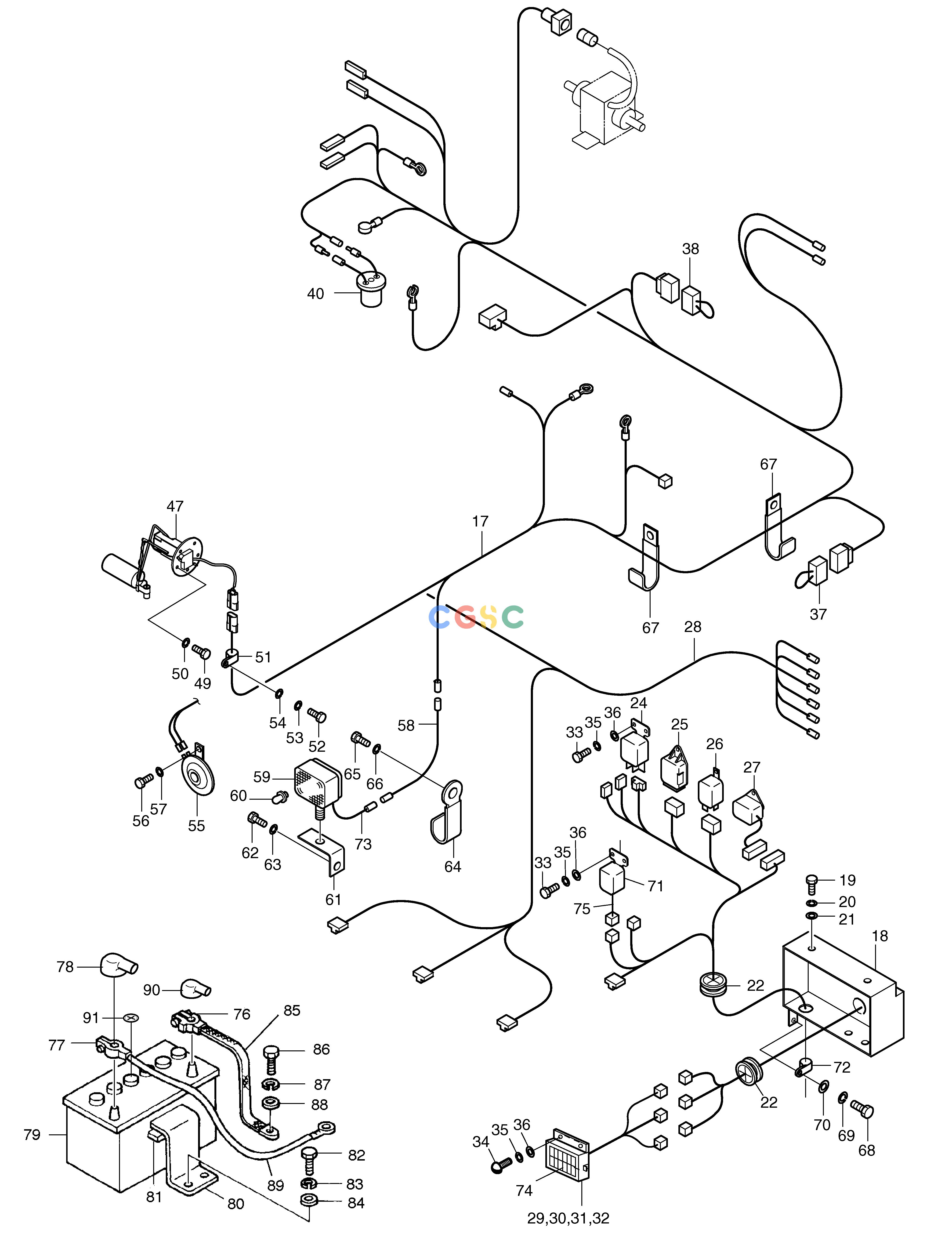

斗山零件查询ELECTRIC SYSTEM(1-1) SOLAR 035 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
541 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 17. |
2530-1674B
|
[1] |
HARNESS;MAIN
|
|
| 17. |
2530-1674C
|
[1] |
HARNESS;MAIN
|
2530-1674E
|
| 17. |
2530-1674E
|
[1] |
HARNESS;MAIN
|
|
| 18. |
2197-1235C
|
[1] |
BRACKET;ELECTRICAL
|
|
| 19. |
S0508853
|
[2] |
. BOLT
|
|
| 20. |
S5102503
|
[2] |
. WASHER
|
|
| 21. |
S5102513
|
[2] |
WASHER;SPRING M8
|
|
| 22. |
2161-2462
|
[2] |
GROMMET
|
|
| 24. |
485-00005
|
[1] |
RELAY;GLOW
|
|
| 25. |
40901-04740
|
[1] |
TIMER;QOS Ⅲ
|
|
| 26. |
40901-04750
|
[1] |
RELAY;STARTER
|
|
| 27. |
40901-04760
|
[1] |
UNIT;SAFETY
|
|
| 28. |
2530-1588A
|
[1] |
HARNESS;SOLENOID
|
|
| 29. |
2510-1008
|
[1] |
BOX;FUSE
|
|
| 30. |
2527-1018
|
[1] |
FUSE,BLADE 20A
|
|
| 31. |
2527-1016
|
[1] |
FUSE,BLADE 10A
|
|
| 32. |
2527-1017
|
[1] |
FUSE,BLADE 15A
|
|
| 33. |
S0504653
|
[4] |
. BOLT
|
|
| 34. |
S0504853
|
[2] |
BOLT M6X1.0X20
|
|
| 35. |
S5102303
|
[6] |
. WASHER
|
|
| 36. |
S5010313
|
[6] |
WASHER
|
|
| 37. |
2527-1026
|
[1] |
LINK;FUSIBLE 35A
|
|
| 38. |
2527-1027
|
[1] |
FUSIBLE LINK
|
|
| 40. |
40901-04780
|
[1] |
INDICATOR;DUST
|
|
| 47. |
547-00015
|
[1] |
SENSOR;FUEL
|
|
| 49. |
S0502853
|
[5] |
. BOLT M5X0.8X10
|
|
| 50. |
S5100203
|
[5] |
WASHER
|
|
| 51. |
2124-1509D2
|
[1] |
CLIP
|
|
| 52. |
S0504653
|
[1] |
. BOLT
|
|
| 53. |
S5102303
|
[1] |
. WASHER
|
|
| 54. |
S5010313
|
[1] |
WASHER
|
|
| 55. |
2516-1121
|
[1] |
HORN
|
|
| 56. |
S0508653
|
[1] |
BOLT
|
|
| 57. |
S5102503
|
[1] |
. WASHER
|
|
| 58. |
2530-1768
|
[1] |
HARNESS;WORKING LAMP
|
|
| 59. |
2534-9048
|
[1] |
LAMP;WORKING
|
|
| 60. |
2515-1016D2
|
[1] |
BULB
|
|
| 61. |
2197-1237A
|
[1] |
BRACKET
|
|
| 62. |
S0514853
|
[1] |
BOLT
|
|
| 63. |
S5102703
|
[1] |
WASHER
|
|
| 64. |
2124-1509D2
|
[1] |
CLIP
|
|
| 65. |
S0508653
|
[1] |
BOLT
|
|
| 66. |
S5102503
|
[1] |
. WASHER
|
|
| 67. |
2621-3277
|
[2] |
CLAMP
|
|
| 68. |
S0511653
|
[1] |
BOLT
|
|
| 69. |
S5102603
|
[1] |
. WASHER
|
|
| 70. |
S5102613
|
[1] |
WASHER
|
|
| 71. |
2544-9032
|
[1] |
RELAY
|
|
| 72. |
2124-1509D5
|
[2] |
CLIP D36/M8
|
|
| 73. |
2530-1768
|
[1] |
HARNESS;WORKING LAMP
|
|
| 74. |
2190-3579
|
[1] |
PLATE;NAME(DOMESTIC)
|
|
| 75. |
2530-1769
|
[1] |
HARNESS;LAMP RELAY
|
|
| 76. |
2550-1014D2
|
[1] |
TERMINAL,BATTERY(-)
|
|
| 77. |
2550-1014D1
|
[1] |
TERMINAL,BATTERY(+)
|
|
| 78. |
2160-1212
|
[1] |
CAP,BATT. TML(+)
|
|
| 79. |
2506-9009
|
[1] |
BATTERY
|
|
| 80. |
2506-1108
|
[1] |
CLAMP;BATTERY
|
|
| 81. |
2161-2055
|
[1] |
RUBBER;PLATE
|
|
| 82. |
S0512053
|
[2] |
BOLT
|
|
| 83. |
S5102603
|
[2] |
. WASHER
|
|
| 84. |
2114-1058D10
|
[2] |
WASHER
|
|
| 85. |
2553-1275D39
|
[1] |
CABLE,EARTH
|
|
| 86. |
S0511853
|
[1] |
BOLT
|
|
| 87. |
S5102603
|
[1] |
. WASHER
|
|
| 88. |
S5010613
|
[1] |
WASHER
|
|
| 89. |
2553-1275D38
|
[1] |
CABLE;BATT.-STARTER
|
|
| 90. |
2160-1213
|
[1] |
CAP,BATT. TML(-)
|
|
| 91. |
2190-3140
|
[1] |
LABEL
|
|
