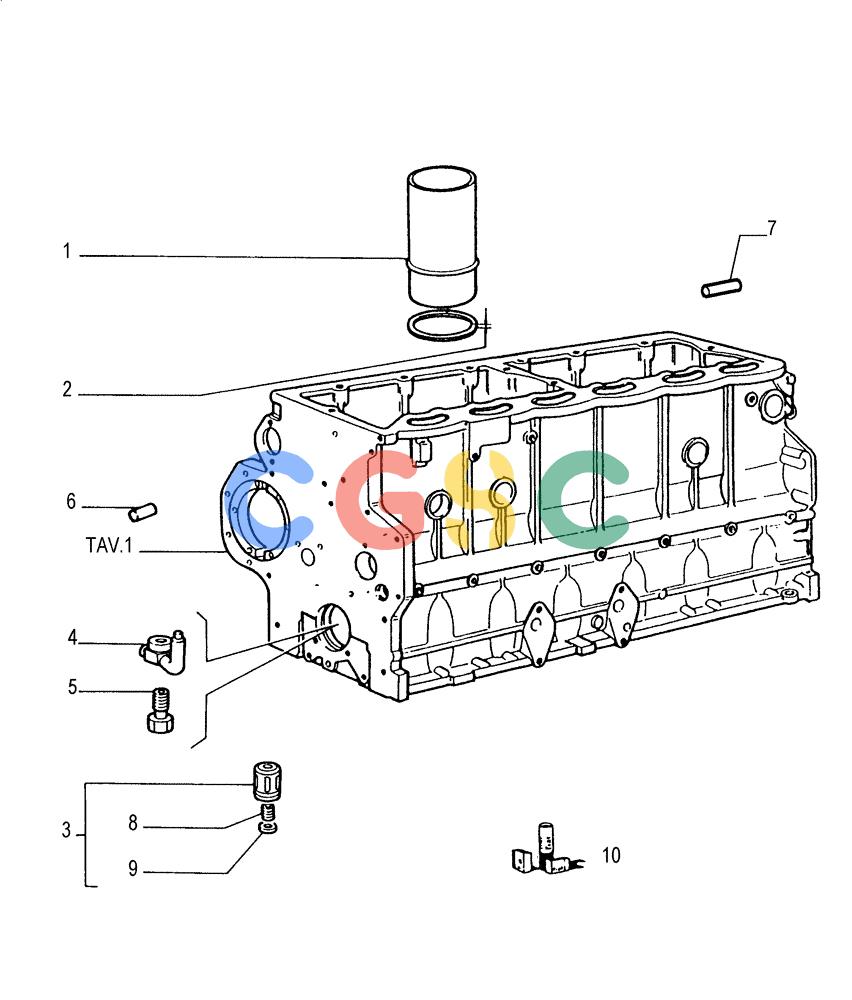

纽荷兰零件查询(FD175) - CRAWLER DOZER (N.A. VERSION)(S/N 061640 & AFTER) (1/93-) (0.040[02]) - CRANKCASE New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
163 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 98429670 | [6] | ENGINE CYLINDER LINER | BRE |
| 2. | 98435309 | [6] | SHIM | BRE3,22÷3,23 |
| 2. | 98435308 | [6] | SHIM | BRE3,21÷3,22 |
| 2. | 98435307 | [6] | SHIM | BRE3,20÷3,21 |
| 2. | 98435306 | [6] | SHIM | BRE3,19÷3,20 |
| 2. | 98435305 | [6] | SHIM | BRE3,18÷3,19 |
| 3. | 4853427 | [1] | PRESSURE RELIEF VALVE | BRE- ASSY |
| 4. | 98432725 | [6] | LUBE OIL NOZZLE | BRELUBE OIL JET NOZZLE |
| 5. | 61315021 | [6] | BANJO BOLT | LEC10X1,25 |
| 6. | 4708557 | [2] | DOWEL | MOD12X13 |
| 7. | 98425922 | [2] | DOWEL | BRE |
| 7. | 10839810 | [4] | DOWEL,12mm OD x 18mm L | TTF12X18 Superseded by part number: 17275610 |
| 8. | 4853431 | [1] | SPRING | BRE |
| 9. | 14458381 | [1] | O-RING,32.99mm ID x 2.62" Width | LEC Superseded by part number: 70926843 |
| 10. | 1940151 | [1] | ENGINE GASKET KIT | LEC |
