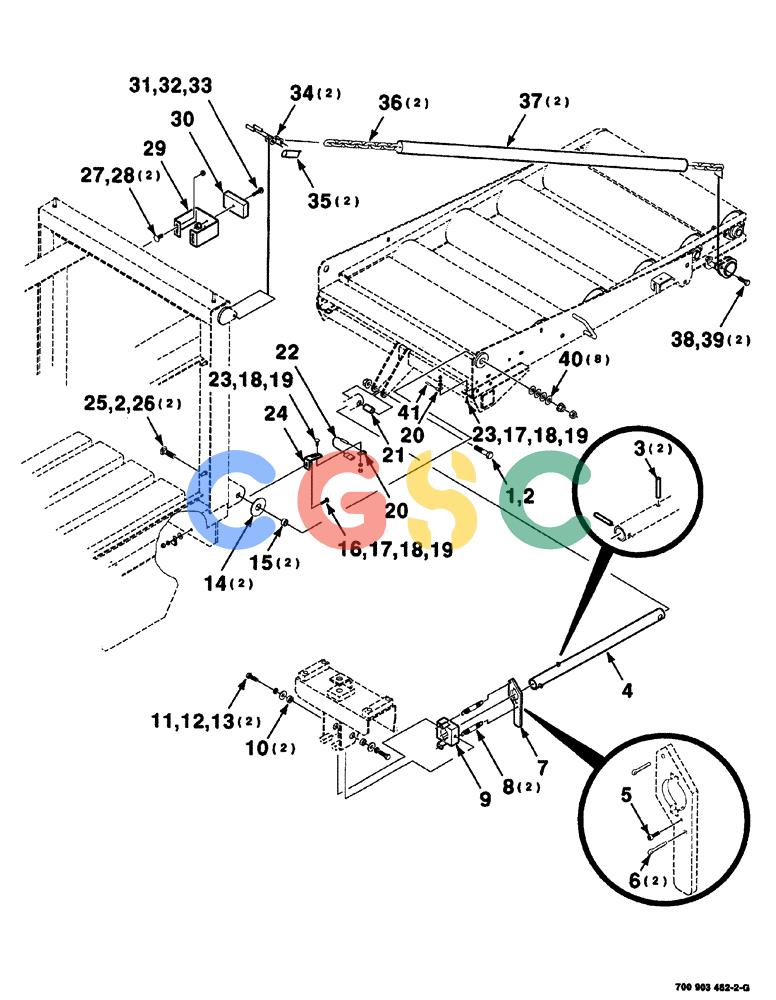

| 1. |
413-1052
|
[1] |
BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5
|
CAS
5/8-11 x 3-1/4C Superseded by part number: 9827853
|
| 2. |
232-53110
|
[3] |
FLANGE NUT,Flg, 5/8"-11
|
CAS
Superseded by part number: 84180923
|
| 3. |
700720195
|
[2] |
PIN
|
CAS
groove, 5/16 x 2-1/4 Superseded by part number: 87656195
|
| 4. |
700151970
|
[1] |
TUBE
|
HFI
ASSEMBLY push, Includes: Ref. 3
|
| 5. |
700719204
|
[1] |
HEX SOC SCREW
|
CAS
special, #10-24 x 1/2 HSHCS
|
| 6. |
432-812
|
[2] |
COTTER PIN,3/4" OAL x 1/8" W
|
CAS
Superseded by part number: 80756
|
| 7. |
700151968
|
[1] |
HANDLE
|
HFI
ASSEMBLY, Includes: Ref. 5 and 6
|
| 8. |
700709843
|
[2] |
SPRING
|
CAS
extension
|
| 9. |
700151967
|
[1] |
TRUNNION
|
HFI
WA
|
| 10. |
378604
|
[2] |
SPACER
|
CAS
|
| 11. |
413-820
|
[2] |
BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5
|
CAS
Superseded by part number: 72187215, 87670
|
| 12. |
80679
|
[2] |
LOCK WASHER,1/20.507 CST ZND
|
NH
|
| 13. |
700711557
|
[2] |
WASHER
|
CAS
hardened wide plain, 1/2
|
| 14. |
700714065
|
[2] |
WASHER
|
CAS
brass
|
| 15. |
700121805
|
[2] |
SPACER
|
CAS
bushing
|
| 16. |
111-122
|
[1] |
CARRIAGE BOLT,Short NK, 1/4"-20 x 1 1/4", G5
|
CAS
|
| 17. |
495-21031
|
[2] |
WASHER,1/4"
|
CAS
Superseded by part number: 80701, 72187262
|
| 18. |
492-11025
|
[3] |
LOCK WASHER,1/4"
|
CAS
Superseded by part number: 72187247, 80682
|
| 19. |
425-104
|
[3] |
NUT,1/4"-20, Cl 5
|
CAS
Superseded by part number: 7770, 72187220
|
| 20. |
751321
|
[2] |
CLAMP
|
CAS
1/4 Superseded by part number: 80272535
|
| 21. |
6475842
|
[1] |
SPACER
|
CAS
|
| 22. |
700113863
|
[1] |
SENSOR
|
CAS
ASSEMBLY
|
| 23. |
434-412
|
[2] |
CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 3/4", Gr 5
|
CAS
1/4-20 x 3/4 RHSNB Superseded by part number: 280638
|
| 24. |
700129761
|
[1] |
BRACKET
|
CAS
angle switch
|
| 25. |
433-1044
|
[2] |
CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 3/4", Gr 5
|
CAS
5/8-11 x 2-3/4 RHSNB Superseded by part number: 9602228
|
| 26. |
425-1010
|
[2] |
NUT,5/8"-11, G5
|
CAS
Superseded by part number: 280374
|
| 27. |
433-612
|
[2] |
CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5
|
CAS
Superseded by part number: 280430
|
| 28. |
231-5146
|
[2] |
FLANGE NUT,3/8"-16
|
CAS
Superseded by part number: 72187068, 247780
|
| 29. |
700129682
|
[1] |
SUPPORT
|
CAS
PAD
|
| 30. |
700707584
|
[1] |
PAD
|
CAS
neoprene
|
| 31. |
163-41
|
[1] |
SCREW,Sl Hex Wshr Hd, 5/16" - 18 x 1 1/4"
|
CAS
5/16-18 x 1-1/4 HWHMS
|
| 32. |
495-61034
|
[1] |
WASHER,0.34" ID x 0.88" OD x 0.06" Thk
|
CAS
wide plain, 5/16
|
| 33. |
232-5315
|
[1] |
FLANGE NUT,Flg, 5/16"-18
|
CAS
5/16-18 HFTLN GR/G
|
| 34. |
ZJC606M
|
[2] |
HOOK
|
CAS
link mid, (Pins Included)
|
| 35. |
700714066
|
[2] |
PIN
|
CAS
SAFETY
|
| 36. |
700714047
|
[2] |
CHAIN (AG)
|
CAS
|
| 37. |
700714150
|
[2] |
HOSE PROTECTION,38.10 mm ID x 1400.00 mm
|
CAS
Sleeve
|
| 38. |
413-828
|
[2] |
BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5
|
CAS
Superseded by part number: 9707516, 72187217
|
| 39. |
231-5348
|
[2] |
FLANGE NUT,Flg, 1/2"-13
|
CAS
1/2-13 HFTLN GR/G Superseded by part number: 86521610
|
| 40. |
700712616
|
[8] |
SPRING WASHER
|
CAS
SPRING
|
| 41. |
700706340
|
[1] |
MAGNET
|
CAS
|
