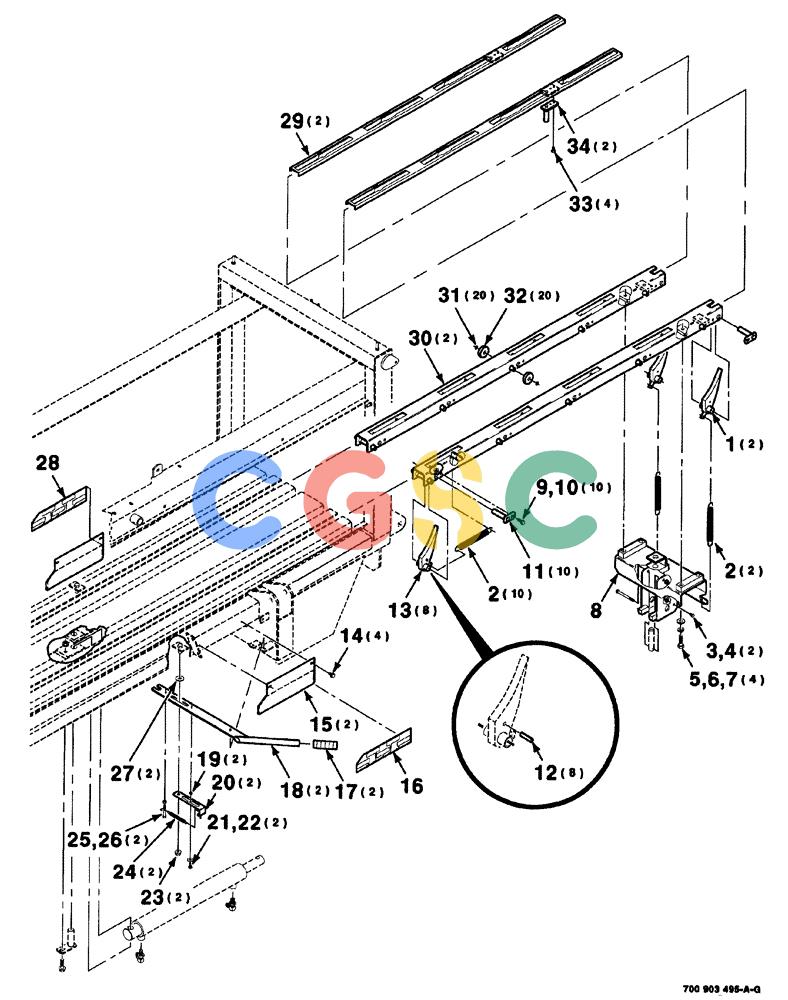

| 1. |
700129695
|
[2] |
PLATE ASSY.
|
CAS
hay dog WA ejector
|
| 2. |
700714166
|
[12] |
SPRING
|
CAS
extension
|
| 3. |
413-512
|
[2] |
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
|
CAS
Superseded by part number: 72187196, 87872
|
| 4. |
232-5315
|
[2] |
FLANGE NUT,Flg, 5/16"-18
|
CAS
5/16-18 HFTLN GR/G
|
| 5. |
413-1036
|
[4] |
BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5
|
CAS
5/8-11 x 2-1/4C Superseded by part number: 88556
|
| 6. |
492-11062
|
[4] |
BEARING WASHER,5/8"
|
CAS
Superseded by part number: 86729275
|
| 7. |
396-21066
|
[4] |
WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk
|
CAS
5/8" bolt size Superseded by part number: 87613283
|
| 8. |
700129574
|
[1] |
FAN
|
CAS
PUSHER, WA ejector Superseded by part number: 700153431
|
| 9. |
121-226
|
[10] |
SERRATED BOLT,Hex, 3/8" - 16 x 1"
|
CAS
Superseded by part number: 87034804
|
| 10. |
232-5316
|
[10] |
FLANGE NUT,Flg, 3/8"-16
|
CAS
3/8-16 HFTLN GR/G Superseded by part number: 86521609
|
| 11. |
700129567
|
[10] |
PIN
|
CAS
WA hay dog
|
| 12. |
138-155
|
[8] |
LOCK PIN,5/16" x 1 1/4", Slotted
|
CAS
Superseded by part number: 87721
|
| 13. |
700129571
|
[8] |
PLATE ASSY.
|
CAS
hay dog ejector, Includes: Ref. 12
|
| 14. |
281-34912
|
[4] |
SELF-TAP SCREW,Hex Washer, 3/8" - 16 x 3/4"
|
CAS
3/8-16 x 3/4 HWHTCTS
|
| 15. |
700129665
|
[2] |
LARGE PLATE
|
CAS
PLATE, LARGE DECAL
|
| 16. |
700714106
|
[1] |
DECAL
|
CAS
ejector, left
|
| 17. |
27342
|
[2] |
GRIP
|
CAS
HANDLE
|
| 18. |
700129704
|
[2] |
HANDLE
|
CAS
WA
|
| 19. |
700127895
|
[2] |
SPACER
|
CAS
|
| 20. |
700129769
|
[2] |
SUPPORT
|
CAS
spring
|
| 21. |
413-48
|
[2] |
BOLT,Hex, 1/4" - 20 x 1/2", Gr 5
|
CAS
Superseded by part number: 88542
|
| 22. |
495-21031
|
[2] |
WASHER,1/4"
|
CAS
Superseded by part number: 80701, 72187262
|
| 23. |
231-5348
|
[2] |
FLANGE NUT,Flg, 1/2"-13
|
CAS
1/2-1 3 HFTLN GR/G Superseded by part number: 86521610
|
| 24. |
7758915
|
[2] |
SPRING
|
CAS
extension
|
| 25. |
413-428
|
[2] |
BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5
|
CAS
1/4-20 x 1-3/4 C Superseded by part number: 280164
|
| 26. |
425-104
|
[2] |
NUT,1/4"-20, Cl 5
|
CAS
Superseded by part number: 7770, 72187220
|
| 27. |
700711557
|
[2] |
WASHER
|
CAS
hardened wide plain, 1/2
|
| 28. |
700714107
|
[1] |
DECAL
|
CAS
ejector, right
|
| 29. |
700129705
|
[2] |
CHANNEL
|
CAS
WA
|
| 30. |
700129562
|
[2] |
CHANNEL
|
CAS
WA
|
| 31. |
103-1162
|
[20] |
SNAP RING,#62, Ext
|
CAS
|
| 32. |
667925R91
|
[20] |
ROLLER BEARING,0.628" ID x 2" OD x 15 mm
|
IH
Superseded by part number: 47577176
|
| 33. |
164-40
|
[4] |
HEX SOC SCREW,Flat Hd, 5/16" - 18 x 3/4"
|
CAS
special, 5/16-18 x 3/4 HSFHCS Superseded by part number: 61-43112
|
| 34. |
700129701
|
[2] |
PIN
|
CAS
WA
|
