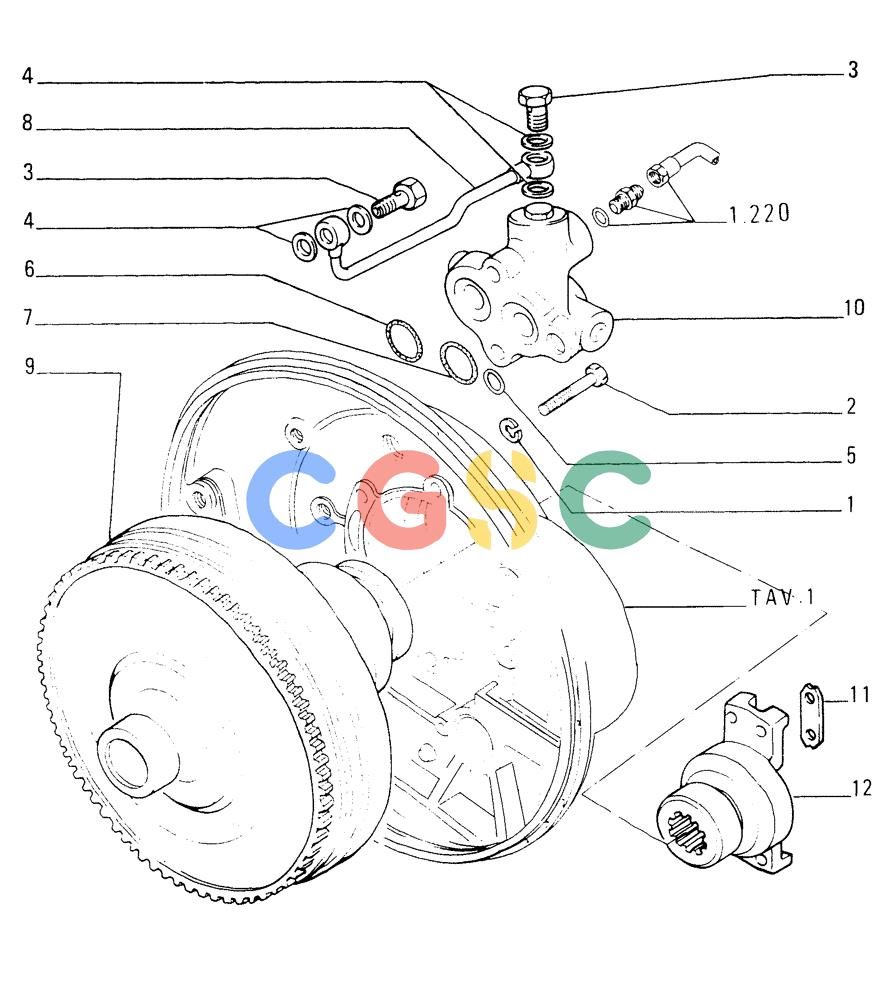

纽荷兰零件查询(FD175) - CRAWLER DOZER (N.A. VERSION)(S/N 061640 & AFTER) (1/93-) (1.200[02]) - UNIT TORQUE CONVERTER New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
970 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 12645031 | [2] | WASHER,8.45mm ID x 21mm OD x 3mm Thk | LEC |
| 2. | 11288034 | [2] | BOLT,Hex, M10 x 1.25 x 60, 10.9 | LEC Superseded by part number: 11288030 |
| 3. | 11903717 | [2] | HYD CONNECTOR,M8 x 1.25 x 16mm | BAS Superseded by part number: 11903714 |
| 4. | 2852057 | [4] | SEALING WASHER,M8 x 12 x 1 Thk | TORSEAL WASHER |
| 5. | 14453081 | [1] | O-RING,0.07" Thk x 0.426" ID, -13, Cl 7, 75 Duro | LEC |
| 6. | 14463281 | [1] | O-RING,0.984" ID x 0.139" Width | TTF |
| 7. | 14463781 | [1] | O-RING,0.139" Thk x 1.296" ID, -219, Cl 7, 75 Duro | LEC |
| 8. | 79043955 | [1] | RIGID TUBE | LEC |
| 9. | 76038816 | [1] | TORQUE CONVERTER | LEC- ASSY SEE TAV.7 |
| 10. | 79101853 | [1] | HYDRAULIC VALVE | LEC- ASSY SEE TAV.8 |
| 11. | 592915 | [1] | CONTROL PANEL | LEC |
| 12. | 79010476 | [1] | YOKE | LEC |
