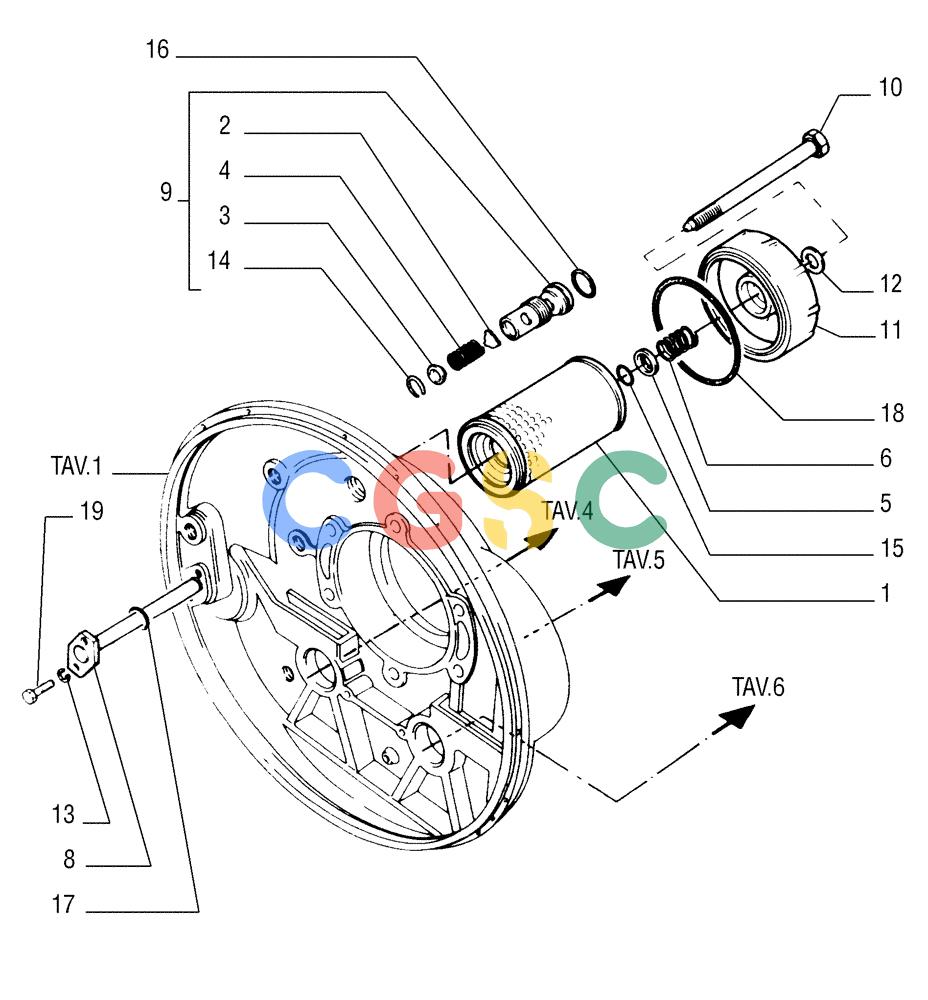

纽荷兰零件查询(FD175) - CRAWLER DOZER (N.A. VERSION)(S/N 061640 & AFTER) (1/93-) (1.200[03]) - UNIT TORQUE CONVERTER New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
878 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 1930722 | [1] | HYDRAULIC OIL FILTER | LEC |
| 2. | 581598 | [1] | CARRIER | LEC Superseded by part number: LEC590496 |
| 3. | 581599 | [1] | CUP | LEC |
| 4. | 581600 | [1] | SPRING | LEC |
| 5. | 581604 | [1] | CUP,14.2mm ID x 20.6mm OD x 0.8mm Thk | LEC |
| 6. | LEC581605 | [1] | SPRING | LEC |
| 8. | 76032866 | [1] | STUD | LEC |
| 9. | 590496 | [1] | | LEC- ASSY Superseded by part number: BER590496, BER590496, LEC590496 |
| 10. | 4954874 | [1] | SCREW | LEC |
| 11. | 4960068 | [1] | COVER | LEC |
| 12. | 79035959 | [1] | SEAL | LEC Superseded by part number: 44906168 |
| 13. | 14496531 | [1] | WASHER,8.4mm ID x 17mm OD x 1.6mm Thk | LEC Superseded by part number: 86624184 |
| 14. | 11057876 | [1] | SNAP RING,M20, Int | LEC |
| 15. | 14457181 | [1] | O-RING,13.94mm ID x 2.62" Width | TTF Superseded by part number: 17281681 |
| 16. | 14457881 | [1] | O-RING,25.07mm ID x 2.62" Width | LEC2,62X25,07 |
| 17. | 14463681 | [1] | O-RING,31.34mm ID x 3.53" Width | TTF |
| 18. | 14466281 | [1] | O-RING,107.54mm ID x 4.512" OD x 3.53mm | LEC3,53X107,54 |
| 19. | 16043634 | [2] | SCREW,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd | LEC Superseded by part number: 16043637 |
