纽荷兰零件查询(FD175) - CRAWLER DOZER (N.A. VERSION)(S/N 061640 & AFTER) (1/93-) (1.200[06]) - UNIT TORQUE CONVERTER New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
686 次

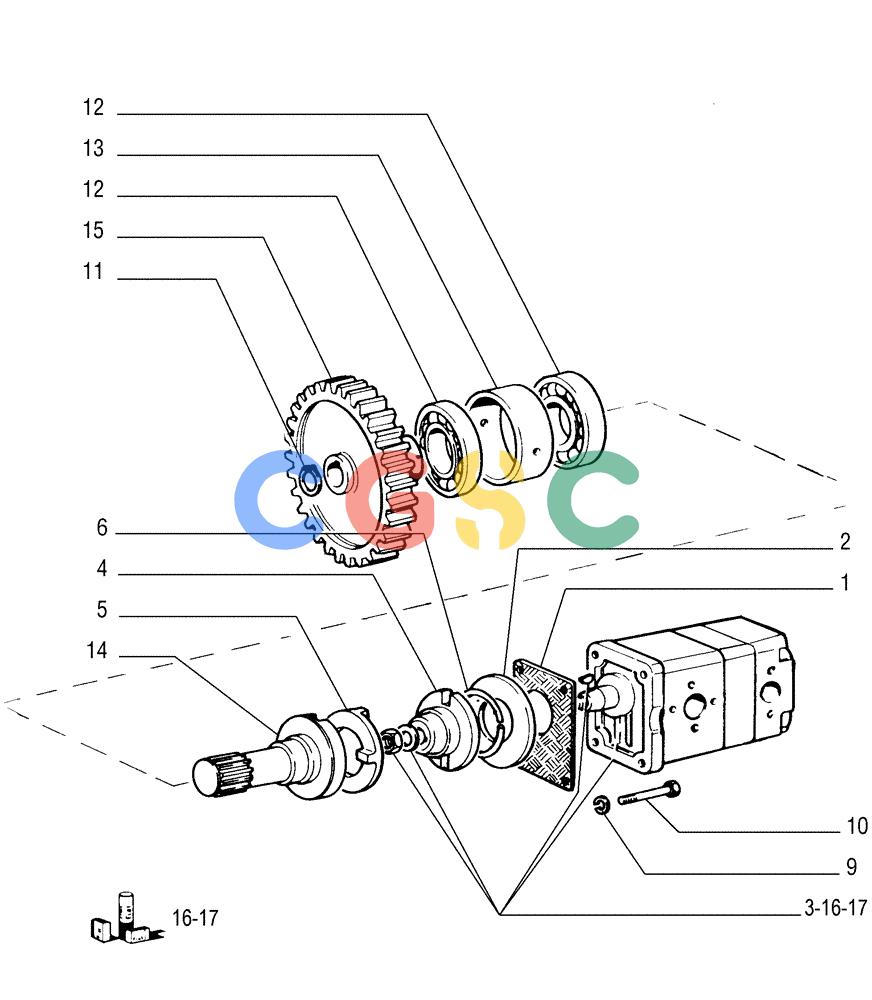

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 565153 | [1] | GASKET | MKT Superseded by part number: 1905922 |
| 2. | 565154 | [1] | RING | MOD |
| 3. | 76043440 | [1] | HYDRAULIC PUMP,19.2 CC | LEC |
| . . | 76043440R | [1] | REMAN-HYD PUMP | LECFD175 (S/N 061640 & AFTER) (1/93-) |
| . . | 76043440C | [1] | CORE-HYDRAULIC PUMP | LECReturn Number |
| 4. | 591794 | [1] | CHANNEL | LEC |
| 5. | 4526899 | [1] | COUPLING RING | BRE |
| 6. | 4526900 | [1] | SNAP RING | BRE |
| 9. | 14496431 | [4] | WASHER,6.4mm ID x 12.5mm OD x 1.6mm Thk | LEC Superseded by part number: 86588450 |
| 11. | 11067476 | [1] | SNAP RING,M26, Ext | LEC |
| 12. | 20685450 | [2] | BALL BEARING,30 mm ID x 62 mm OD x 16 mm | TTF30X62 Superseded by part number: 75224976, 210064, 700803262 |
| 13. | 79009557 | [1] | SPACER | LEC |
| 14. | 79010926 | [1] | SHAFT | LEC |
| 15. | 79010927 | [1] | GEAR | LEC |
| 16. | 76043438 | [1] | KIT | LEC |
| 17. | 76043439 | [1] | GASKET KIT | LEC |
| 10. | 10903024 | [4] | BOLT,Hex, M6 x 35mm, Cl 8.8 | TTF Superseded by part number: 16604024 |
