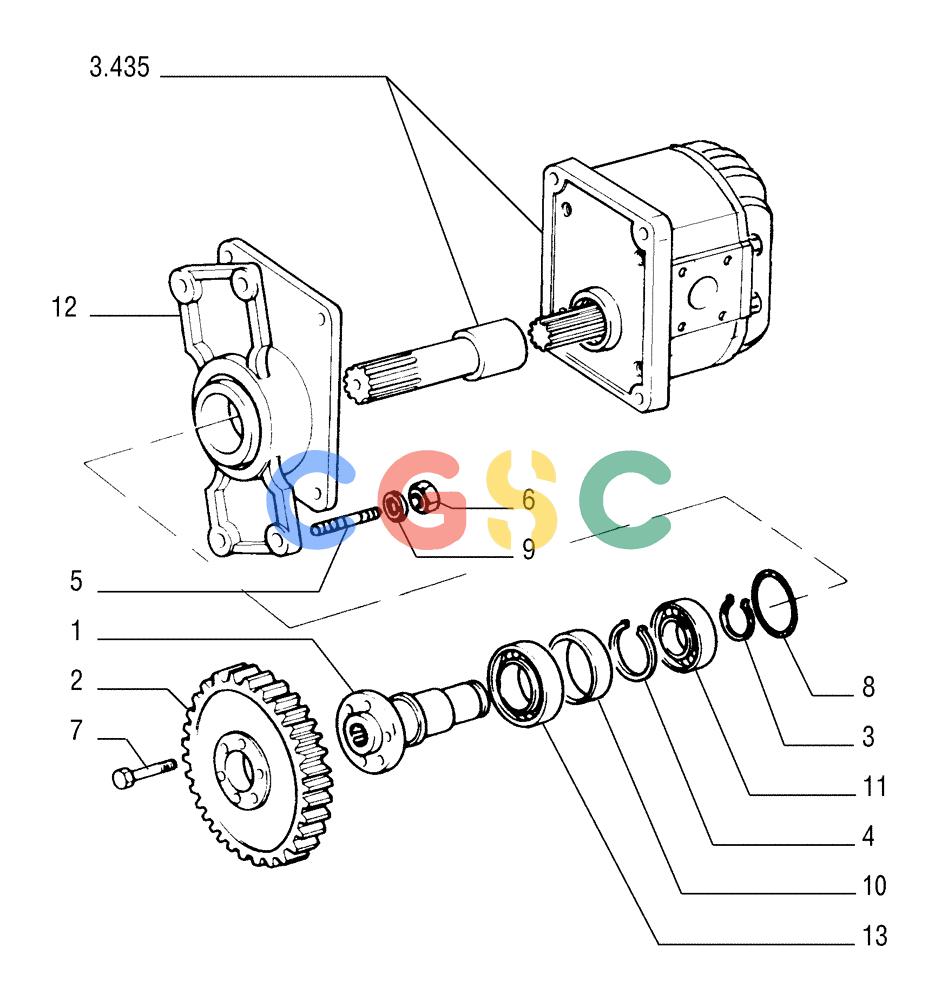

纽荷兰零件查询(FD175) - CRAWLER DOZER (N.A. VERSION)(S/N 061640 & AFTER) (1/93-) (1.200[05]) - UNIT TORQUE CONVERTER New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
228 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76016057 | [1] | SHAFT | LEC |
| 2. | 4953896 | [1] | GEAR | LEC |
| 3. | 11069076 | [1] | SNAP RING,M45, Ext | TTF Superseded by part number: 370007 |
| 4. | 11069376 | [1] | SNAP RING,M50, Ext | TTF Superseded by part number: 8603209 |
| 5. | 11800434 | [4] | STUD | LEC Superseded by part number: 11800430 |
| 6. | 12164121 | [4] | NUT,M16 x 1.5, Cl 10 | TTF |
| 7. | 14233434 | [6] | BOLT,Hex, M10 x 1.25 x 25mm, Cl 10.9, Full Thd | TTF10X1,25X25 |
| 8. | 14465281 | [1] | O-RING,2.984" ID x 3.262" OD x 0.139" | LEC Superseded by part number: 608377 |
| 9. | 14496931 | [4] | WASHER,17mm ID x 30mm OD x 3mm Thk | IMO Superseded by part number: 86625266 |
| 10. | 24976420 | [1] | RING | LEC |
| 11. | 28042490 | [1] | BALL BEARING | PLO45X75 Superseded by part number: 278793 |
| 12. | 79005840 | [1] | SUPPORT | LEC |
| 13. | 26797990 | [1] | ROLLER BEARING,50mm ID x 90mm OD x 20mm W | LEC50X90 Superseded by part number: 87745456 |
