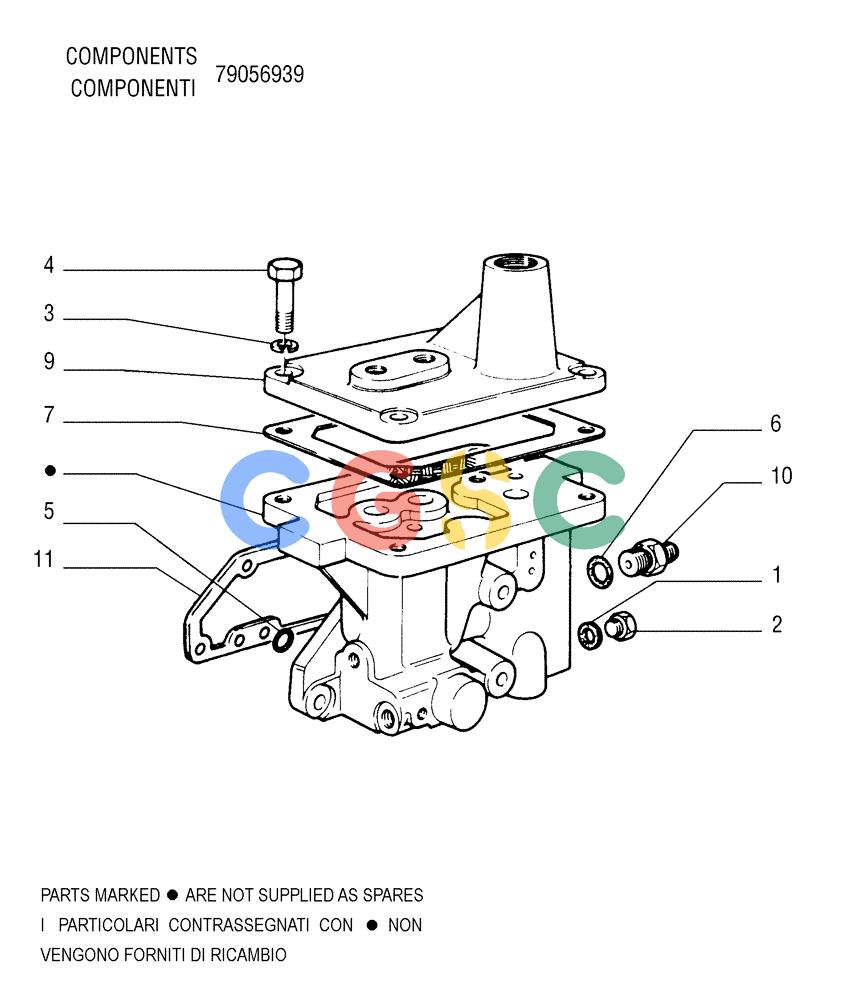

纽荷兰零件查询(FD175) - CRAWLER DOZER (N.A. VERSION)(S/N 061640 & AFTER) (1/93-) (1.211[10]) - TRANSMISSION - CONTROL VALVE New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
1015 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 79086323 | [3] | SEAL,12.7mm ID x 18mm OD x 1.5mm Thk | LEC |
| 2. | 10300511 | [3] | PLUG,M12 x 1.5 x 12, Cl5.8 | JES |
| 3. | 14496631 | [4] | WASHER,10.5mm ID x 21mm OD x 2mm Thk | LEC Superseded by part number: 14496621 |
| 4. | 11306931 | [4] | BOLT,Hex, M10 x 1.25 x 30, 10.9, Full Thd | BHB Superseded by part number: 11306934 |
| 5. | 14456881 | [4] | O-RING,0.362" ID x 0.103" Width | JES |
| 7. | 76031413 | [1] | GASKET,0.8mm Thk | LEC |
| 9. | 79056946 | [1] | COVER | LEC |
| 10. | 79069345 | [1] | HYD CONNECTOR | LEC |
| 11. | 76028170 | [1] | GASKET,0.8mm Thk | LEC |
| 6. | 14457281 | [1] | O-RING,0.612" ID x 0.103" Width | TTF |
