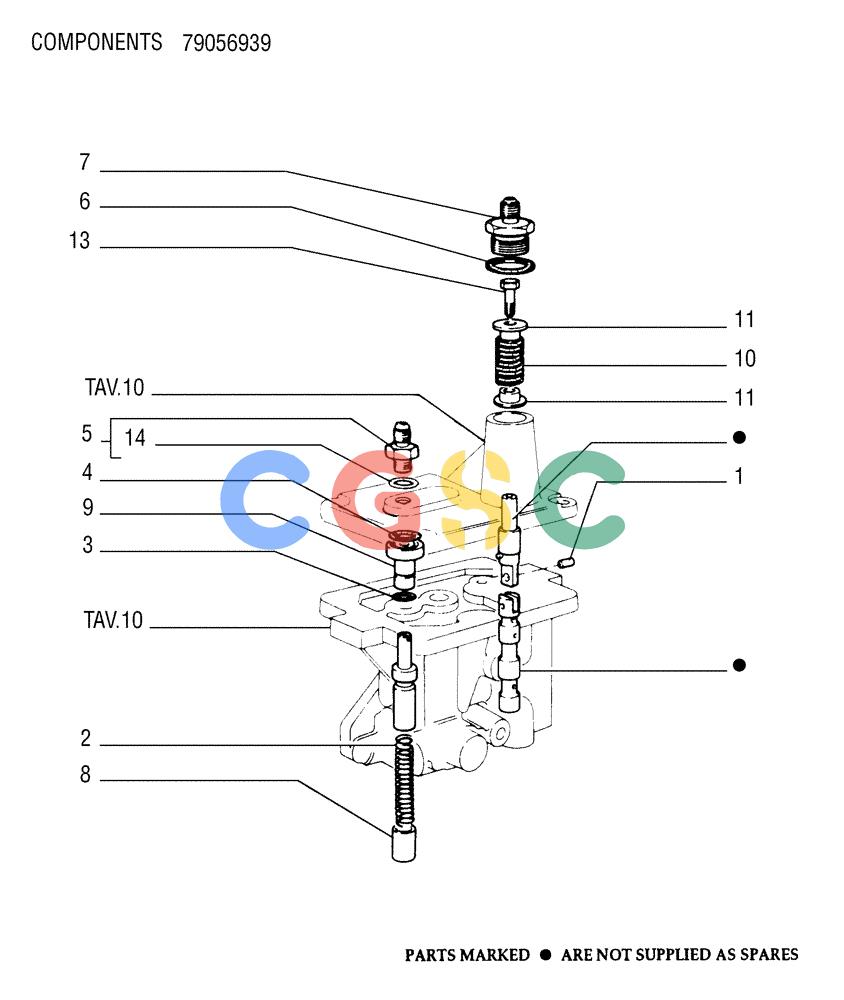

纽荷兰零件查询(FD175) - CRAWLER DOZER (N.A. VERSION)(S/N 061640 & AFTER) (1/93-) (1.211[11]) - TRANSMISSION - CONTROL VALVE New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
805 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 575888 | [1] | PIN | LEC |
| 2. | 581235 | [2] | SPRING | LEC |
| 3. | 14457081 | [2] | O-RING,12.37mm ID x 2.62mm | TTF Superseded by part number: 17281581 |
| 4. | 14457481 | [2] | O-RING,0.737" ID x 0.103" Width | MKT2,62X18,72 Superseded by part number: 17281981 |
| 5. | 71311870 | [2] | HYD CONNECTOR | TOR- ASSY |
| 6. | 79022167 | [1] | WASHER | LEC Superseded by part number: 71303419 |
| 7. | 79034409 | [1] | HYD CONNECTOR | LEC |
| 8. | 79056944 | [2] | SPACER | LEC |
| 9. | 79113514 | [2] | SPACER | LEC |
| 10. | 79056948 | [1] | SPRING | LEC |
| 11. | 79056949 | [2] | CUP | LEC |
| 13. | 79065947 | [1] | BOLT,Hex, M6 x 1 x 22mm, Cl 8.8 | LEC |
| 14. | 70932571 | [1] | O-RING | LEC Superseded by part number: 14456981 |
