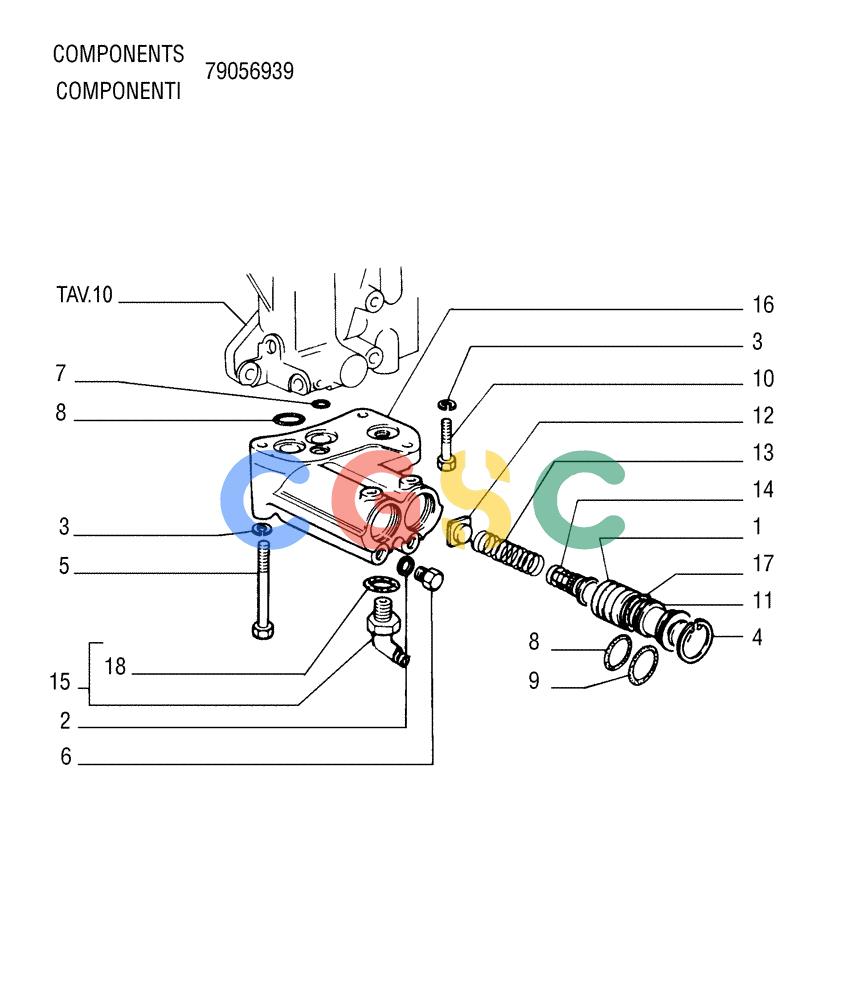

纽荷兰零件查询(FD175) - CRAWLER DOZER (N.A. VERSION)(S/N 061640 & AFTER) (1/93-) (1.211[12]) - TRANSMISSION - CONTROL VALVE New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
712 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 586171 | [2] | PISTON | LEC |
| 2. | 79061168 | [2] | SEAL | LEC |
| 3. | 14496631 | [3] | WASHER,10.5mm ID x 21mm OD x 2mm Thk | LEC Superseded by part number: 14496621 |
| 4. | 11058675 | [2] | LOCKING RING | MKT30,1X1,2 Superseded by part number: 11058676 |
| 5. | 11343731 | [1] | SCREW,Hex, M10 x 1.25 x 65mm, Cl 10.9 | LEC Superseded by part number: |
| 6. | 11903111 | [2] | PLUG,M10 x 1.25 x 11, Cl5.8 | JES Superseded by part number: 11903114 |
| 8. | 14453681 | [3] | O-RING,0.07" Thk x 0.801" ID, -19, Cl 7, 75 Duro | LEC Superseded by part number: 5135736 |
| 9. | 14453781 | [1] | O-RING,21.95mm ID x 1.78" Width | MKT(M21.95 ID x 1.78 Thk) Superseded by part number: 5135737 |
| 9. | 14453881 | [1] | O-RING,23.52mm ID x 1.78" Width | LEC(M23.52 ID x 1.78 Thk) |
| 10. | 15970931 | [2] | BOLT,Hex, M10 x 1.25 x 35mm, Cl 10.9 | LEC Superseded by part number: 15970934 |
| 11. | 79040809 | [2] | PLUG | LEC |
| 12. | 79042386 | [2] | CAP WASHER | LEC |
| 13. | 79042388 | [2] | SPRING | LEC |
| 14. | 79042389 | [2] | SPRING | LEC |
| 15. | 79054401 | [1] | HYD CONNECTOR | LEC- ASSY |
| 16. | 79056942 | [1] | BODY | LEC |
| 17. | 79012577 | [1] | SPRING WASHER | LEC |
| 18. | 70932571 | [1] | O-RING | LEC Superseded by part number: 14456981 |
| 7. | 14453181 | [1] | O-RING,0.489" ID x 0.07" Width | TTF |
