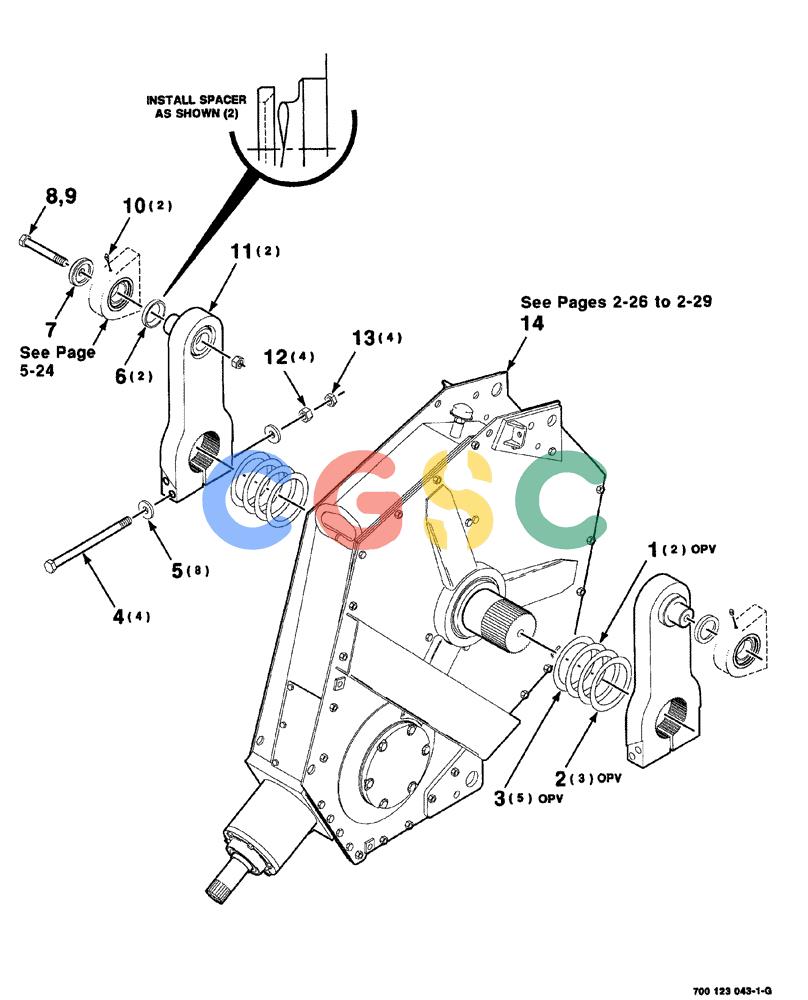

凯斯零件查询(8575) - CASE IH MID-SIZE RECTANGULAR BALER (NORTH AMERICA) (1/95-12/00) (02-024) - GEARBOX AND CRANK ARM ASSEMBLY Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
673 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
700710391
|
[2] |
SHIM
|
CAS
0.64/.025
|
| 2. |
700710390
|
[3] |
SHIM
|
CAS
0.25/.010
|
| 3. |
700710393
|
[5] |
SHIM
|
CAS
1.27/.050
|
| 4. |
426-12160
|
[4] |
BOLT,Hex, 3/4" - 10 x 10", Gr 8
|
CAS
3/4-10 x 10 B GR8 NP
|
| 5. |
705566
|
[8] |
WASHER
|
IH
hardened plain, 3/4
|
| 6. |
700123119
|
[2] |
SPACER
|
CAS
BEARING, crank arm
|
| 7. |
700123122
|
[1] |
WASHER
|
CAS
special
|
| 8. |
413-1280
|
[1] |
BOLT,Hex, 3/4" - 10 x 5", Gr 5
|
CAS
Superseded by part number: 88421
|
| 9. |
232-41112
|
[1] |
NUT,3/4"-10, GC
|
CAS
Superseded by part number: 280375
|
| 10. |
219-8
|
[2] |
LUBE NIPPLE,1/4" - 28 NPTF
|
CAS
Superseded by part number: 87414
|
| 11. |
700123114
|
[2] |
ARM
|
CAS
WA CRANK Superseded by part number: 700161319
|
| 12. |
329-1012
|
[4] |
NUT,3/4"-10, G8
|
CAS
|
| 13. |
425-1412
|
[4] |
JAM NUT,Jam, 3/4"-10, G5
|
CAS
3/4-10 HJN GR2 Superseded by part number: 86632557
|
| 14. |
700123044
|
[1] |
GEARBOX ASSY
|
CAS
GEARBOX ASSEMBLY
|
