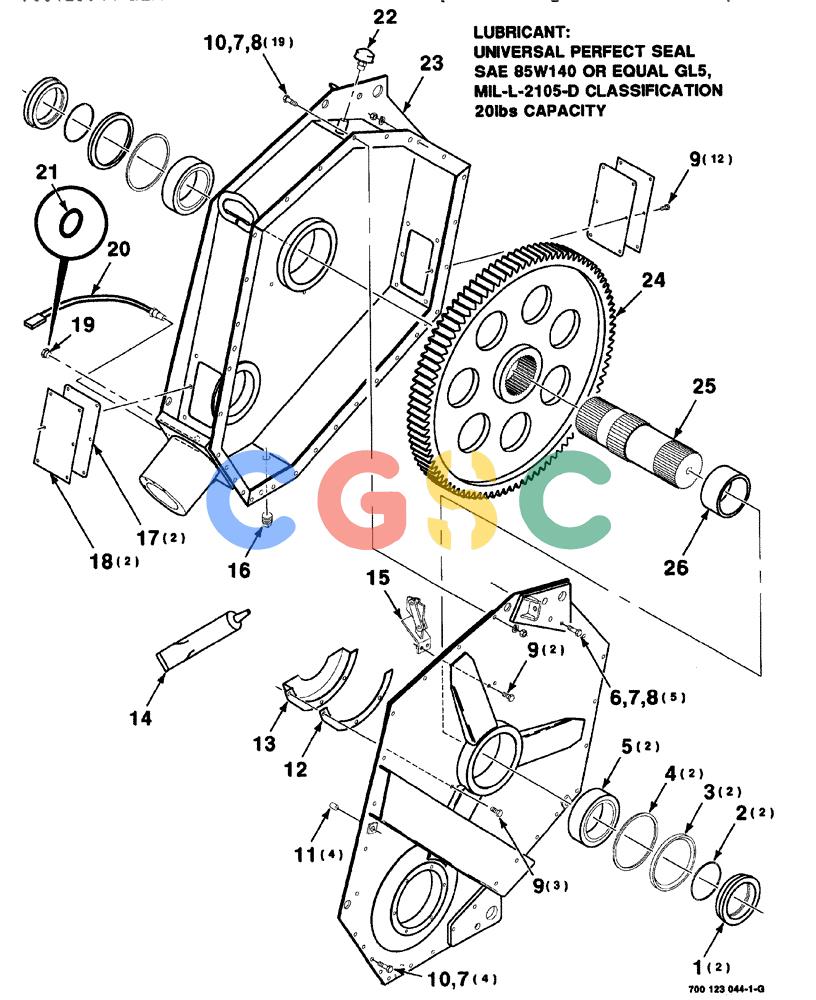

凯斯零件查询(8575) - CASE IH MID-SIZE RECTANGULAR BALER (NORTH AMERICA) (1/95-12/00) (02-026) - GEARBOX ASSEMBLY 700123044 GEARBOX ASSEMBLY COMPLETE, INCLUDES PAGES 2-26 THRU 2-29 Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
112 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
700123104
|
[2] |
SPACER
|
CAS
output
|
| 2. |
737221
|
[2] |
O-RING
|
CAS
O-RING
|
| 3. |
700706047
|
[2] |
SEAL
|
CAS
oil
|
| 4. |
700710385
|
[2] |
SNAP RING
|
CAS
RING retaining
|
| 5. |
700710381
|
[2] |
SPHERICAL BEARING,120 mm ID x 180 mm OD x 46 mm
|
CAS
roller, spherical
|
| 6. |
700708353
|
[5] |
SCREW
|
HFI
M12 x 1.75 x 40 C
|
| 7. |
892-10012
|
[28] |
LOCK WASHER,M12
|
CAS
|
| 8. |
825-1112
|
[24] |
NUT,M12, Cl 8
|
CAS
M12 x 1.75 H Superseded by part number: 9706685
|
| 9. |
614-10025
|
[17] |
BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8
|
CAS
Superseded by part number: 11106231
|
| 10. |
614-12030
|
[23] |
BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd
|
IH
Superseded by part number: 9706687
|
| 11. |
700709990
|
[4] |
PIN
|
CAS
dowel, 5/8 x 1
|
| 12. |
700706080
|
[1] |
GASKET
|
CAS
|
| 13. |
700123106
|
[1] |
FLANGE
|
CAS
WA
|
| 14. |
700707823
|
[1] |
SEALANT
|
CAS
305 ml/10.3 oz Superseded by part number: MC37464
|
| 15. |
700123110
|
[1] |
SCRAPER
|
CAS
WA left
|
| 16. |
221-846
|
[1] |
PLUG,Hex Soc, 1"-11 1/2
|
CAS
PIPE
|
| 17. |
700710372
|
[2] |
GASKET
|
CAS
|
| 18. |
700123105
|
[2] |
COVER
|
CAS
|
| 19. |
700701293
|
[1] |
PLUG
|
CAS
o-ring, Includes: Ref. 21 Superseded by part number: 9672438
|
| 20. |
700716952
|
[1] |
THERMOSTAT
|
CAS
ASSEMBLY
|
| 21. |
237-6004
|
[1] |
O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro
|
CAS
Superseded by part number: 165202, 72186131
|
| 22. |
8799280
|
[1] |
FILTER
|
CAS
breather
|
| 23. |
700123045
|
[1] |
HOUSING
|
HFI
GEARBOX ASSEMBLY (Includes Lid)
|
| 24. |
700710354
|
[1] |
GEAR
|
CAS
output
|
| 25. |
700123098
|
[1] |
SHAFT
|
CAS
output
|
| 26. |
700123099
|
[1] |
SPACER
|
CAS
left
|
