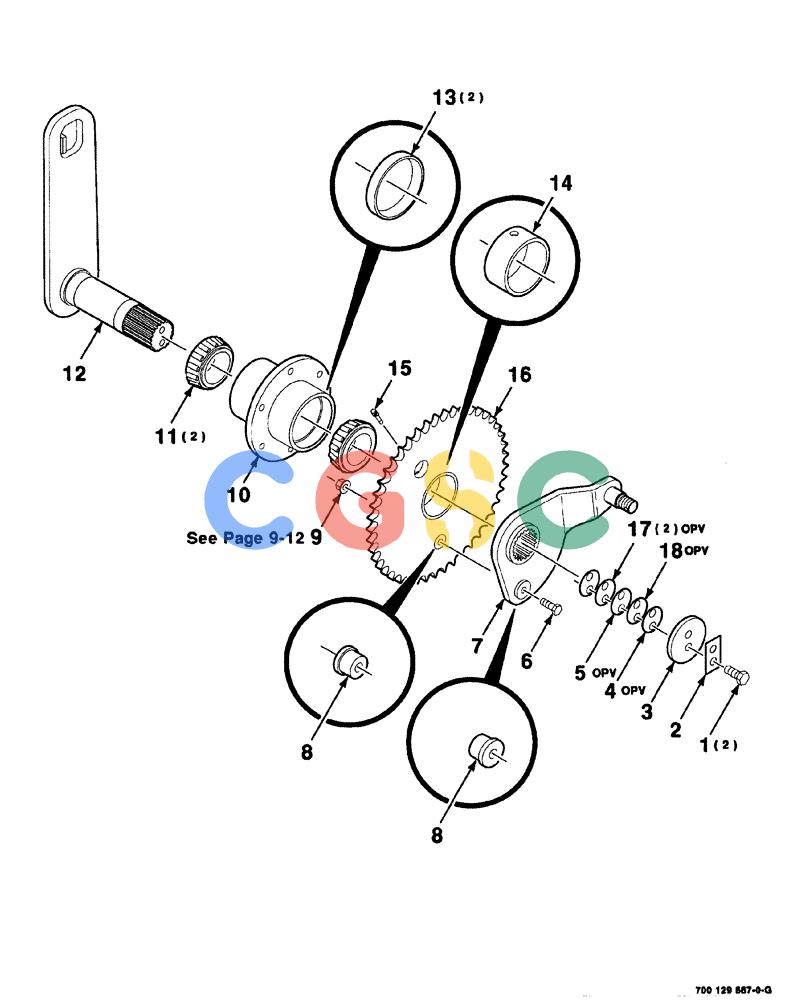

凯斯零件查询(8575) - CASE IH MID-SIZE RECTANGULAR BALER (NORTH AMERICA) (1/95-12/00) (02-032) - SHAFT AND SPROCKET ASSEMBLY Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
938 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
413-1024
|
[2] |
BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5
|
CAS
Superseded by part number: 88062
|
| 2. |
700113045
|
[1] |
LOCKING PLATE
|
CAS
TAB
|
| 3. |
700113044
|
[1] |
RETAINING PLATE
|
CAS
cap retainer
|
| 4. |
700707993
|
[1] |
SHIM
|
CAS
.020
|
| 5. |
700706060
|
[1] |
SHIM
|
CAS
.005
|
| 6. |
426-844
|
[1] |
BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 8
|
CAS
Superseded by part number: 86520614
|
| 7. |
700129669
|
[1] |
HUB
|
CAS
Includes: Ref. 8
|
| 8. |
6526081
|
[2] |
BUSHING
|
CAS
BOLT sleeve shear Superseded by part number: 706526081
|
| 9. |
231-5348
|
[1] |
FLANGE NUT,Flg, 1/2"-13
|
CAS
1/2-13 HFTLN GR/G Superseded by part number: 86521610
|
| 10. |
700123311
|
[1] |
HUB
|
CAS
ASSEMBLY, Includes: Ref. 13
|
| 11. |
700710545
|
[2] |
ROLLER BEARING,68.26mm ID x 22mm W
|
CAS
CONE
|
| 12. |
700153620
|
[1] |
ARM
|
HFI
WA
|
| 13. |
29214H
|
[2] |
BEARING CUP,110mm OD x 18.82mm W
|
IH
cup Superseded by part number: 163044
|
| 14. |
700123389
|
[1] |
BRONZE BUSHING
|
CAS
bronze
|
| 15. |
219-56
|
[1] |
LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF
|
CAS
1/8-27 x 90 Deg. ZERK
|
| 16. |
700129671
|
[1] |
SPROCKET ASSY.
|
CAS
45 tooth, Includes: Ref. 8 and 14
|
| 17. |
700706059
|
[2] |
SHIM
|
CAS
.003
|
| 18. |
700706061
|
[1] |
SHIM
|
CAS
.010
|
