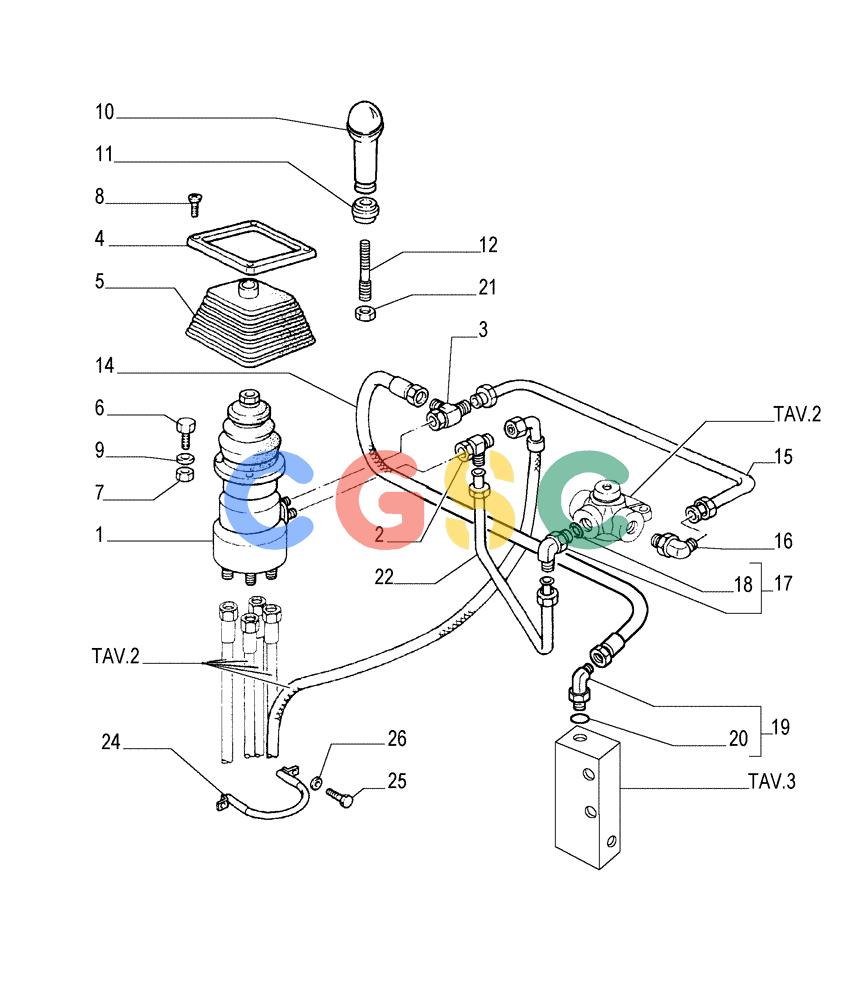

纽荷兰零件查询(FD175) - CRAWLER DOZER (N.A. VERSION)(S/N 061640 & AFTER) (1/93-) (1.224[01]) - TRANSMISSION OUTER CONTROLS New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
428 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 79112270 | [1] | MANIPULATOR | LEC- ASSY SEE TAV.4 |
| 2. | 79045833 | [1] | HYD CONNECTOR | LEC Superseded by part number: 70936759 |
| 3. | 79054269 | [1] | TEE | LEC |
| 4. | 79081280 | [1] | CAPPING | LEC |
| 5. | 79081248 | [1] | BOOT | LEC |
| 6. | 14305431 | [4] | HEX SOC SCREW,M6 x 25mm, Cl 10.9, Full Thd | LEC6X1X25 |
| 7. | 15896221 | [4] | NUT,Hex, M6, 5.20mm High, Cl 10 | ZED Superseded by part number: 86500688 |
| 8. | 13313417 | [4] | SCREW,Pozidriv Oval Hd, Csk, M6 x 25mm, Cl 5.8, Full Thd | IMO |
| 9. | 14496431 | [4] | WASHER,6.4mm ID x 12.5mm OD x 1.6mm Thk | LEC Superseded by part number: 86588450 |
| 10. | 79101994 | [1] | HANDLE GRIP | LEC |
| 11. | 79110877 | [1] | RING NUT | LEC |
| 12. | 79114734 | [1] | THREADED ROD | LEC |
| 14. | 76038831 | [1] | FLEXIBLE HOSE | LEC |
| 15. | 79096099 | [1] | RIGID TUBE,8 mm ID, 10 mm OD, 178.5, 58 mm Length | LEC |
| 16. | 79056626 | [1] | HYD CONNECTOR | LEC Superseded by part number: 79067019 |
| 17. | 79069455 | [1] | HYD CONNECTOR | LEC- ASSY |
| 18. | 70925081 | [1] | O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro | LEC Superseded by part number: 229317 |
| 19. | 79067050 | [1] | HYD CONNECTOR | LEC- ASSY |
| 20. | 14437785 | [1] | O-RING,11.3mm ID x 2.4mm | LEC |
| 21. | 10717421 | [1] | THIN NUT,Thin, M14 x 2, Cl 05 | MKT |
| 22. | 79096094 | [1] | RIGID TUBE | LEC |
| 24. | 76026397 | [1] | BRACKET | LEC |
| 25. | 16043231 | [2] | SCREW,Hex, M8 x 16mm, Cl 10.9, Full Thd | LEC |
| 26. | 14496531 | [2] | WASHER,8.4mm ID x 17mm OD x 1.6mm Thk | LEC Superseded by part number: 86624184 |
