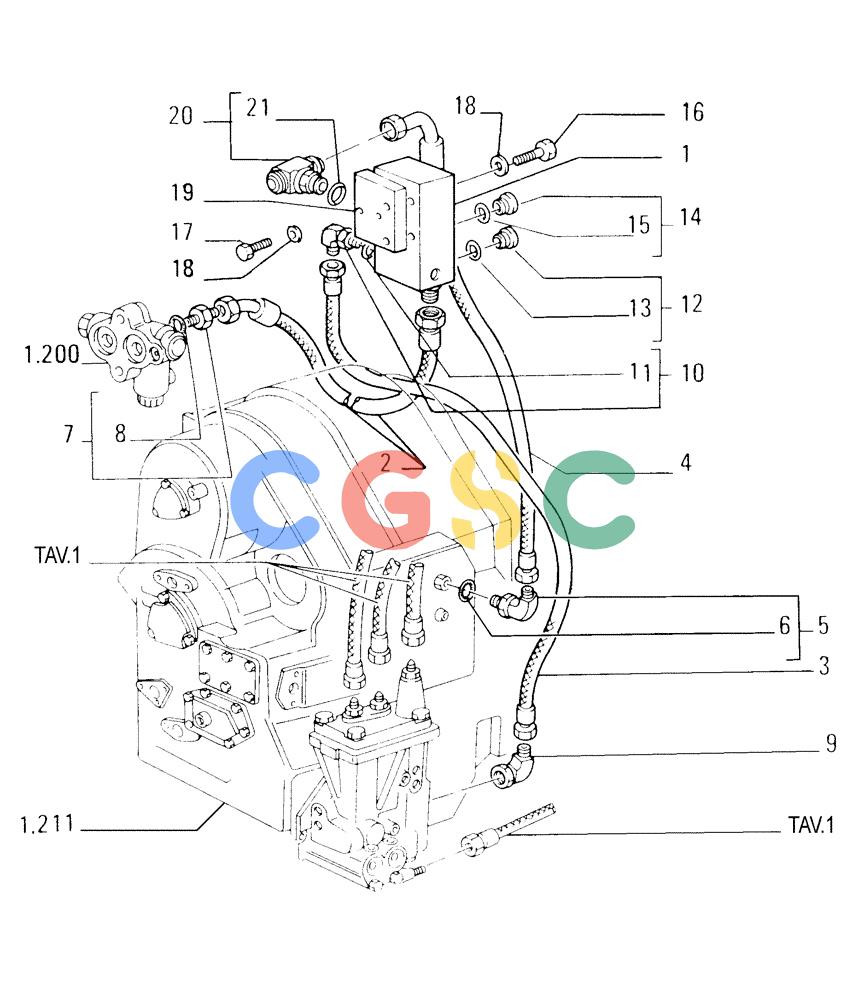

纽荷兰零件查询(FD175) - CRAWLER DOZER (N.A. VERSION)(S/N 061640 & AFTER) (1/93-) (1.224[03]) - TRANSMISSION OUTER CONTROLS New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
744 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 79109281 | [1] | HYDRAULIC VALVE | LEC- ASSY SEE TAV.6 |
| 2. | 79108173 | [1] | FLEXIBLE HOSE | LEC |
| 3. | 79092249 | [1] | FLEXIBLE HOSE | LEC |
| 4. | 79115109 | [1] | FLEXIBLE HOSE | LEC |
| 5. | 79067025 | [1] | ELBOW | LEC- ASSY |
| 7. | 79066942 | [1] | HYD CONNECTOR | LEC- ASSY |
| 9. | 79086872 | [1] | HYD CONNECTOR | LEC |
| 10. | 79067018 | [1] | 90 ELBOW | LEC- ASSY |
| 11. | 14437785 | [1] | O-RING,11.3mm ID x 2.4mm | LEC |
| 12. | 10118740 | [2] | PLUG,M14 x 1.5 x 15, Brass | LECAssy |
| 14. | 10119440 | [2] | PLUG,M18 x 1.5 x 16, Brass | LECAssy |
| 16. | 16044331 | [2] | SCREW,Hex, M8 x 1.25 x 55mm, Cl 10.9 | LEC |
| 17. | 16043431 | [2] | SCREW,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd | BHB Superseded by part number: 16605534 |
| 18. | 14496531 | [4] | WASHER,8.4mm ID x 17mm OD x 1.6mm Thk | LEC Superseded by part number: 86624184 |
| 19. | 79083695 | [1] | PLATE | LEC |
| 20. | 79115106 | [1] | 3 WAY CONNECTION | LEC- ASSY |
| 6. | 14438185 | [1] | O-RING,24mm ID x 3mm | JES |
| 8. | 14437985 | [1] | O-RING,15.3mm ID x 2.4mm | LEC |
