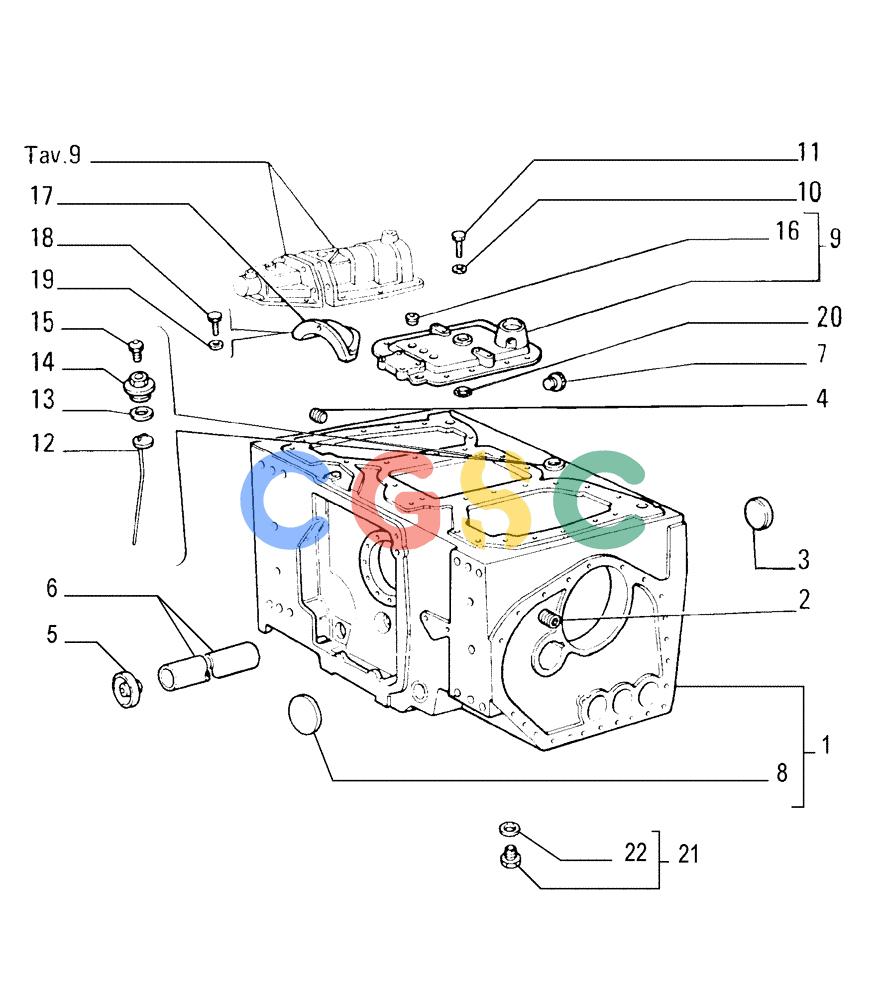

纽荷兰零件查询(FD175) - CRAWLER DOZER (N.A. VERSION)(S/N 061640 & AFTER) (1/93-) (1.277[01]) - REAR TRANSMISSION - CASE New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
816 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 79108738 | [1] | BOX | LEC- ASSY |
| 2. | 4968762 | [2] | DOWEL | LEC |
| 3. | 10150850 | [1] | PLUG | MKT Superseded by part number: 14325001 |
| 4. | 14324801 | [1] | PLUG | MKT12X1,5X13 Superseded by part number: 16997211 |
| 5. | 586720 | [1] | PLUG | LEC |
| 6. | 586721 | [1] | RIGID TUBE,52 mm ID, 56 mm OD, 508 mm Length | LEC |
| 7. | 4974232 | [26] | PLUG | LEC |
| 8. | 586719 | [3] | PLUG | LEC Superseded by part number: 75323268 |
| 9. | 79087779 | [1] | COVER | LEC- ASSY |
| 10. | 14496731 | [11] | WASHER,M12 x 24 x 2.5 Thk | LEC Superseded by part number: 895-11012 |
| 11. | 15540531 | [11] | SCREW,Hex, M12 x 1.25 x 35mm, Cl 10.9, Full Thd | IMO Superseded by part number: 75224970, 86642438 |
| 12. | 79111260 | [1] | DIPSTICK,379mm L | LEC |
| 13. | 10297085 | [1] | GASKET,2mm Thk | MKT40,3X48 |
| 14. | 79043966 | [1] | PLUG,M10 x 1.5 | LEC |
| 15. | 13415191 | [1] | BREATHER | LEC8X1,25X7 |
| 16. | 10269750 | [4] | PLUG | MKT18X1,5X11 |
| 17. | 4962648 | [1] | COVER | LEC |
| 18. | 15970731 | [3] | BOLT,Hex, M10 x 1.25 x 25mm, Cl 10.9, Full Thd | LEC |
| 19. | 14496631 | [3] | WASHER,10.5mm ID x 21mm OD x 2mm Thk | LEC Superseded by part number: 14496621 |
| 20. | 14457681 | [1] | O-RING,0.103" Thk x 0.862" ID, -118, Cl 7, 75 Duro | TTF |
| 21. | 10119040 | [2] | PLUG,M27 x 2 x 20, Brass | LECAssy |
| 22. | 14438185 | [1] | O-RING,24mm ID x 3mm | JES |
