纽荷兰零件查询(FD175) - CRAWLER DOZER (N.A. VERSION)(S/N 061640 & AFTER) (1/93-) (1.277[02]) - REAR TRANSMISSION - CASE New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
878 次

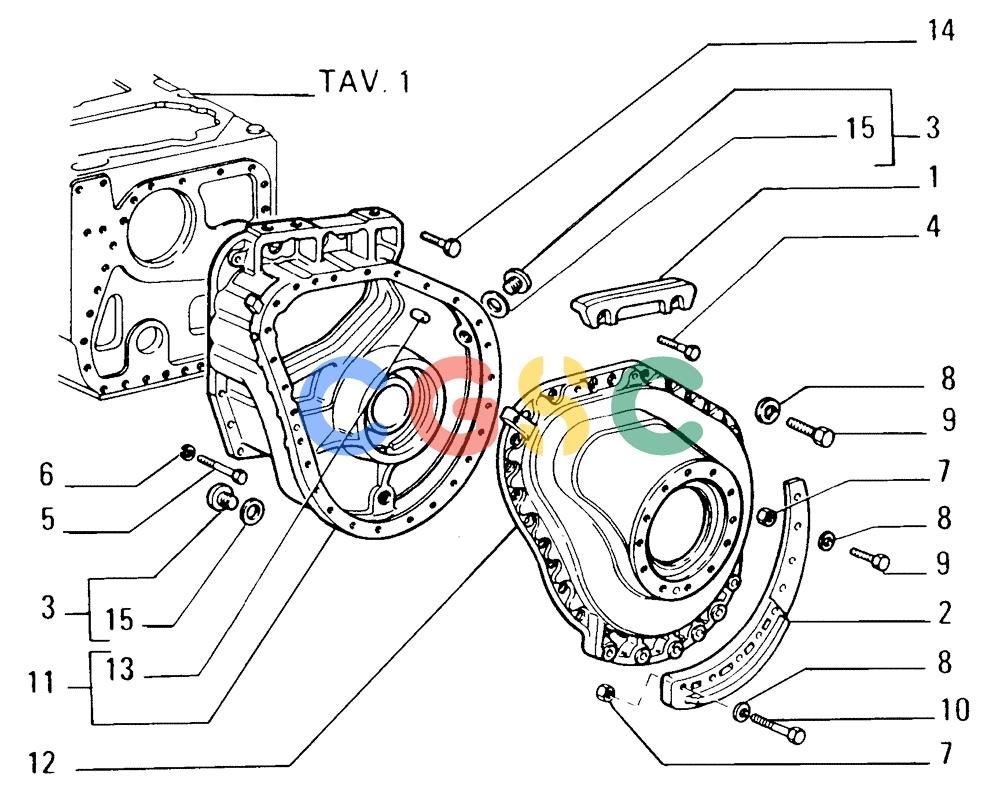

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 590329 | [2] | SLIDING PAD | LEC |
| 2. | 4981108 | [1] | GUARD | LEC- LEFT |
| 2. | 4981112 | [1] | GUARD | LEC- RIGHT |
| 3. | 10119140 | [8] | PLUG | LEC- ASSY 42X2X16 |
| 4. | 11255934 | [4] | BOLT,Hex, M14 x 1.5 x 40, 10.9, Full Thd | LEC Superseded by part number: 11255931 |
| 6. | 14496931 | [42] | WASHER,17mm ID x 30mm OD x 3mm Thk | IMO Superseded by part number: 86625266 |
| 8. | 14496831 | [72] | WASHER,15mm ID x 28mm OD x 2.5mm Thk | LEC14,4X28 |
| 9. | 11394334 | [62] | BOLT,Hex, M14 x 1.5 x 45, 8.8, Full Thd | LEC Superseded by part number: 11394331 |
| 10. | 15977534 | [10] | BOLT,Hex, M14 x 1.5 x 60mm, Cl 10.9 | TTF Superseded by part number: 15977531 |
| 11. | 76014373 | [1] | FINAL DRIVE HOUSING | LEC- LEFT ASSY |
| 11. | 76014375 | [1] | FINAL DRIVE HOUSING | LEC- RIGHT ASSY |
| 12. | 79031754 | [1] | COVER | LEC- LEFT |
| 12. | 79031755 | [1] | COVER | LEC- RIGHT |
| 13. | 79035992 | [3] | DOWEL | LEC Superseded by part number: 546500 |
| 14. | 14257934 | [8] | SCREW,M16 x 1.5 x 40mm | LEC16X1,5X40 Superseded by part number: 14257930 |
| 15. | 14438385 | [1] | O-RING,2.9mm Thk x 38.6mm ID, Cl 6, 90 Duro | LEC39MM ID x 3.0 Thk Superseded by part number: 86598105 |
| 5. | 11391534 | [42] | BOLT,Hex, M16 x 1.5 x 45, 10.9, Full Thd | TTF |
| 7. | 12164021 | [18] | NUT,Thick Hex, M14, 1.50mm Pitch, 11.00mm High, Cl 10, ZND | TTF Superseded by part number: |
