纽荷兰零件查询(FD175) - CRAWLER DOZER (N.A. VERSION)(S/N 061640 & AFTER) (1/93-) (1.277[08]) - BRAKES New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
404 次

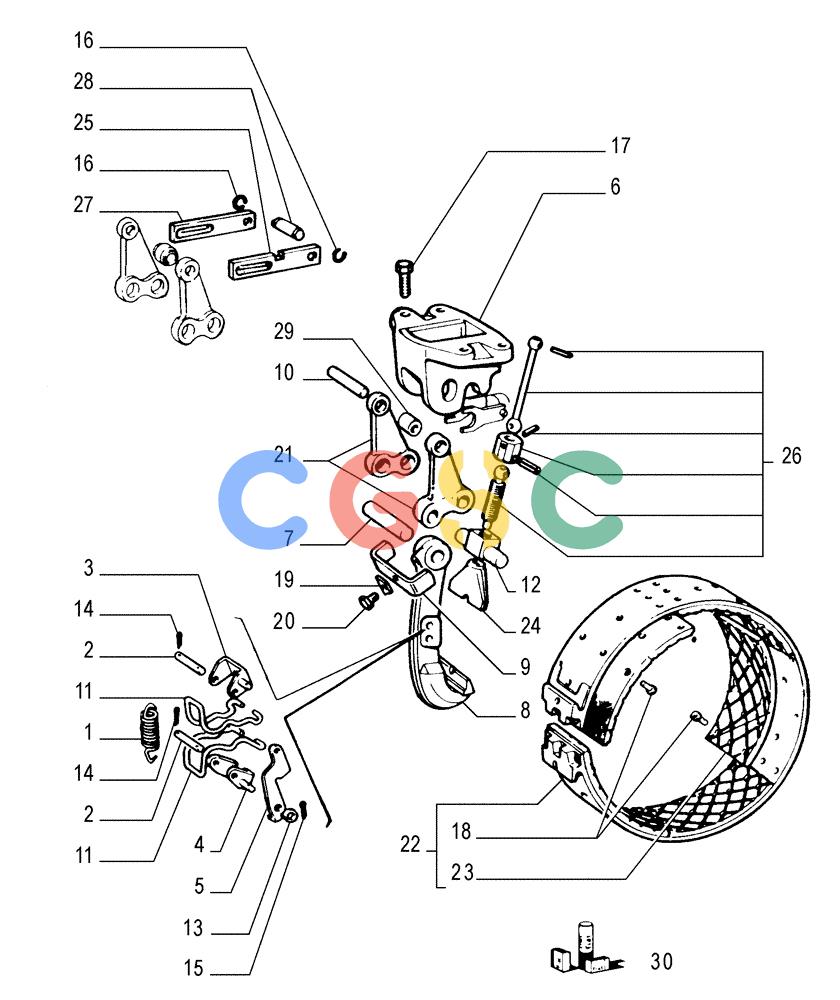

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 599296 | [2] | SPRING | LEC |
| 2. | 599299 | [4] | PIN,10mm OD x 57mm L | LEC |
| 3. | 599300 | [2] | YOKE | LEC |
| 4. | 599301 | [2] | YOKE | LEC |
| 5. | 599302 | [2] | | LEC Superseded by part number: BER599302, BER599302, LEC599302 |
| 6. | 599303 | [2] | SUPPORT | LEC |
| 7. | 599307 | [2] | PIN,24mm OD x 96mm L | LEC |
| 8. | 599308 | [2] | LEVER | LEC |
| 9. | 599309 | [2] | BRACKET | LEC |
| 10. | 4958134 | [2] | PIN | LEC |
| 11. | 4958201 | [4] | RETAINING WIRE | LEC |
| 12. | 4983613 | [2] | PIN,24mm OD x 96mm L | LEC |
| 13. | 14496531 | [2] | WASHER,8.4mm ID x 17mm OD x 1.6mm Thk | LEC Superseded by part number: 86624184 |
| 14. | 10733601 | [8] | COTTER PIN,M3.2 x 22 | TTF |
| 15. | 10734201 | [2] | COTTER PIN,M2 x 12 | TTF Superseded by part number: |
| 16. | 11066676 | [4] | SNAP RING,M18, Ext | NH Superseded by part number: 84021874 |
| 17. | 11255931 | [8] | BOLT,Hex, M14 x 1.5 x 40, 10.9, Full Thd | LEC |
| 18. | 13852540 | [50] | RIVET,6mm OD x 12mm L | LEC6X12 |
| 19. | 14198811 | [8] | LOCKING PLATE | LEC10,4X20 |
| 20. | 15970534 | [2] | BOLT,Hex, M10 x 1.25 x 20mm, Cl 10.9, Full Thd | LEC Superseded by part number: 15970531 |
| 21. | 79005063 | [4] | LEVER | LEC |
| 22. | 76047321 | [2] | BRAKE BAND | LEC- ASSY Superseded by part number: 76041806 |
| 23. | 76047410 | [5] | BRAKE LINING,214.15mm L x 90mm W x 6.5mm Thk | LEC |
| 24. | 79011455 | [2] | ROD-TIP | LEC |
| 25. | 79087717 | [2] | LINK/SHACKLE | LEC |
| 26. | 76032958 | [2] | ADJUSTMENT SCREW,M10 x 1.25 x 30mm, Cl 8.8 | LEC |
| 27. | 79071606 | [2] | LINK/SHACKLE | LEC |
| 28. | 79065799 | [2] | PIN,18mm OD x 46mm L | LEC |
| 29. | 79057000 | [2] | ROLLER | LEC |
| 30. | 76047419 | [1] | KIT | LEC- SEGMENT BRAKE Superseded by part number: 13852540, 76047410 |
