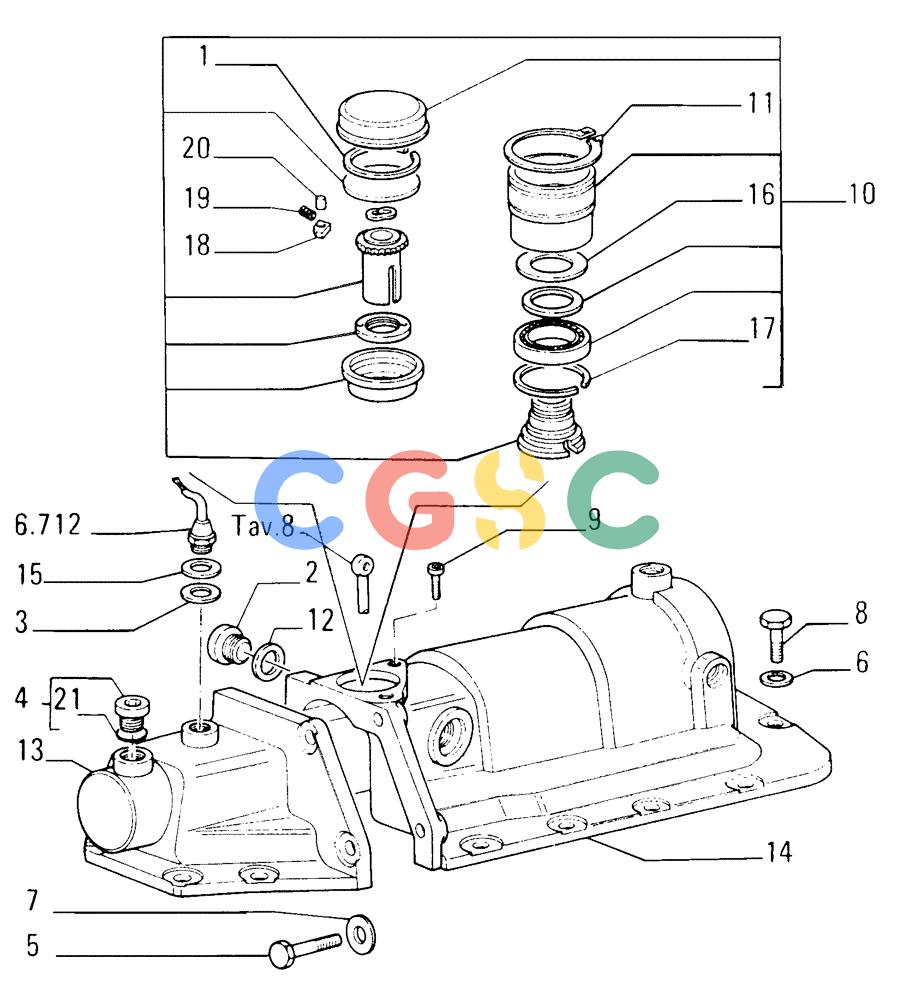

纽荷兰零件查询(FD175) - CRAWLER DOZER (N.A. VERSION)(S/N 061640 & AFTER) (1/93-) (1.277[09]) - BRAKES New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
283 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 11061276 | [1] | SNAP RING,M63, Int | LEC |
| 2. | 10276711 | [4] | PLUG | MKT35X1,5X13 Superseded by part number: 10276740 |
| 3. | 10279760 | [1] | SEALING WASHER,14.2mm ID x 20mm OD x 0.5mm Thk | JES |
| 4. | 10118740 | [4] | PLUG,M14 x 1.5 x 15, Brass | LECAssy |
| 5. | 11408334 | [6] | BOLT,Hex, M14 x 1.5 x 35, 10.9, Full Thd | TTF Superseded by part number: 11408331 |
| 6. | 14496731 | [30] | WASHER,M12 x 24 x 2.5 Thk | LEC Superseded by part number: 895-11012 |
| 7. | 14496931 | [6] | WASHER,17mm ID x 30mm OD x 3mm Thk | IMO Superseded by part number: 86625266 |
| 8. | 15540531 | [30] | SCREW,Hex, M12 x 1.25 x 35mm, Cl 10.9, Full Thd | IMO Superseded by part number: 75224970, 86642438 |
| 9. | 14306231 | [4] | HEX SOC SCREW,M8 x 1.25 x 16mm, Cl 10.9, Full Thd | LEC Superseded by part number: 14306221 |
| 10. | 76032956 | [2] | SPEED GOVERNOR | LEC- ASSY |
| 11. | 11070376 | [1] | SNAP RING,M70, Ext | BAS Superseded by part number: 300636 |
| 12. | 79086162 | [4] | SEAL,36.45mm ID x 44.6mm OD x 3.4mm Thk | LEC |
| 13. | 79086554 | [1] | COVER | LEC- RIGHT |
| 13. | 79086555 | [1] | COVER | LEC- LEFT |
| 14. | 79087786 | [1] | COVER | LEC- RIGHT |
| 14. | 79087787 | [1] | COVER | LEC- LEFT |
| 15. | 79086880 | [1] | SEAL,14.3mm ID x 20mm OD x 0.2mm Thk | LEC |
| 16. | 79099466 | [1] | WASHER,56mm OD x 1.5mm Thk | LEC |
| 17. | 79081965 | [1] | RING | LEC |
| 18. | 79084826 | [2] | BLOCK | LEC |
| 19. | 79071609 | [2] | SPRING | LEC |
| 20. | 79071789 | [1] | NEEDLE ROLLER | LEC |
| 21. | 14437785 | [1] | O-RING,11.3mm ID x 2.4mm | LEC |
