纽荷兰零件查询(FD175) - CRAWLER DOZER (N.A. VERSION)(S/N 061640 & AFTER) (1/93-) (1.277[10]) - BRAKES New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
503 次

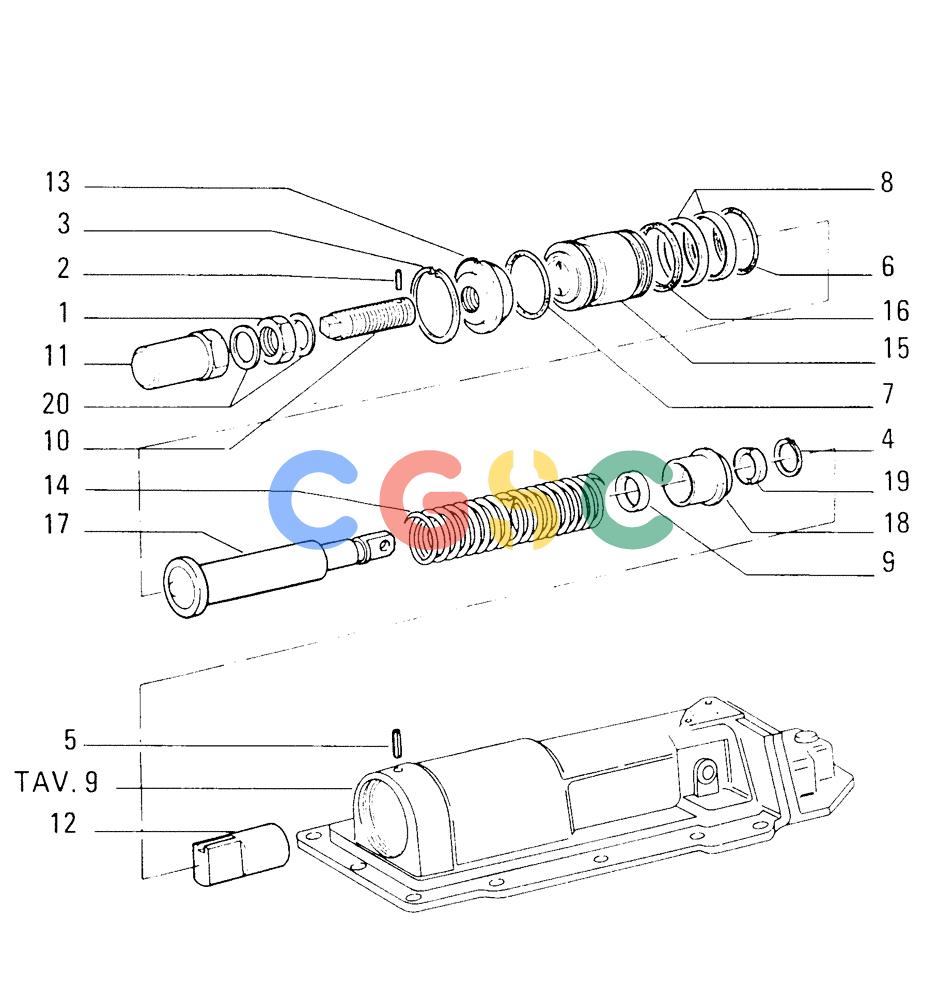

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76018167 | [2] | NUT | LEC |
| 2. | 10802801 | [2] | COTTER PIN,M2.5 x 25 | LEC |
| 3. | 11075476 | [2] | SNAP RING,M110, Int | TTF Superseded by part number: |
| 4. | 13398976 | [2] | SNAP RING,M40, Int | JES |
| 5. | 14163770 | [2] | LOCK PIN,M4 x 16, Slotted | MKT Superseded by part number: 190003909611 |
| 6. | 14472481 | [2] | O-RING,0.21" Thk x 3.475" ID, -341, Cl 7, 75 Duro | LEC5,33X88,26 Superseded by part number: 86625101 |
| 7. | 14472581 | [2] | O-RING,91.44mm ID x 4.02" OD x 5.33mm | LEC3,53X91,43 Superseded by part number: 70926289 |
| 8. | 79057012 | [4] | RING,94mm ID x 97mm OD x 12.8mm Thk | LEC |
| 9. | 79060366 | [2] | RING,34.84mm ID x 39mm OD x 9.6mm Thk | LEC |
| 10. | 79065801 | [2] | SCREW,M18 x 1.5 x 65mm, Cl 8.8 | LEC |
| 11. | 79065802 | [2] | PLUG | LEC |
| 12. | 79065807 | [2] | PISTON | LEC |
| 13. | 79065808 | [2] | COVER | LEC |
| 14. | 79077447 | [2] | SPRING | LEC |
| 15. | 79071596 | [2] | PISTON | LEC |
| 16. | 79071597 | [2] | SEAL,84.36mm ID x 99.6mm OD x 6.3mm Thk | LEC |
| 17. | 79080200 | [2] | ROD | LEC |
| 18. | 79080201 | [2] | GUIDE | LEC |
| 19. | 79080202 | [2] | ROCKER ARM COTTER | LEC |
| 20. | 79086481 | [4] | WASHER,18.7mm ID x 26mm OD x 1.5mm Thk | LEC |
