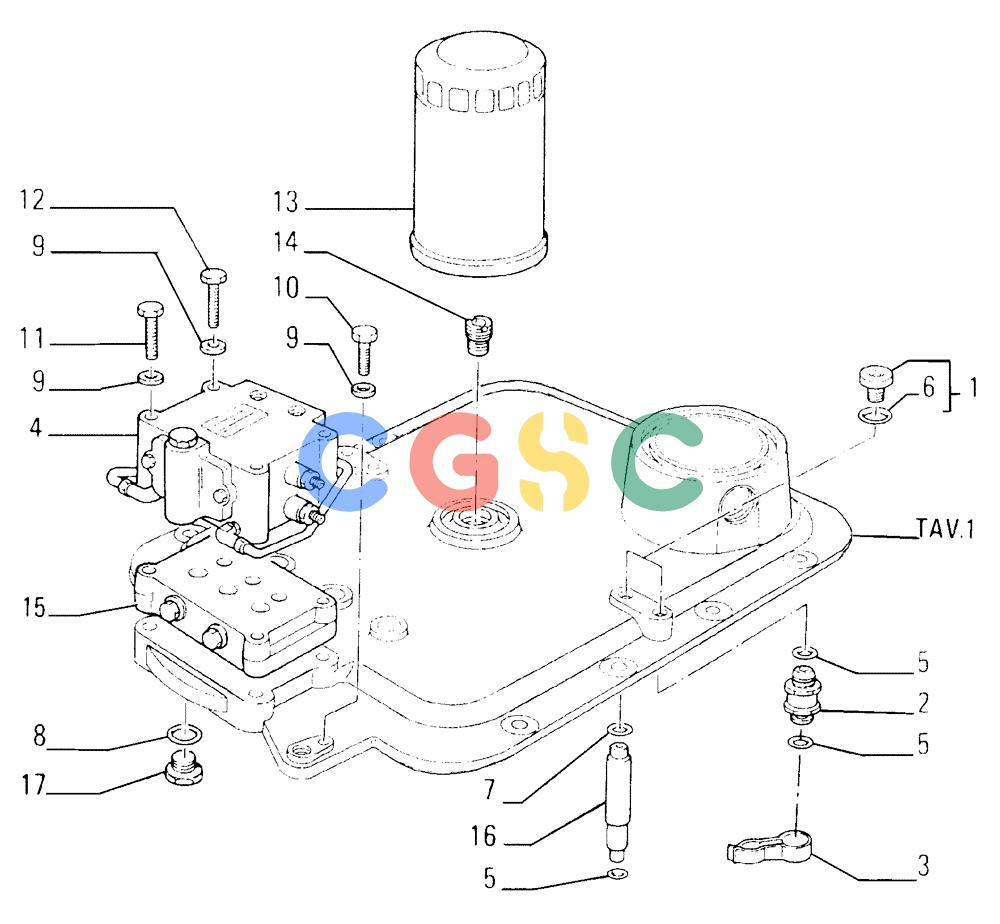

纽荷兰零件查询(FD175) - CRAWLER DOZER (N.A. VERSION)(S/N 061640 & AFTER) (1/93-) (1.277[12]) - REAR TRANSMISSION - COVER New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
738 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 10118840 | [4] | PLUG,M22 x 1.5 x 18, Brass | LECAssy |
| 2. | 76032195 | [2] | HYD CONNECTOR | LEC |
| 3. | 79097797 | [2] | SPRING | LEC |
| 4. | 79096196 | [1] | CONTROL VALVE | LEC- ASSY SEE TAV.15-16-17 |
| 10. | 15540934 | [1] | SCREW,Hex, M12 x 1.25 x 55mm, Cl 10.9 | JES Superseded by part number: 15540931 |
| 6. | 14438085 | [1] | O-RING,19.3mm ID x 2.4mm | JES |
| 8. | 5135738 | [4] | O-RING,0.103" Thk x 0.674" ID, -115, 80 Duro | TTF |
| 9. | 14496731 | [5] | WASHER,M12 x 24 x 2.5 Thk | LEC Superseded by part number: 895-11012 |
| 11. | 15542134 | [2] | BOLT,Hex, M12 x 1.25 x 150mm, Cl 10.9 | LEC |
| 12. | 15542534 | [2] | BOLT,Hex, M12 x 1.25 x 190mm, Cl 10.9 | LEC |
| 13. | 1930544 | [1] | ENGINE OIL FILTER | LEC |
| 14. | 79057050 | [1] | HYD CONNECTOR,1" - 12 x M22 x 1.5 | LEC |
| 15. | 79108161 | [1] | HYDRAULIC VALVE | LEC- ASSY SEE TAV.14 |
| 16. | 79073781 | [2] | HYD CONNECTOR | LEC |
| 17. | 79081943 | [4] | PLUG | LEC |
| 5. | 14456981 | [6] | O-RING,0.424" ID x 0.103" Width | TTF |
| 7. | 14457281 | [2] | O-RING,0.612" ID x 0.103" Width | TTF |
