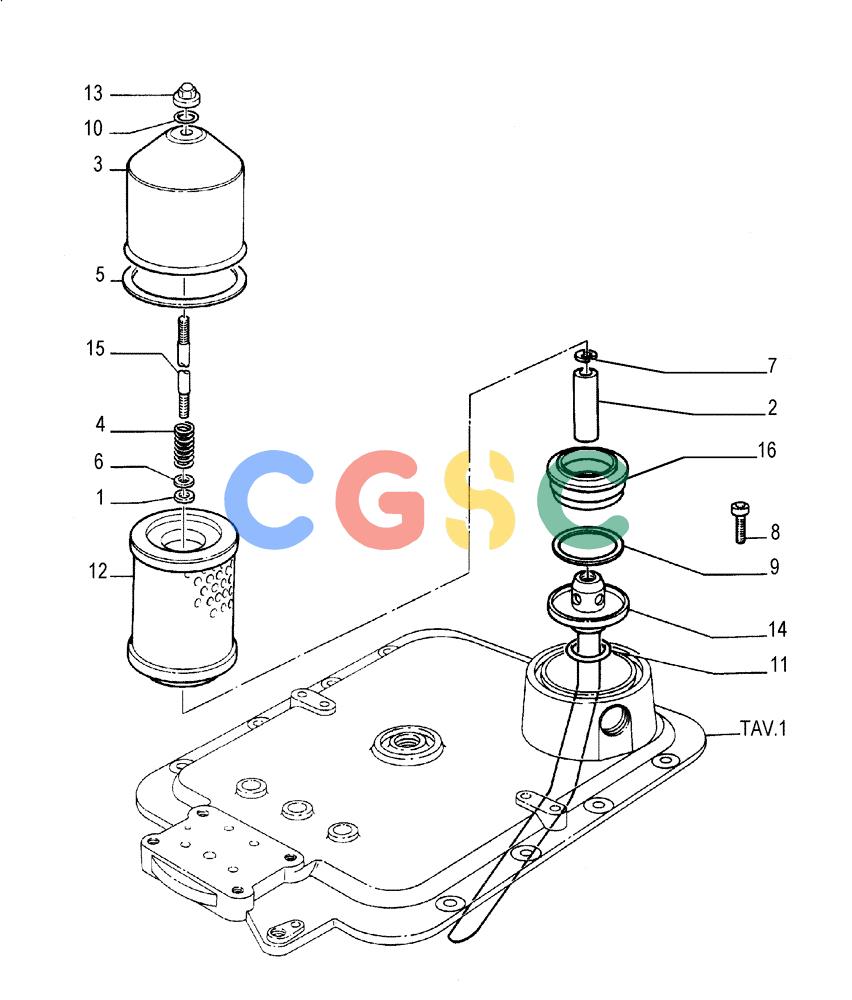

纽荷兰零件查询(FD175) - CRAWLER DOZER (N.A. VERSION)(S/N 061640 & AFTER) (1/93-) (1.277[13]) - REAR TRANSMISSION - OIL FILTER New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
648 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4964396 | [1] | OIL SEAL,9mm ID x 18mm OD x 3mm Thk | LEC |
| 2. | 4964869 | [1] | MAGNETIC CORE | MOD |
| 3. | 4979711 | [1] | FILTER BOWL | LEC |
| 4. | 4979713 | [1] | SPRING | LEC Superseded by part number: 75201466 |
| 5. | 4979714 | [1] | SEAL,113mm ID x 124mm OD x 2.5mm Thk | LEC |
| 6. | 76029554 | [1] | SPACER,10.5mm ID x 18mm OD x 14mm L | LEC |
| 7. | 13404476 | [2] | LOCKING RING | LEC9,6X1,2 |
| 8. | 14306234 | [3] | HEX SOC SCREW,M8 x 1.25 x 16mm, Cl 10.9, Full Thd | LEC Superseded by part number: 14306230 |
| 9. | 76042418 | [1] | SEAL,82mm ID x 71mm OD x 2mm Thk | LEC |
| 11. | 14464080 | [1] | O-RING,0.139" Thk x 1.48" ID, -222, Cl 5, 75 Duro | LEC |
| 12. | 1930543 | [1] | ELEMENT | LEC |
| 13. | 79038352 | [1] | NUT | LEC |
| 14. | 79111263 | [1] | RIGID TUBE | LEC |
| 15. | 79071769 | [1] | STUD | LEC |
| 16. | 76042427 | [1] | RING | LEC |
| 10. | 14457281 | [1] | O-RING,0.612" ID x 0.103" Width | TTF |
