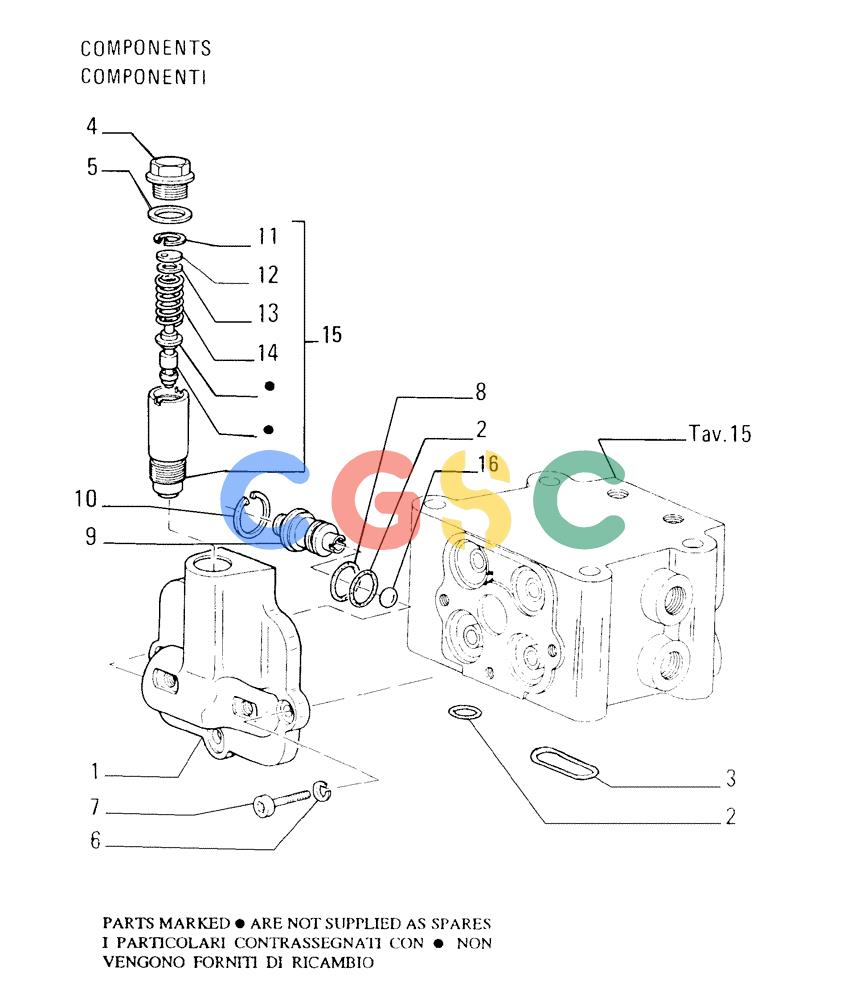

纽荷兰零件查询(FD175) - CRAWLER DOZER (N.A. VERSION)(S/N 061640 & AFTER) (1/93-) (1.277[16]) - REAR TRANSMISSION - CONTROL VALVE New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
978 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 79096075 | [1] | BODY | LEC |
| 3. | 14454881 | [1] | O-RING,44.17mm ID x 1.78mm Width | LEC |
| 4. | 10305171 | [1] | PLUG,M22 x 1.5 x 21 | TTF Superseded by part number: 16992611 |
| 5. | 79086322 | [1] | SEAL,22.7mm ID x 30mm OD x 2mm Thk | LEC |
| 6. | 10569370 | [3] | LOCK WASHER | TTF8,1X2 |
| 7. | 14306431 | [3] | HEX SOC SCREW,M8 x 1.25 x 25mm, Cl 10.9, Full Thd | LEC |
| 8. | 14453281 | [1] | O-RING,14mm ID x 1.78" Width | LEC |
| 9. | 79010456 | [1] | HYDRAULIC VALVE | LEC |
| 10. | 11057976 | [1] | SNAP RING,M21, Int | MKT |
| 11. | 11057176 | [1] | SNAP RING,M13, Int | LEC14,1X1 |
| 12. | 4972432 | [1] | WASHER,8mm ID x 12.5mm OD x 0.3mm Thk | LEC |
| 13. | 4972293 | [1] | WASHER | LEC |
| 14. | 79060361 | [1] | SPRING | LEC |
| 15. | 79060362 | [1] | HYDRAULIC VALVE | LEC- ASSY |
| 16. | 20063390 | [1] | BALL,8.73mm OD | TTF8,731 |
| 2. | 14453181 | [6] | O-RING,0.489" ID x 0.07" Width | TTF |
