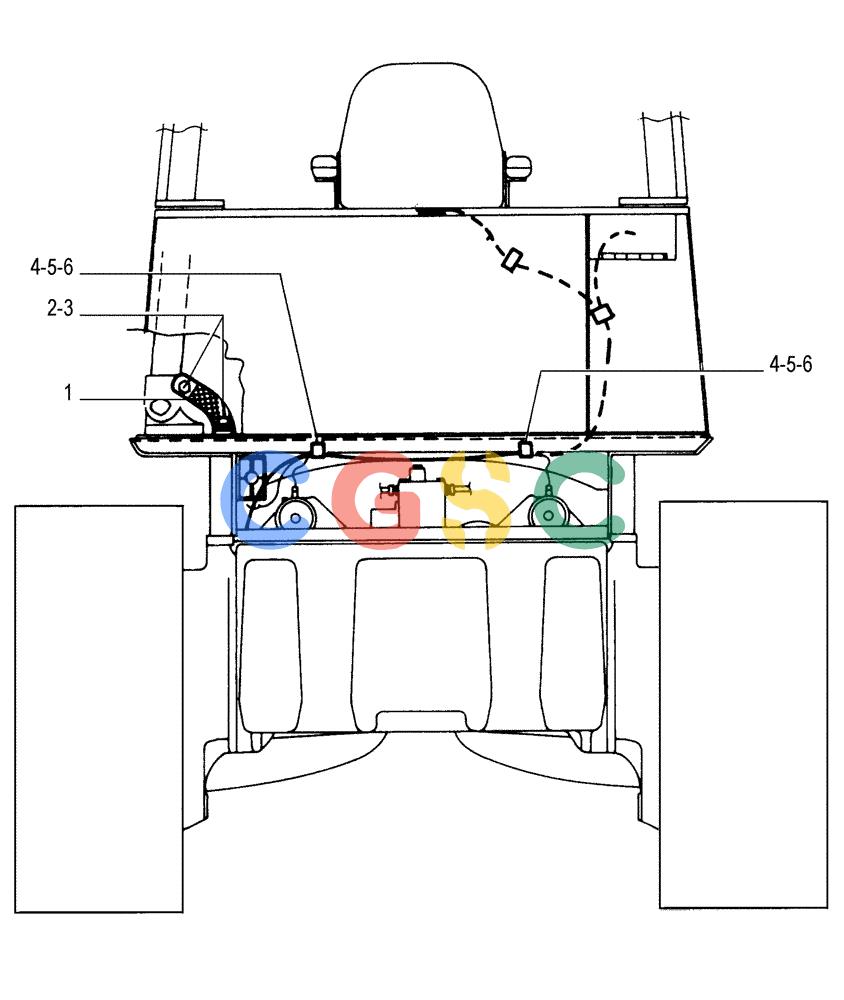

纽荷兰零件查询(FD175) - CRAWLER DOZER (N.A. VERSION)(S/N 061640 & AFTER) (1/93-) (6.711[03]) - ELECTRIC WIRING - ELECTRICAL SYSTEM New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
448 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 79020354 | [1] | GROUND STRAP | LEC- MASS |
| 2. | 10979331 | [2] | BOLT,Hex, M10 x 14mm, Cl 10.9, Full Thd | LEC Superseded by part number: 87547661 |
| 3. | 14496631 | [3] | WASHER,10.5mm ID x 21mm OD x 2mm Thk | LEC Superseded by part number: 14496621 |
| 4. | 12598374 | [2] | LOCK WASHER | TTF Superseded by part number: 86632601 |
| 5. | 10450790 | [2] | RETAINER COLLAR,22mm, Coat, 9mm Bolt Hole, P Type | LEC22X9 Superseded by part number: 10450990 |
| 6. | 16043031 | [2] | BOLT,Hex, M8 x 12mm, Cl 10.9, Full Thd | LEC Superseded by part number: 43231 |
