纽荷兰零件查询(FD175) - CRAWLER DOZER (N.A. VERSION)(S/N 061640 & AFTER) (1/93-) (6.712[02]) - ELECTRIC COMPONENTS New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
908 次

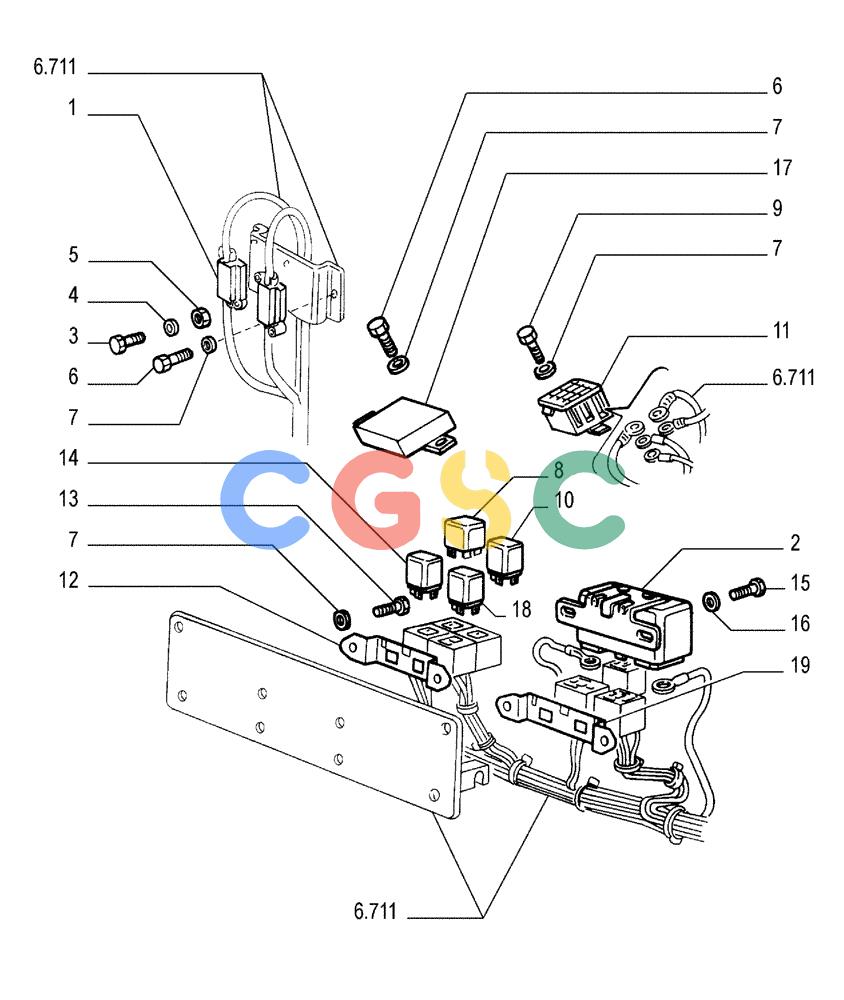

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 71403532 | [2] | FUSE | LECCABLE MACHINE Superseded by part number: 47465553, 76045724 |
| 2. | 79099760 | [1] | RELAY,24V, 90A | LEC |
| 3. | 10445021 | [4] | BOLT,Hex, M4 x 20mm, Cl 8.8, Full Thd | TTF Superseded by part number: 412255 |
| 4. | 12642821 | [4] | WASHER,4.15mm ID x 12mm OD x 1mm Thk | IMO Superseded by part number: 12642801 |
| 5. | 12574021 | [4] | NUT,M4 x .7, Cl 10 | LEC Superseded by part number: 12574011 |
| 6. | 10902031 | [6] | BOLT,Hex, M6 x 12mm, Cl 10.9 | LEC Superseded by part number: 86508616 |
| 7. | 14496431 | [10] | WASHER,6.4mm ID x 12.5mm OD x 1.6mm Thk | LEC Superseded by part number: 86588450 |
| 8. | 79083312 | [1] | RELAY,3A | LEC- DIODES |
| 9. | 10902131 | [1] | SCREW,Hex, M6 x 14mm, Cl 10.9, Full Thd | LEC |
| 10. | 79098184 | [1] | RELAY | LEC- UTILITIES 24V-50A |
| 11. | 79102105 | [1] | BOX | LEC Superseded by part number: 87616204 |
| 12. | 79068201 | [3] | BRACKET | LEC |
| 13. | 15896221 | [6] | NUT,Hex, M6, 5.20mm High, Cl 10 | ZED Superseded by part number: 86500688 |
| 14. | 79070487 | [2] | RELAY,24V, 10A | LEC24V-10A |
| 15. | 13274017 | [2] | SCREW,Pozidriv Pan Hd, M5 x 12mm | LEC5X12 |
| 16. | 10519301 | [2] | WASHER,5.3mm ID x 9.55mm OD x 1mm Thk | BHB Superseded by part number: 17094504 |
| 17. | 99484737 | [1] | ECU | TOR |
| 18. | 76052657 | [1] | TIMER | LEC |
| 19. | 79110386 | [1] | BRACKET | LEC |
