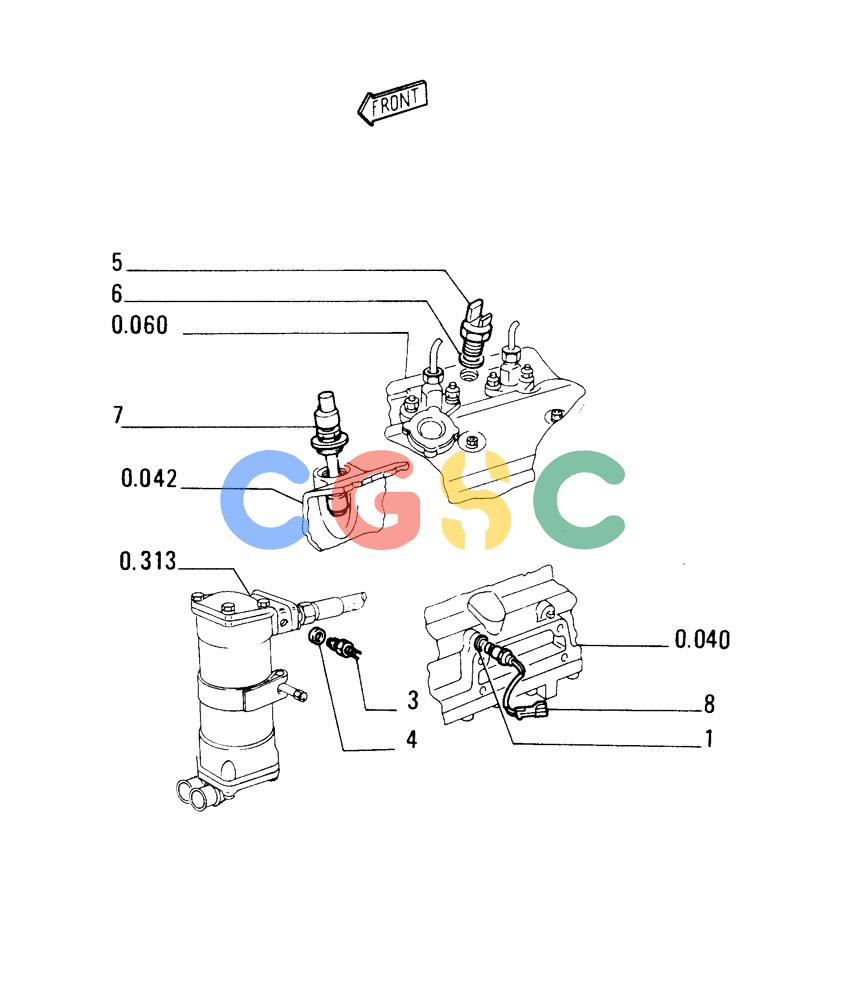

纽荷兰零件查询(FD175) - CRAWLER DOZER (N.A. VERSION)(S/N 061640 & AFTER) (1/93-) (6.712[06]) - ELECTRIC COMPONENTS New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
191 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 79108652 | [1] | HYD CONNECTOR | LEC |
| 2. | 79108798 | [1] | SENDER UNIT | LEC |
| 3. | 76032582 | [1] | THERMOSTATIC SWITCH | LECTRANS. FLUID TEMPERATURE |
| 4. | 10257060 | [1] | SEALING WASHER,16.3mm ID x 22mm OD x 1.5mm Thk | BHB Superseded by part number: 16508260 |
| 5. | 76032581 | [1] | THERMOSTATIC SWITCH | LECENGINE COOLANT TEMPERATURE |
| 6. | 10279560 | [1] | SEALING WASHER,22.3mm ID x 28mm OD x 1mm Thk | TOR |
| 7. | 79102088 | [1] | LEVEL GAUGE | LECENGINE OIL LEVEL Superseded by part number: 5146830, 87371193 |
| 8. | 79102092 | [1] | PRESSURE SWITCH | LEC0,4 BAR |
