纽荷兰零件查询(FD175) - CRAWLER DOZER (N.A. VERSION)(S/N 061640 & AFTER) (1/93-) (6.712[07]) - ELECTRIC COMPONENTS New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
272 次

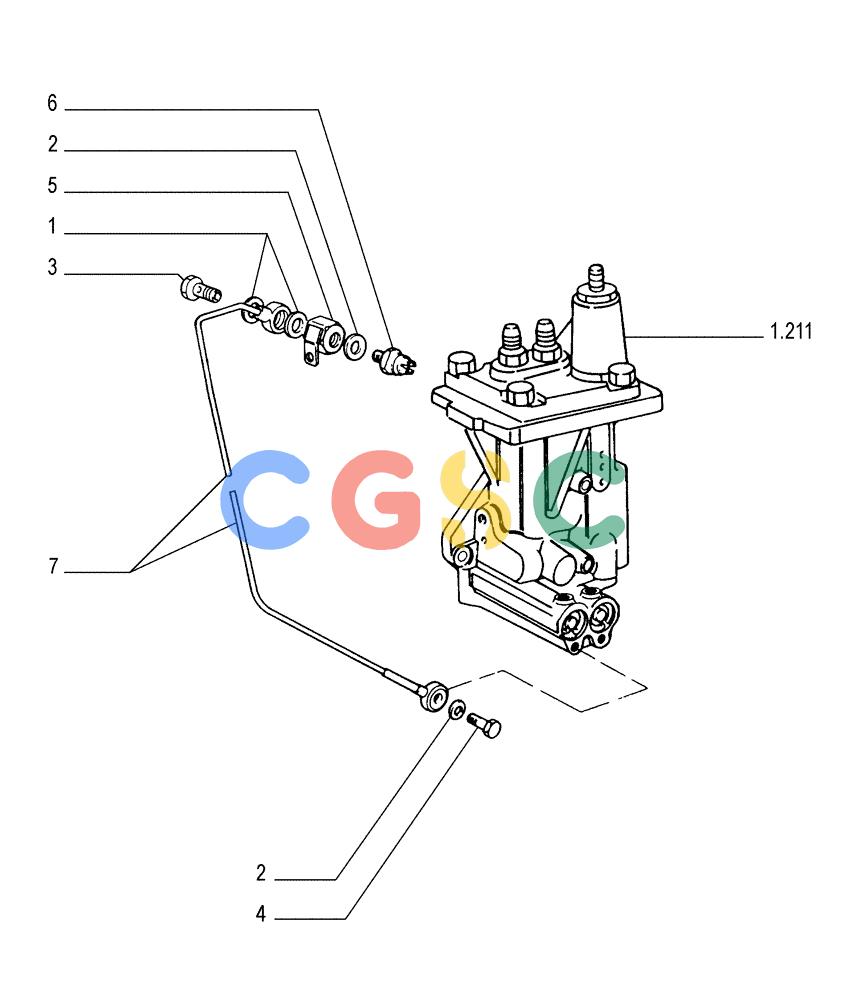

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 10260060 | [2] | SEALING WASHER,8.2mm ID x 14mm OD x 1mm Thk | TTF |
| 2. | 4858606 | [2] | SEAL,10.2mm ID x 16mm OD x 1mm Thk | TTF |
| 3. | 11903714 | [1] | BANJO BOLT,M8 x 1.25 x 16mm | LEC Superseded by part number: 11903711 |
| 4. | 11903814 | [1] | BANJO BOLT,M10 x 1.25 x 19mm | LEC10X1,25X19 Superseded by part number: 4864080 |
| 5. | 79107258 | [1] | SUPPORT | LEC |
| 6. | 79102094 | [1] | PRESSURE SWITCH | LECBRAKE LIGHT- |
| 7. | 79087201 | [1] | RIGID TUBE,2.5 mm ID, 4 mm OD, 500 mm Length | LEC |
