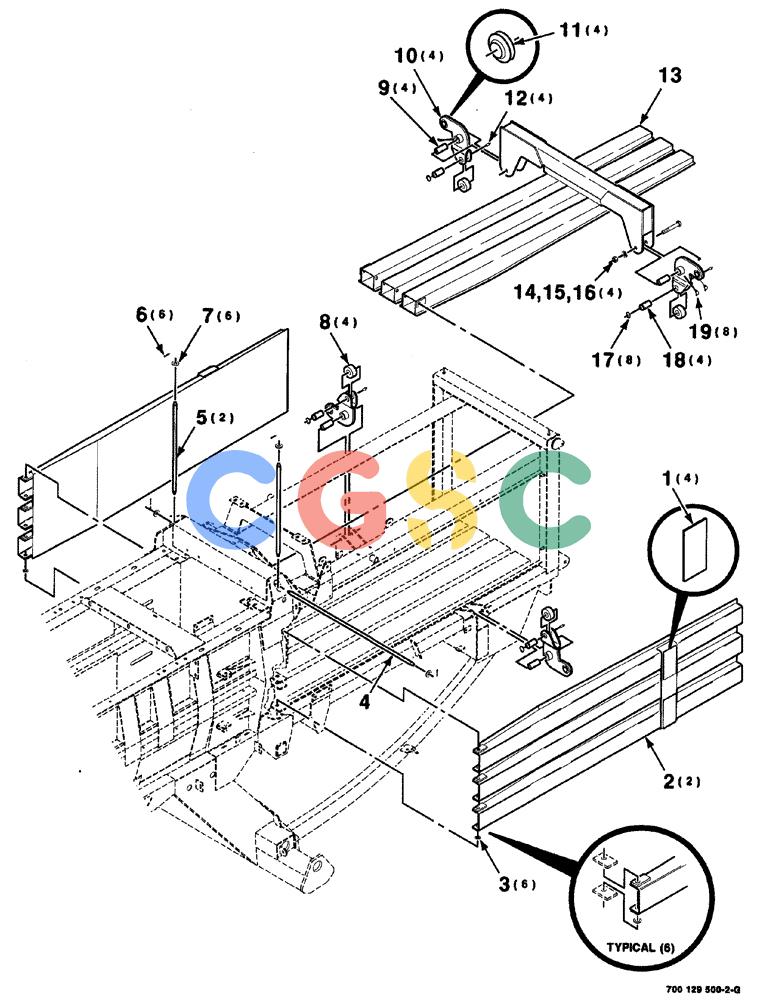

凯斯零件查询(8575) - CASE IH MID-SIZE RECTANGULAR BALER (NORTH AMERICA) (1/95-12/00) (07-004) - BALE DENSITY DOORS AND ARMS ASSEMBLY Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
789 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
700123706
|
[4] |
LARGE PLATE
|
CAS
PLATE, LARGE
|
| 2. |
700123700
|
[2] |
DOOR
|
CAS
WA side, Includes: Ref. 1
|
| 3. |
95-81182
|
[6] |
WASHER,0.81" ID x 1.25" OD x 0.07" Thk
|
CAS
3/4 x 14 gauge NRMB
|
| 4. |
700123710
|
[1] |
PIN
|
CAS
top
|
| 5. |
700123709
|
[2] |
PIN
|
CAS
side
|
| 6. |
432-1620
|
[6] |
COTTER PIN,1/4" x 1 1/4"
|
CAS
Superseded by part number: 87402
|
| 7. |
705566
|
[6] |
WASHER
|
IH
hardened plain, 3/4
|
| 8. |
700113614
|
[4] |
ROLLER
|
CAS
|
| 9. |
700123697
|
[4] |
BUSHING
|
CAS
|
| 10. |
700123720
|
[4] |
CRANK
|
CAS
WA bell, Includes: Ref. 11
|
| 11. |
700706269
|
[4] |
BALL JOINT
|
CAS
JOINT ball
|
| 12. |
219-8
|
[4] |
LUBE NIPPLE,1/4" - 28 NPTF
|
CAS
Superseded by part number: 87414
|
| 13. |
700123712
|
[1] |
DOOR
|
CAS
WA upper
|
| 14. |
413-1280
|
[4] |
BOLT,Hex, 3/4" - 10 x 5", Gr 5
|
CAS
Superseded by part number: 88421
|
| 15. |
492-11075
|
[4] |
LOCK WASHER,3/4"
|
CAS
3/4" Superseded by part number: 87340
|
| 16. |
425-1012
|
[4] |
NUT,3/4"-10, G5
|
CAS
Superseded by part number: 280954
|
| 17. |
103-16125
|
[8] |
SNAP RING,#125, Ext
|
CAS
Superseded by part number: 86625148
|
| 18. |
700123699
|
[4] |
PIN
|
CAS
|
| 19. |
219-90
|
[8] |
LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF
|
CAS
ZERK, 1/4-28 x 45 Deg. Superseded by part number: 87569
|
