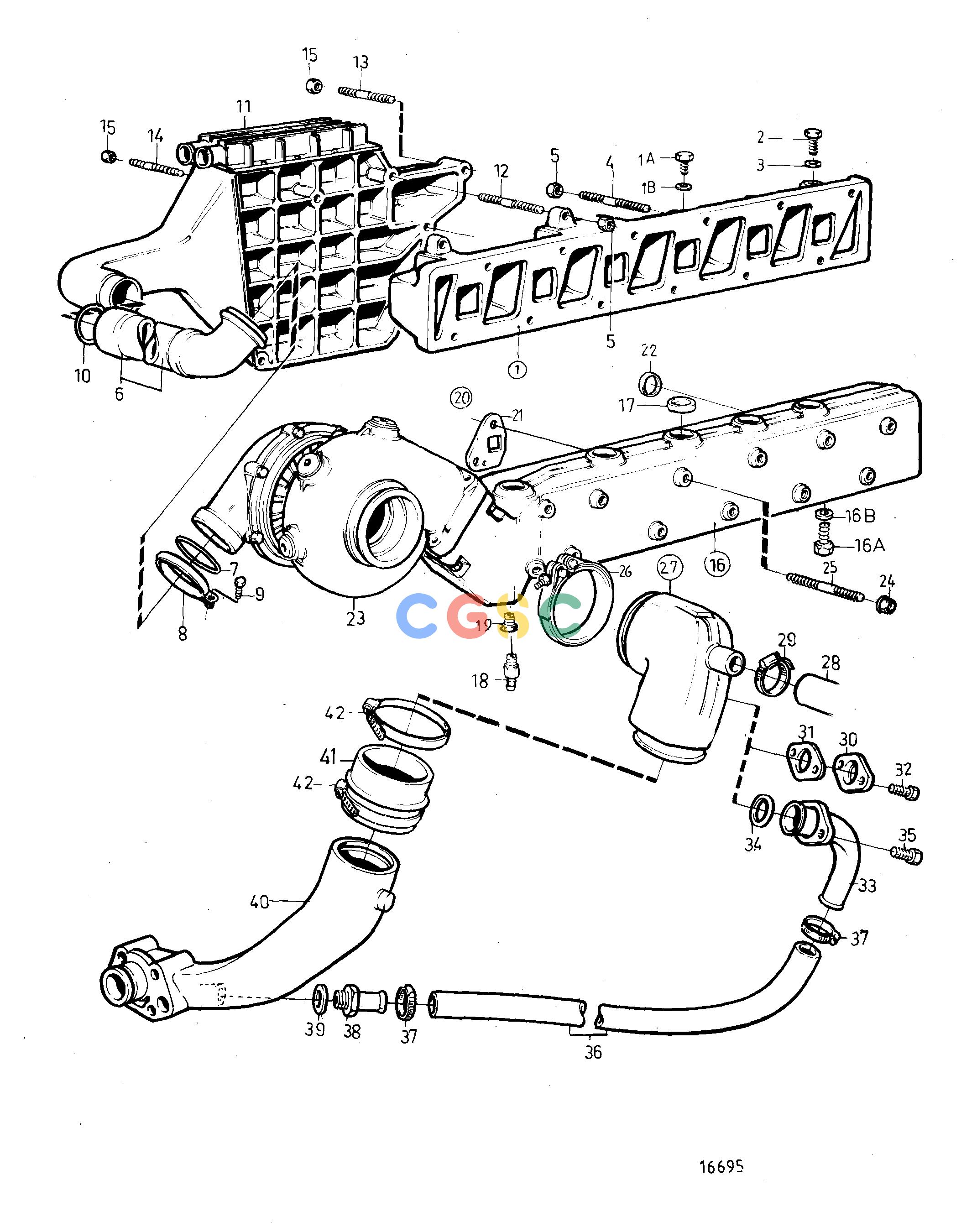

沃尔沃零件查询KAD42P-A; KAMD42P-A; HS1AIntake and Exhaust SystemInduction and Exhaust Manifold: BEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
618 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
859300
|
[1] |
Inlet pipe
|
|
| 1A. |
960634
|
[4] |
Plug
|
|
| 1B. |
947627
|
[4] |
Gasket
|
|
| 2. |
960632
|
[1] |
Plug
|
M18x12
|
| 2. |
960631
|
[1] |
Plug
|
M16x12
|
| 3. |
947624
|
[1] |
Gasket
|
18x22
|
| 3. |
11996
|
[1] |
Gasket
|
16x22
|
| 4. |
980226
|
[8] |
Stud
|
L=50mm
|
| 4. |
980227
|
[2] |
Stud
|
L=110mm
|
| 5. |
945408
|
[10] |
Flange nut
|
|
| 6. |
838693
|
[1] |
Connecting pipe
|
|
| 7. |
967944
|
[1] |
O-ring
|
|
| 8. |
838864
|
[1] |
V-clamp
|
|
| 9. |
947542
|
[1] |
Flange screw
|
|
| 10. |
864723
|
[1] |
Sealing ring
|
|
| 11. |
|
|
|
|
| 12. |
953049
|
[2] |
Stud
|
L=50mm
|
| 13. |
980227
|
[1] |
Stud
|
L=110mm
|
| 14. |
981440
|
[1] |
Stud
|
L=185mm
|
| 15. |
945408
|
[4] |
Flange nut
|
|
| 16. |
877067
|
[1] |
Exhaust pipe
|
(876823), (861620), Replaced by 3581406
|
| 16A. |
960632
|
[1] |
Plug
|
For engines with temp. sensor mounted on thermostat housing., M18x12
|
| 16. |
960631
|
[1] |
Plug
|
M16x12
|
| 16B. |
947624
|
[1] |
Gasket
|
18x22
|
| 16. |
11996
|
[1] |
Gasket
|
16x22
|
| 17. |
946780
|
[11] |
Cap plug
|
|
| 18. |
949918
|
[1] |
Shut-off cock
|
Late type
|
| 19. |
861551
|
[1] |
Plug
|
Early type
|
| 20. |
876144
|
[3] |
Gasket kit
|
|
| 21. |
838673
|
[6] |
Gasket
|
Repl by 876144
|
| 22. |
838766
|
[1] |
Sealing ring
|
|
| 23. |
|
|
|
|
| 24. |
971095
|
[12] |
Flange nut
|
|
| 25. |
953001
|
[2] |
Stud
|
L=120mm
|
| 25. |
953002
|
[5] |
Stud
|
For later version of expansion tank., L=125mm
|
| 25. |
953003
|
[2] |
Stud
|
For later version of expansion tank., L=130mm
|
| 25. |
953005
|
[2] |
Stud
|
For later version of expansion tank., L=140mm
|
| 25. |
953007
|
[1] |
Stud
|
For earlier version of expansion tank., L=150mm
|
| 25. |
17378
|
[1] |
Stud
|
L=170mm
|
| 26. |
842993
|
[1] |
V-clamp
|
|
| 27. |
860656
|
[1] |
Pipe elbow
|
D=32mm, repl by 861289
|
| 27. |
861289
|
[1] |
Exhaust pipe elbow
|
D=38mm
|
| 28. |
861278
|
[1] |
Hose
|
Heat exchanger-exhaust pipe elbow., I.D=32mm, for 860656
|
| 28. |
3581066
|
[1] |
Hose
|
Heat exchanger-exhaust pipe elbow., I.D=38mm, for 861289
|
| 29. |
994561
|
[1] |
Hose clamp
|
For 860656
|
| 29. |
994562
|
[1] |
Hose clamp
|
For 861289
|
| 33. |
844258
|
[1] |
Coolant pipe
|
|
| 34. |
842913
|
[1] |
Sealing ring
|
|
| 35. |
946544
|
[2] |
Flange screw
|
|
| 36. |
944386
|
[1] |
Rubber hose
|
L=720mm
|
| 37. |
994560
|
[2] |
Hose clamp
|
|
| 38. |
873221
|
[1] |
Nipple
|
|
| 39. |
958228
|
[1] |
O-ring
|
|
| 40. |
7734180_091
|
|
Exhaust pipe elbow
|
|
| 41. |
860396
|
[1] |
Exhaust hose
|
|
| 42. |
981239
|
[4] |
Hose clamp
|
|
