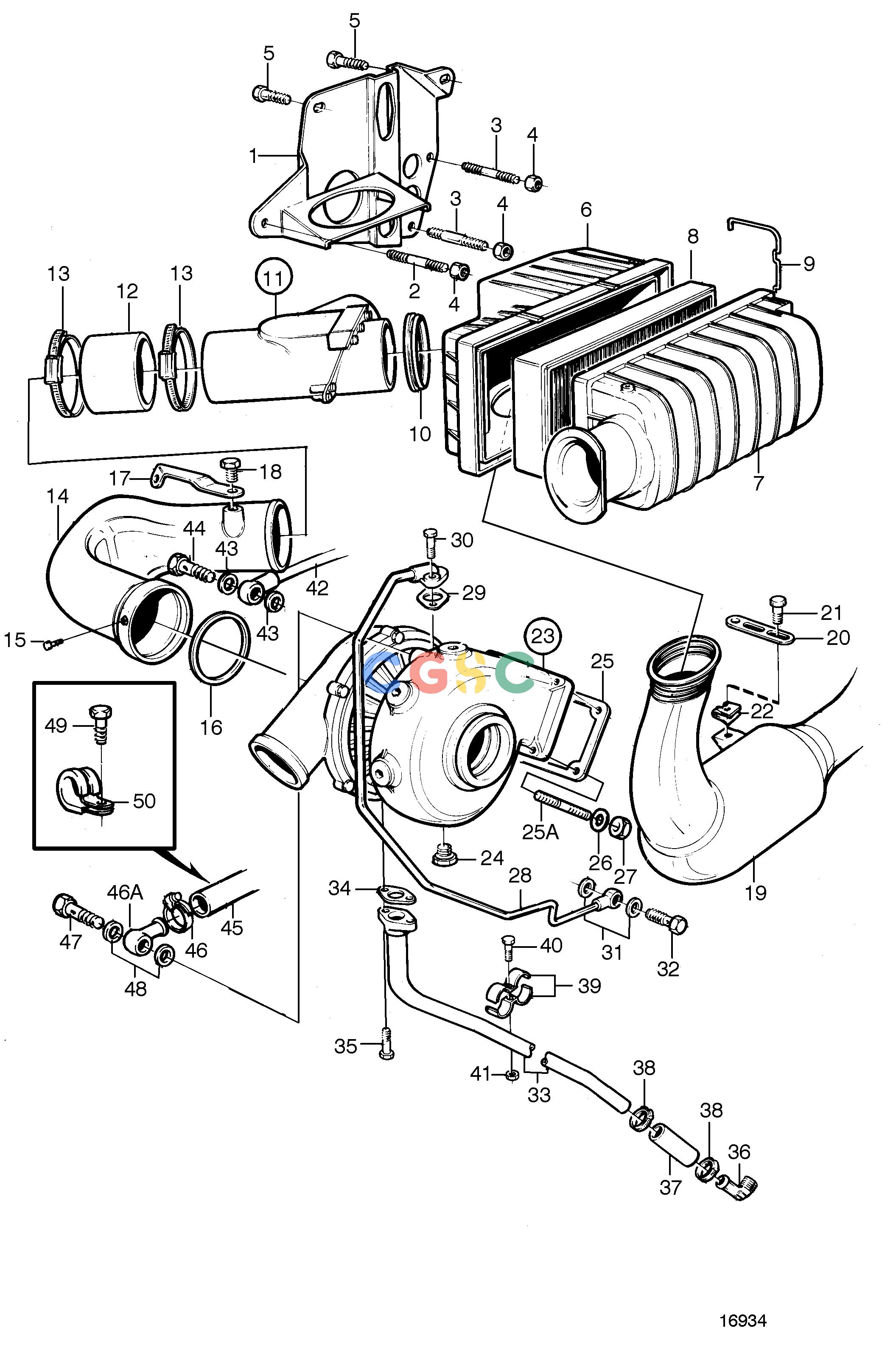

沃尔沃零件查询KAD42P-A; KAMD42P-A; HS1AIntake and Exhaust SystemTurbocharger and Air FilterEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
635 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
860397
|
[1] |
Bracket
|
|
| 2. |
953005
|
[1] |
Stud
|
L=140mm
|
| 3. |
953002
|
[2] |
Stud
|
L=125mm
|
| 4. |
971095
|
[3] |
Flange nut
|
|
| 5. |
946544
|
[2] |
Flange screw
|
|
| 6. |
877416
|
[1] |
Air cleaner
|
|
| 7. |
860798
|
[1] |
Cap
|
|
| 8. |
876185
|
[1] |
Air filter insert
|
|
| 9. |
860799
|
[2] |
Clip
|
|
| 10. |
860504
|
[1] |
Sealing ring
|
|
| 11. |
860402
|
[1] |
Non-return valve
|
Repl by 3581019
|
| 11. |
3581019
|
[1] |
Non-return valve
|
|
| 12. |
861092
|
[1] |
Hose
|
|
| 13. |
872531
|
[2] |
Hose clamp
|
|
| 14. |
860401
|
[1] |
Pipe
|
|
| 15. |
941792
|
[2] |
Hex. socket screw
|
|
| 16. |
976044
|
[1] |
O-ring
|
|
| 17. |
860709
|
[1] |
Bracket
|
|
| 18. |
946934
|
[1] |
Flange screw
|
|
| 19. |
860389
|
[1] |
Hose
|
Air filter-Compressor.
|
| 20. |
965537
|
[1] |
Bracket
|
|
| 21. |
965355
|
[1] |
Hexagon screw
|
|
| 22. |
945626
|
[1] |
Spring nut
|
|
| 23. |
3802070
|
[1] |
Turbocharger
|
|
| 24. |
861551
|
[1] |
Plug
|
|
| 25. |
3582676
|
[1] |
Gasket kit
|
|
| 25A. |
479972
|
[4] |
Stud
|
|
| 26. |
955895
|
[4] |
Washer
|
|
| 27. |
940183
|
[4] |
Hexagon nut
|
|
| 28. |
838869
|
[1] |
Oil pressure pipe
|
|
| 29. |
420641
|
[1] |
Plane gasket
|
|
| 30. |
945444
|
[1] |
Flange screw
|
L=25mm
|
| 30. |
946671
|
[1] |
Flange screw
|
L=30mm
|
| 31. |
969011
|
[2] |
Gasket
|
|
| 32. |
25167
|
[1] |
Hollow screw
|
|
| 33. |
838820
|
[1] |
Oil return pipe
|
|
| 34. |
860105
|
[1] |
Gasket
|
|
| 35. |
945444
|
[2] |
Flange screw
|
|
| 36. |
983105
|
[1] |
Hose nipple
|
|
| 37. |
466328
|
[1] |
Hose
|
|
| 38. |
994559
|
[2] |
Hose clamp
|
|
| 39. |
820851
|
[2] |
Clamp
|
|
| 40. |
946544
|
[1] |
Flange screw
|
|
| 41. |
945407
|
[1] |
Flange nut
|
|
| 42. |
860215
|
[1] |
Air vent hose
|
Turbo-thermostat housing., For earlier version of expansion tank.
|
| 43. |
11994
|
[2] |
Gasket
|
|
| 44. |
969299
|
[1] |
Hollow screw
|
|
| 45. |
942700
|
[1] |
Hose
|
Expansion tank-Turbo., For later version of expansion tank., L=760mm
|
| 46. |
945652
|
[1] |
Hose clamp
|
|
| 46A. |
858750
|
[1] |
Banjo nipple
|
|
| 47. |
969299
|
[1] |
Hollow screw
|
|
| 48. |
11994
|
[2] |
Gasket
|
|
| 49. |
967949
|
[1] |
Flange screw
|
|
| 50. |
952627
|
[1] |
Clamp
|
|
