纽荷兰零件查询(FD175) - CRAWLER DOZER (N.A. VERSION)(S/N 061640 & AFTER) (1/93-) (3.435[01]) - EQUIPMENT PUMP New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
385 次

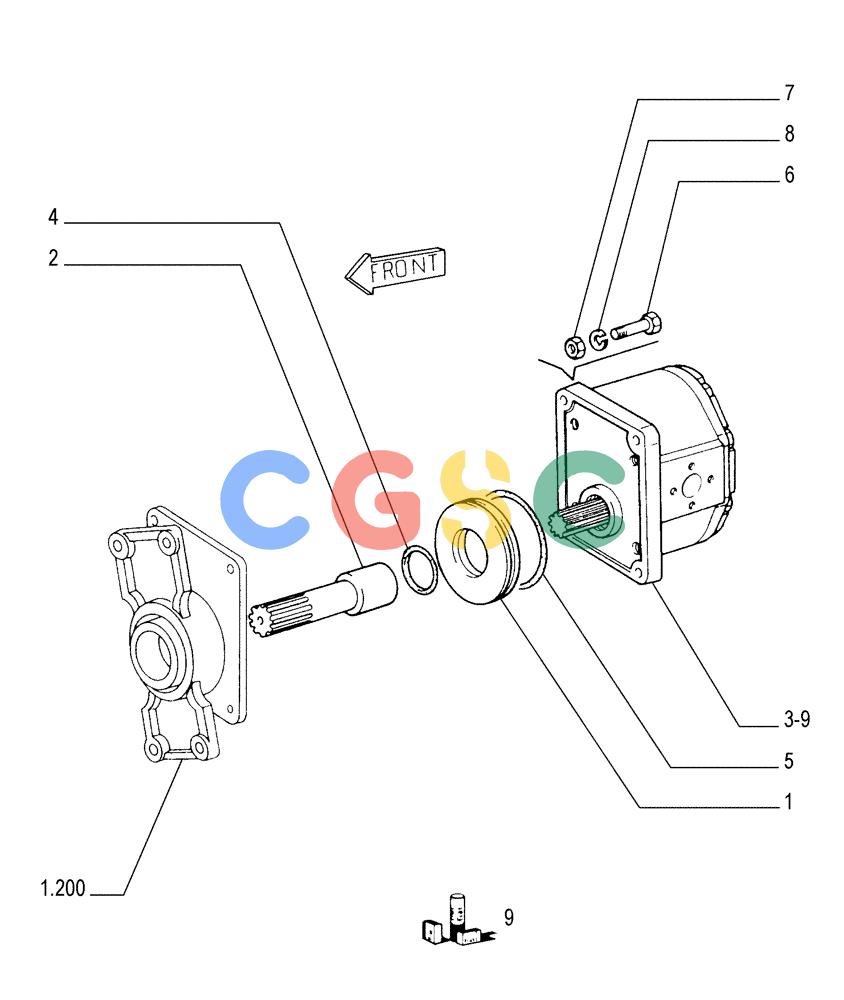

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 79013746 | [1] | RING | LEC |
| 2. | 79005842 | [1] | SHAFT | LEC |
| 3. | 79058392 | [1] | HYDRAULIC PUMP | LEC |
| 4. | 14460280 | [1] | O-RING,63.17mm ID x 2.62" Width | MOD(M63.17 ID x 2.62 Thk) Superseded by part number: 14460281 |
| 5. | 14461680 | [1] | O-RING,0.103" Thk x 4.737" ID, -158, Cl 5, 75 Duro | BAS Superseded by part number: 274336 |
| 6. | 11113431 | [4] | SCREW,Hex, M12 x 60mm, Cl 10.9 | LEC Superseded by part number: 43263 |
| 7. | 11702921 | [4] | NUT,M12, Cl 10 | LEC Superseded by part number: 17038425 |
| 8. | 14496731 | [4] | WASHER,M12 x 24 x 2.5 Thk | LEC Superseded by part number: 895-11012 |
| 9. | 79032739 | [1] | KIT | LEC |
