纽荷兰零件查询(FD175) - CRAWLER DOZER (N.A. VERSION)(S/N 061640 & AFTER) (1/93-) (3.436[01]) - EQUIPMENT CONTROL VALVE New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
1001 次

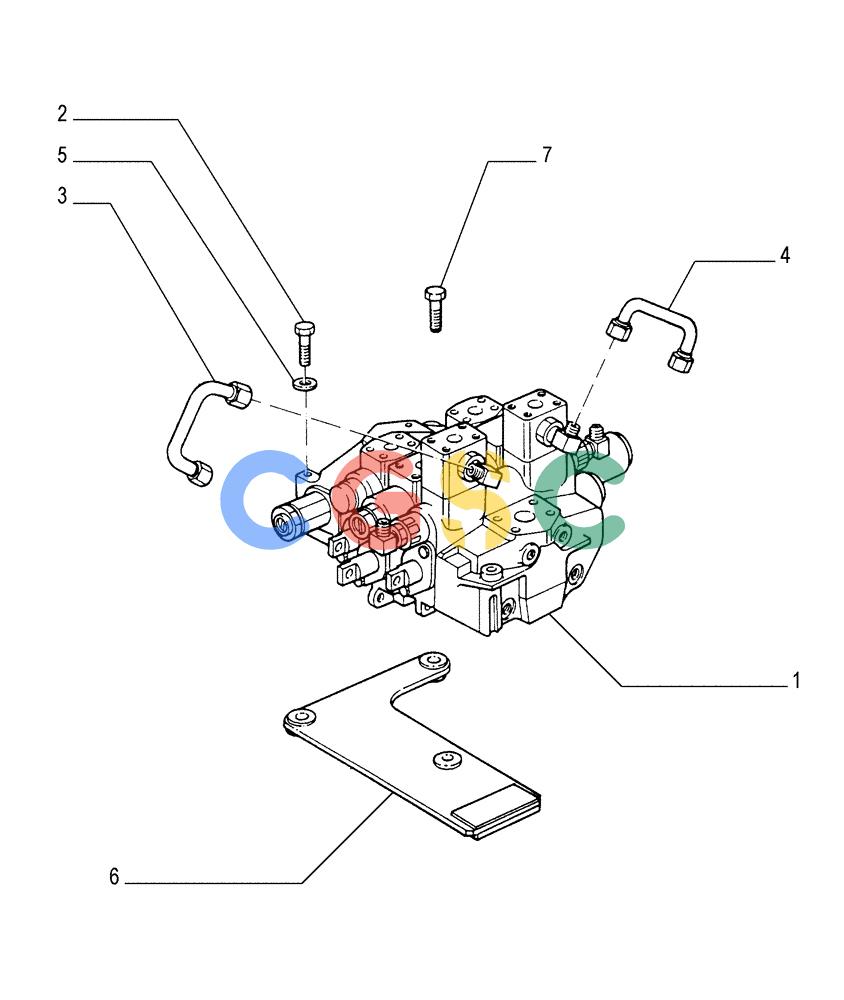

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76033161 | [1] | CONTROL VALVE | LEC- ASSY SEE TAV.2÷5 |
| 2. | 11114431 | [3] | BOLT,Hex, M12 x 110, 10.9 | LEC Superseded by part number: 9501756 |
| 3. | 76033354 | [1] | RIGID TUBE | LEC- RIGHT |
| 4. | 76033355 | [1] | RIGID TUBE | LEC- LEFT |
| 5. | 12496731 | [3] | WASHER | NH12X24X2,5 12X24X2,5 |
| 6. | 76032306 | [1] | SUPPORT | LECONLY FOR SPARE PARTS |
| 7. | 11114631 | [2] | BOLT,Hex, M12 x 120, 10.9 | BHBONLY FOR SPARE PARTS Superseded by part number: 86639151 |
