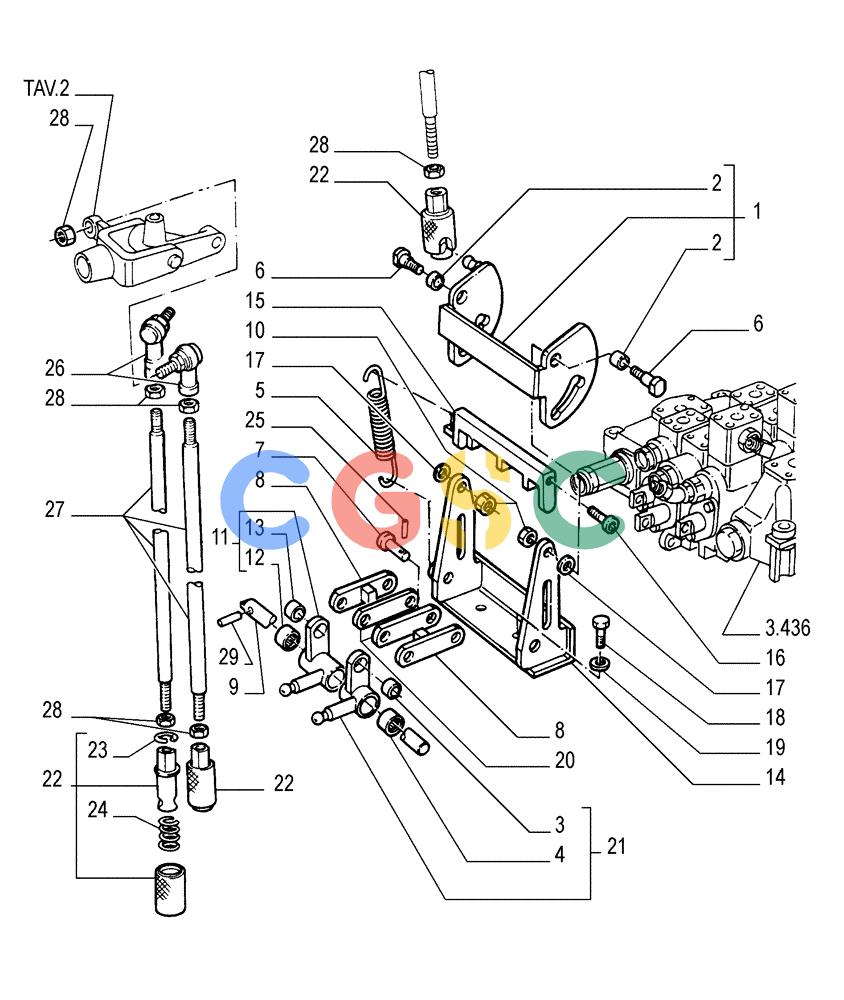

纽荷兰零件查询(FD175) - CRAWLER DOZER (N.A. VERSION)(S/N 061640 & AFTER) (1/93-) (3.437[01]) - CONTROL VALVE LINKAGE New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
736 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76030594 | [1] | STOP | LEC- ASSY |
| 2. | 79083246 | [2] | BUSHING | LEC |
| 3. | 76032321 | [1] | BUSHING | LEC |
| 4. | 79084568 | [2] | BEARING ASSY,Needle, 16mm ID x 22mm OD x 14mm W | LEC |
| 5. | 79012869 | [1] | SPRING | LEC |
| 6. | 79083292 | [2] | SCREW,M6 x 1.25 x 1.25mm | LEC |
| 7. | 76030576 | [4] | PIN | LEC |
| 8. | 76032324 | [2] | TIE-ROD | LEC |
| 9. | 76032314 | [1] | PIN,16mm OD x 190mm L | LEC |
| 10. | 16100821 | [2] | NUT,M8, Cl 10 | LEC Superseded by part number: 43362 |
| 11. | 76032315 | [1] | LEVER | LEC- ASSY |
| 14. | 76032307 | [1] | SUPPORT | LEC |
| 15. | 76030593 | [1] | ROCKER ARM | LEC |
| 16. | 76026930 | [2] | ROLLER | LEC |
| 17. | 14496531 | [2] | WASHER,8.4mm ID x 17mm OD x 1.6mm Thk | LEC Superseded by part number: 86624184 |
| 18. | 11106231 | [2] | BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9 | LEC |
| 19. | 12626231 | [2] | WASHER,10.2mm ID x 25mm OD x 3mm Thk | LEC |
| 20. | 76032325 | [2] | TIE-ROD | LEC |
| 21. | 76032320 | [1] | LEVER | LEC- ASSY |
| 22. | 79083370 | [3] | QUICK MALE COUPLING | LEC- ASSY |
| 23. | 13420776 | [1] | RING | LEC |
| 24. | 79086837 | [1] | SPRING | LEC |
| 25. | 10802801 | [4] | COTTER PIN,M2.5 x 25 | LEC |
| 26. | 79092808 | [2] | ARTICULATION | LEC |
| 27. | 79083941 | [2] | SHAFT | LEC |
| 28. | 11701721 | [7] | NUT,M10, Cl 10 | LEC Superseded by part number: 17038131 |
| 29. | 14164370 | [1] | LOCK PIN,M4 x 30, Slotted | FOR4,4X30 |
