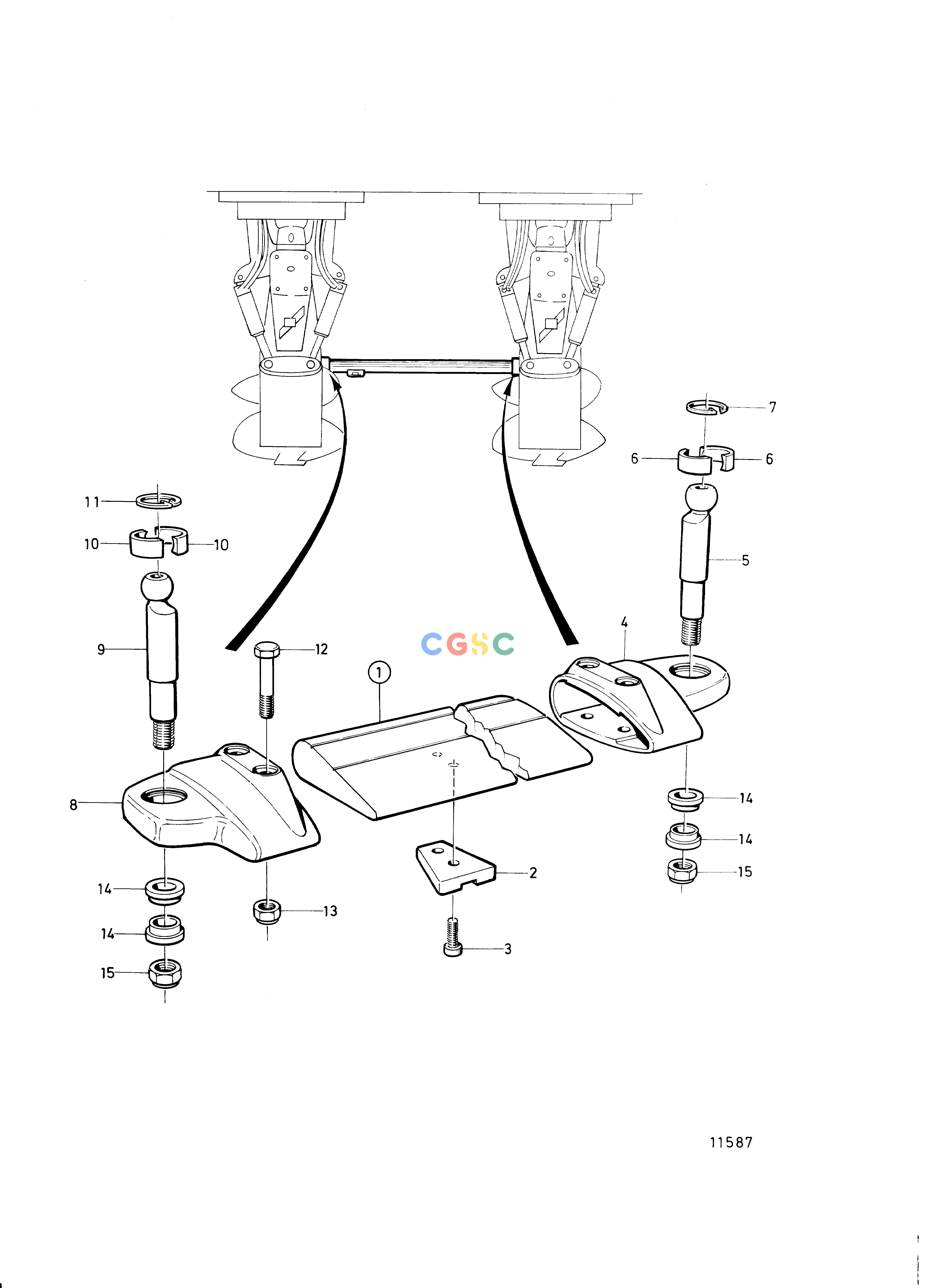

沃尔沃零件查询KAD42P-A; KAMD42P-A; HS1ASteering SystemParallel Rod for twin InstallationEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
889 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
872345
|
[1] |
Stay
|
|
| 2. |
876638
|
[1] |
Zinc electrode
|
|
| 3. |
963684
|
[2] |
Hex. socket screw
|
|
| 4. |
872972
|
[1] |
Link
|
S.B
|
| 5. |
872497
|
[1] |
Ball joint
|
|
| 6. |
872349
|
[2] |
Ball socket
|
|
| 7. |
872713
|
[1] |
Retaining ring
|
|
| 8. |
873121
|
[1] |
Link
|
P
|
| 9. |
872497
|
[1] |
Ball joint
|
|
| 10. |
872349
|
[2] |
Ball socket
|
|
| 11. |
872713
|
[1] |
Retaining ring
|
|
| 12. |
873218
|
[4] |
Screw
|
|
| 13. |
873219
|
[4] |
Lock nut
|
|
| 14. |
872348
|
[4] |
Washer
|
|
| 15. |
873220
|
[2] |
Lock nut
|
|
