沃尔沃零件查询KAD42P-A; KAMD42P-A; HS1ASteering SystemPower SteeringEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
411 次

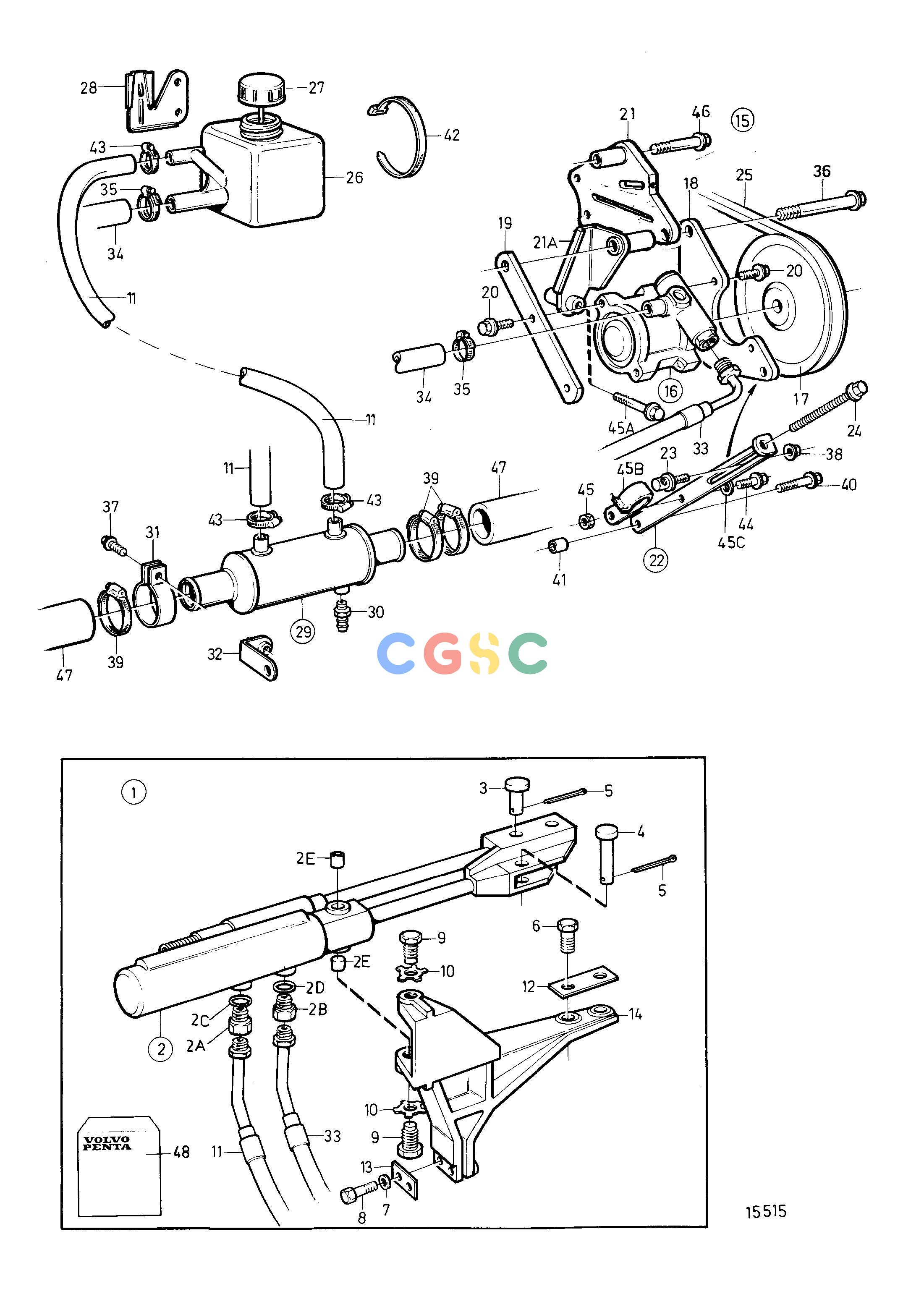

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
872229
|
[1] |
Power steering kit
|
|
| 2. |
872215
|
[1] |
Steering cylinder
|
|
| 2A. |
872698
|
[1] |
Nipple
|
|
| 2B. |
872699
|
[1] |
Nipple
|
|
| 2C. |
955985
|
[1] |
O-ring
|
|
| 2D. |
955982
|
[1] |
O-ring
|
|
| 2E. |
872700
|
[2] |
Bushing
|
|
| 3. |
872490
|
[1] |
Clevis pin
|
|
| 4. |
872491
|
[1] |
Clevis pin
|
|
| 5. |
949791
|
[2] |
Split pin
|
|
| 6. |
977625
|
[2] |
Hexagon screw
|
|
| 7. |
941908
|
[2] |
Spring washer
|
|
| 8. |
970950
|
[2] |
Hexagon screw
|
|
| 9. |
872103
|
[2] |
Pivot pin
|
|
| 10. |
872104
|
[2] |
Lock washer
|
|
| 11. |
872217
|
[1] |
Return hose
|
|
| 12. |
872311
|
[1] |
Tab washer
|
|
| 13. |
872369
|
[1] |
Tab washer
|
|
| 14. |
872443
|
[1] |
Bracket
|
|
| 15. |
861599
|
[1] |
Servo pump kit
|
For engines with a multi-V belt driven water pump.
|
| 16. |
1359649
|
[1] |
Servo pump
|
|
| 16. |
|
|
|
|
| 17. |
1378156
|
[1] |
Pulley
|
|
| 18. |
860682
|
[1] |
Bracket
|
|
| 19. |
860683
|
[1] |
Bracket
|
|
| 20. |
946440
|
[5] |
Flange screw
|
|
| 21. |
861560
|
[1] |
Bracket
|
|
| 21A. |
861659
|
[1] |
Bracket
|
|
| 22. |
861664
|
[1] |
Tensioning arm
|
|
| 23. |
861666
|
[1] |
Flange screw
|
|
| 24. |
977820
|
[1] |
Hexagon screw
|
|
| 25. |
973487
|
[1] |
V-belt
|
|
| 26. |
6819752
|
[1] |
Reservoir
|
(1359621)
|
| 27. |
1359625
|
[1] |
Cover
|
|
| 28. |
856768
|
[1] |
Bracket
|
|
| 29. |
858541
|
[1] |
Oil cooler
|
|
| 30. |
949918
|
[1] |
Shut-off cock
|
|
| 31. |
860700
|
[1] |
Attaching clamp
|
Early type
|
| 32. |
860701
|
[1] |
Bracket
|
Not included in kit., Early type
|
| 33. |
872232
|
[1] |
Pressure hose
|
|
| 34. |
941995
|
[1] |
Hose
|
L=2,5m
|
| 35. |
961664
|
[2] |
Hose clamp
|
|
| 36. |
947790
|
[1] |
Flange screw
|
|
| 37. |
946671
|
[1] |
Flange screw
|
Early type
|
| 38. |
945408
|
[1] |
Flange nut
|
|
| 39. |
961669
|
[3] |
Hose clamp
|
|
| 40. |
965182
|
[1] |
Flange screw
|
|
| 41. |
191172
|
[1] |
Washer
|
|
| 42. |
948211
|
[1] |
Cable tie
|
|
| 43. |
961663
|
[3] |
Hose clamp
|
|
| 44. |
946544
|
[1] |
Flange screw
|
|
| 45. |
949278
|
[1] |
Flange lock nut
|
|
| 45A. |
946473
|
[1] |
Flange screw
|
|
| 45B. |
860696
|
[1] |
Attaching clamp
|
|
| 45C. |
955893
|
[1] |
Washer
|
|
| 46. |
|
|
|
See group 21
|
| 47. |
860689
|
[1] |
Cooling hose
|
Sea water pump-oil cooler., Intake-oil cooler.
|
| 48. |
872697
|
[1] |
Sealing ring kit, steering cylinder
|
For 872215
|
