纽荷兰零件查询(FD175) - CRAWLER DOZER (N.A. VERSION)(S/N 061640 & AFTER) (1/93-) (3.471[01]) - PIPING - HYDRAULIC TILT New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
199 次

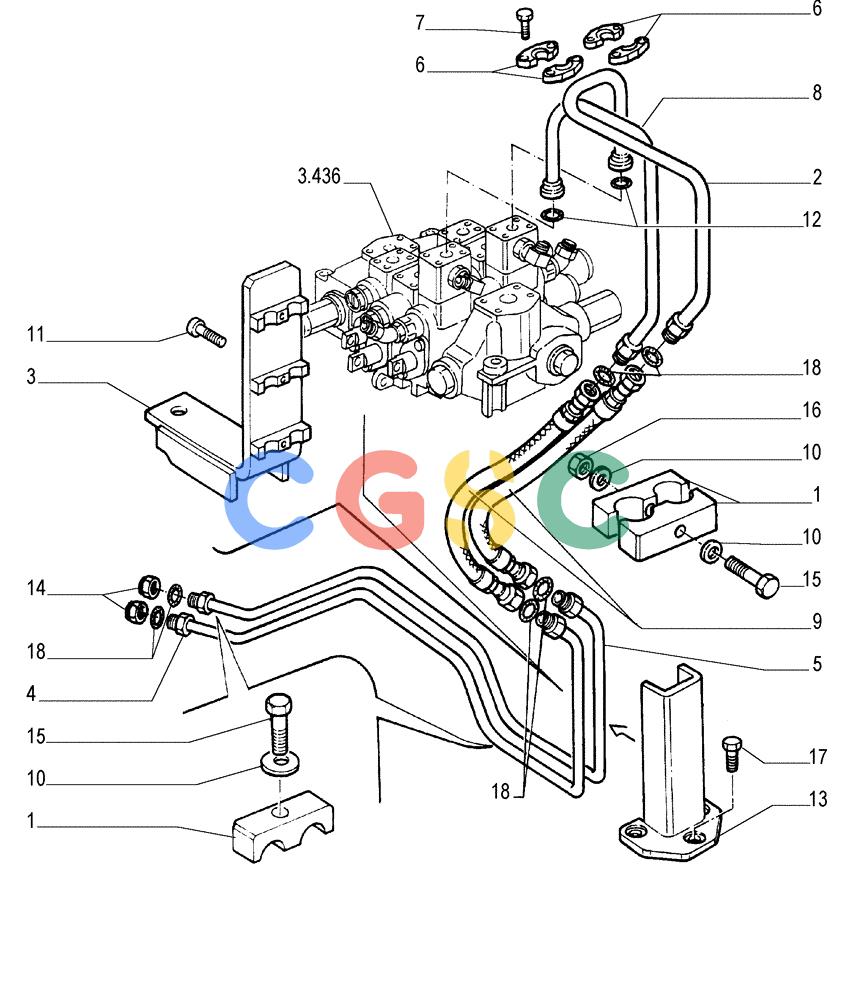

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76033339 | [4] | PAD | LEC |
| 2. | 76032258 | [1] | RIGID TUBE | LEC |
| 3. | 76033337 | [1] | GUARD | LEC |
| 4. | 76033341 | [1] | RIGID TUBE | LEC- FRONT |
| 5. | 76033343 | [1] | RIGID TUBE | LEC- REAR |
| 6. | 79050056 | [4] | FLANGE | LEC Superseded by part number: 71404407 |
| 7. | 14420231 | [8] | HEX SOC SCREW,M10 x 1.5 x 30mm, Cl 10.9, Full Thd | LEC |
| 8. | 76032257 | [1] | RIGID TUBE | LEC |
| 9. | 76033363 | [2] | HYDRAULIC HOSE | LEC |
| 10. | 12645031 | [4] | WASHER,8.45mm ID x 21mm OD x 3mm Thk | LEC |
| 11. | 14306331 | [3] | HEX SOC SCREW,M8 x 1.25 x 20mm, Cl 10.9, Full Thd | BAS |
| 12. | 70924110 | [2] | O-RING | LEC3,53X24,99 Superseded by part number: 98458442 |
| 13. | 79081875 | [1] | SUPPORT | LEC |
| 14. | 78100135 | [2] | PLUG,M12 | LEC |
| 15. | 16044031 | [3] | BOLT,Hex, M8 x 1.25 x 40mm, Cl 10.9 | LEC Superseded by part number: 9780069 |
| 16. | 16100821 | [1] | NUT,M8, Cl 10 | LEC Superseded by part number: 43362 |
| 17. | 11112231 | [3] | SCREW,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd | LEC Superseded by part number: 398792 |
| 18. | 70923841 | [6] | O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro | LEC Superseded by part number: 9992298 |
