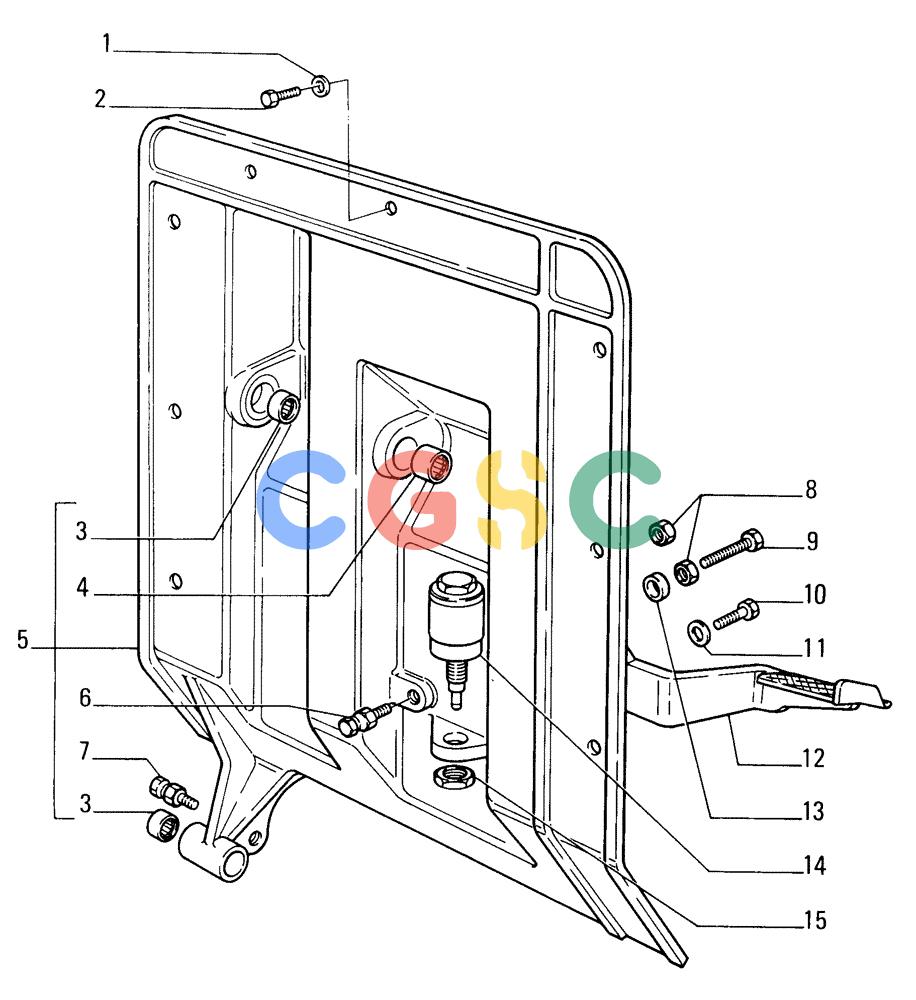

纽荷兰零件查询(FD175) - CRAWLER DOZER (N.A. VERSION)(S/N 061640 & AFTER) (1/93-) (2.304[02]) - BRAKE CONTROLS - STEERING CLUTCH New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
250 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 12645031 | [10] | WASHER,8.45mm ID x 21mm OD x 3mm Thk | LEC |
| 2. | 16043631 | [10] | SCREW,Hex, M8 x 25mm, Cl 10.9, Full Thd | BHB Superseded by part number: 43234 |
| 3. | 79060774 | [4] | BUSHING | LEC |
| 4. | 79048068 | [2] | ROLLER BEARING,20 mm ID x 26 mm OD x 16 mm | LEC Superseded by part number: 5188063 |
| 5. | 79103220 | [1] | SUPPORT | LEC- ASSY |
| 6. | 79102461 | [1] | PIN | LEC |
| 7. | 79087266 | [1] | PIN | LEC |
| 8. | 11701721 | [2] | NUT,M10, Cl 10 | LEC Superseded by part number: 17038131 |
| 9. | 15214931 | [1] | BOLT,Hex, M10 x 1.5 x 65mm, Cl 10.9, Full Thd | LEC |
| 10. | 11106431 | [3] | SCREW,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd | LEC Superseded by part number: 9515003 |
| 11. | 12626231 | [4] | WASHER,10.2mm ID x 25mm OD x 3mm Thk | LEC |
| 12. | 79102418 | [1] | FOOTREST | LEC |
| 13. | 79103243 | [1] | SPACER | LEC |
| 14. | 76031339 | [1] | CONTROL VALVE,M16 x 1.5 | LEC- ASSY SEE TAV.7 |
| 15. | 16103921 | [1] | NUT | LEC16X1,5X5 |
