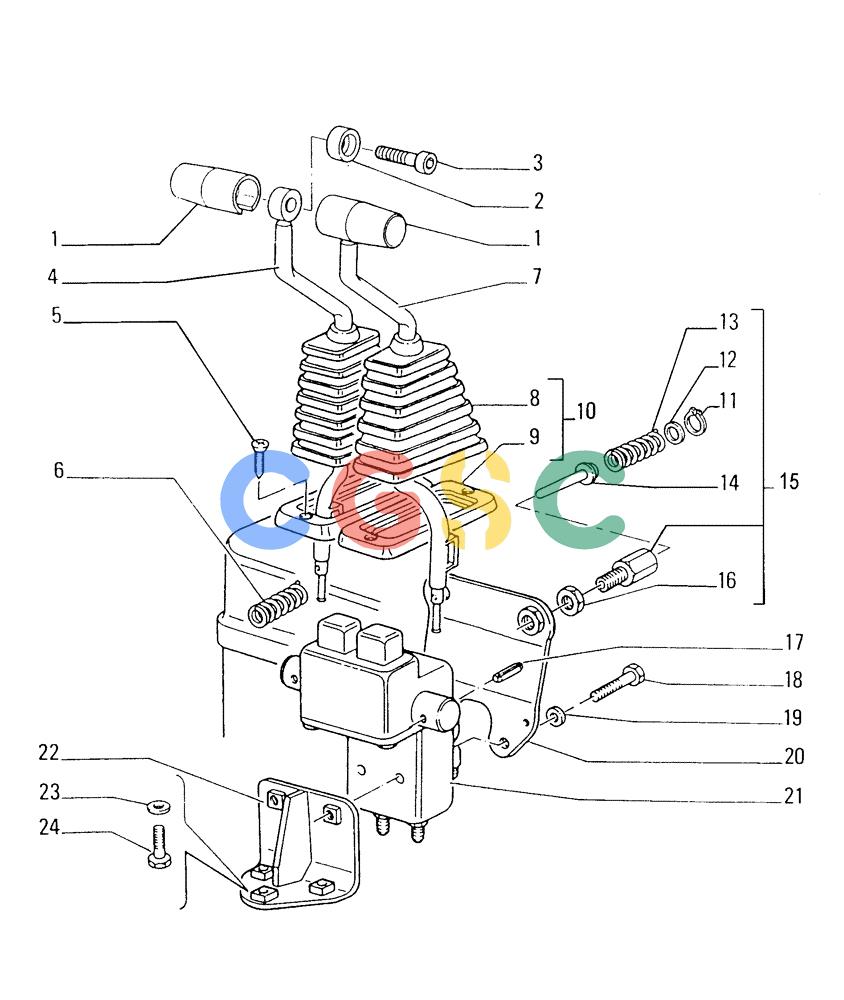

纽荷兰零件查询(FD175) - CRAWLER DOZER (N.A. VERSION)(S/N 061640 & AFTER) (1/93-) (2.304[03]) - BRAKE CONTROLS - STEERING CLUTCH New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
610 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76019513 | [2] | HANDLE GRIP | LEC |
| 2. | 76019514 | [2] | SPACER | LEC |
| 3. | 14420631 | [2] | HEX SOC SCREW,M10 x 1.5 x 50mm, Cl 10.9 | LEC |
| 4. | 76033234 | [1] | LEVER | LEC |
| 5. | 13313417 | [4] | SCREW,Pozidriv Oval Hd, Csk, M6 x 25mm, Cl 5.8, Full Thd | IMO |
| 6. | 79104777 | [2] | SPRING | LEC |
| 7. | 76033233 | [1] | LEVER | LEC |
| 8. | 79095562 | [1] | BOOT | LEC Superseded by part number: 79100924 |
| 9. | 79095564 | [1] | CAPPING | LEC |
| 10. | 79100924 | [2] | BOOT | LEC- ASSY |
| 11. | 11057776 | [1] | SNAP RING,M19, Int | BAS Superseded by part number: 412335 |
| 12. | 79114537 | [1] | DISC | LEC |
| 13. | 79114538 | [1] | SPRING | LEC |
| 14. | 79114536 | [1] | PIN,6mm OD x 51mm L | LEC |
| 15. | 76029108 | [1] | PLUNGER | LEC- ASSY Superseded by part number: 79114539, 79114538, 79114537, 79114536, 11057776, 10717421 |
| 16. | 10717421 | [1] | THIN NUT,Thin, M14 x 2, Cl 05 | MKT |
| 17. | 14601170 | [2] | LOCK PIN,M5 x 26, Slotted | FOR5X26 Superseded by part number: 130045 |
| 18. | 86625003 | [2] | BOLT,Hex, M8 x 50mm, Cl 10.9 | FAR |
| 19. | 12645031 | [2] | WASHER,8.45mm ID x 21mm OD x 3mm Thk | LEC |
| 20. | 76031334 | [1] | BRACKET | LEC |
| 21. | 79077489 | [1] | MANIPULATOR | LEC- ASSY SEE TAV.6 |
| 22. | 79101722 | [1] | SUPPORT | LEC |
| 23. | 79011527 | [3] | WASHER,8.6mm ID x 22mm OD x 5mm Thk | LEC |
| 24. | 16043431 | [3] | SCREW,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd | BHB Superseded by part number: 16605534 |
