纽荷兰零件查询(FD175) - CRAWLER DOZER (N.A. VERSION)(S/N 061640 & AFTER) (1/93-) (2.345[02]) - TRACK ROLLERS New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
855 次

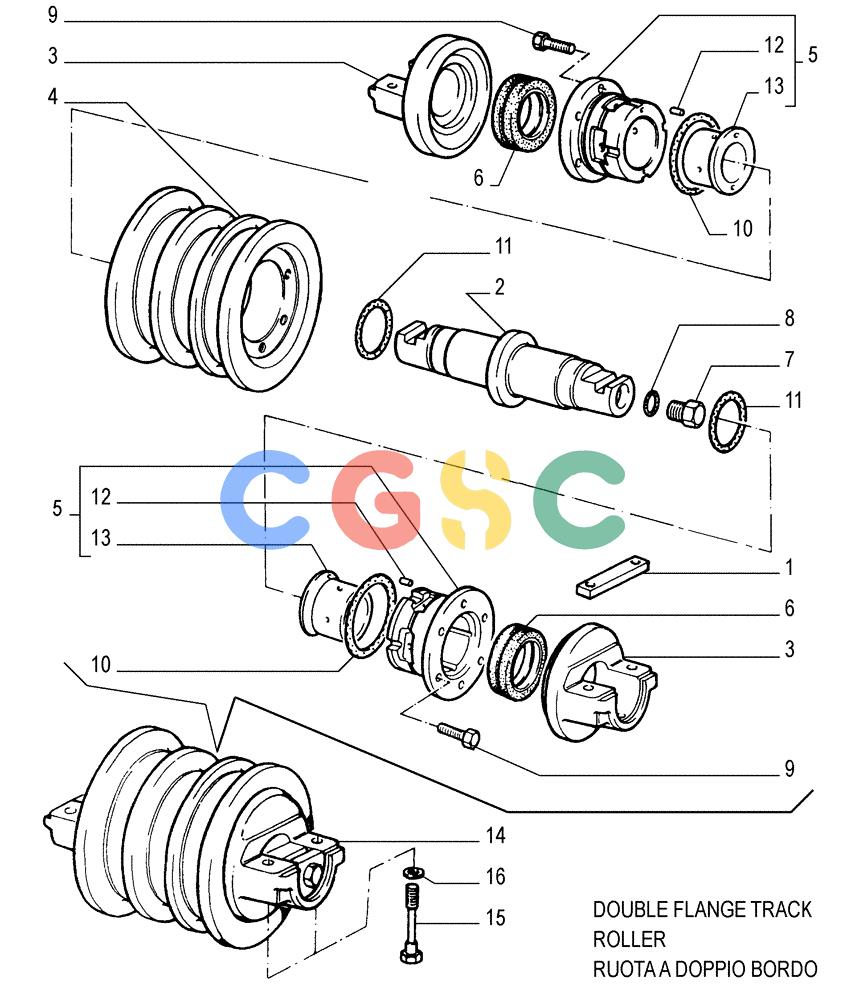

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 79103264 | [2] | KEY | LEC |
| 2. | 76029450 | [1] | ROLLER SHAFT | LEC |
| 3. | 76001770 | [2] | SUPPORT | LEC |
| 4. | 76004865 | [1] | TRACK ROLLER | LEC Superseded by part number: 76013222 |
| 5. | 79103256 | [2] | HOUSING | LEC- ASSY |
| 6. | 79103260 | [2] | SEAL,67mm ID x 94mm OD x 38mm Thk | LEC |
| 7. | 79019318 | [1] | PLUG | LEC |
| 8. | 14457080 | [1] | O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro | LEC Superseded by part number: 86637641 |
| 9. | 14233730 | [12] | SCREW,Hex, M10 x 1.25 x 35mm, Cl 10.9, Full Thd | MOD10X1,25X35 Superseded by part number: 14233731 |
| 10. | 14466280 | [2] | O-RING,0.139" Thk x 4.234" ID, -244, Cl 5, 75 Duro | LEC Superseded by part number: 455025 |
| 11. | 14464680 | [2] | O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro | JES Superseded by part number: 14464681 |
| 12. | 79103263 | [1] | ROLL PIN | LEC |
| 13. | 79103257 | [1] | BUSHING | LEC |
| 14. | 76029448 | [6] | TRACK ROLLER | LEC- ASSY |
| 15. | 15981337 | [24] | BOLT,Hex, M16 x 1.5 x 75mm, Cl 10.9 | MOD16X1,5X75 Superseded by part number: 15981334 |
| 16. | 14496931 | [24] | WASHER,17mm ID x 30mm OD x 3mm Thk | IMO Superseded by part number: 86625266 |
