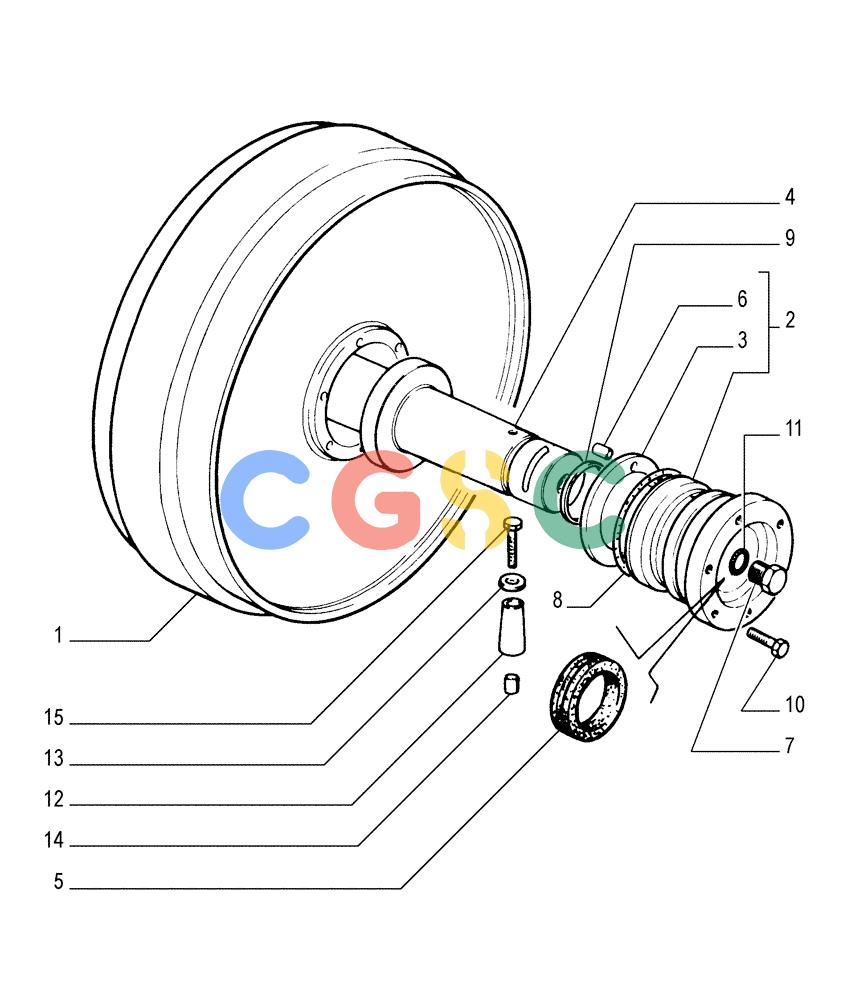

纽荷兰零件查询(FD175) - CRAWLER DOZER (N.A. VERSION)(S/N 061640 & AFTER) (1/93-) (2.346[01]) - TRACK IDLER - WHEEL New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
365 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76001965 | [2] | IDLER WHEEL | LEC- IN ALTERNATIVE Superseded by part number: 76052877 |
| 1. | 76030730 | [2] | IDLER WHEEL | LEC- IN ALTERNATIVE Superseded by part number: 76052877 |
| 2. | 79103256 | [4] | HOUSING | LEC- ASSY IN ALTERNATIVE |
| 2. | 76005867 | [4] | CASE | LEC- ASSY IN ALTERNATIVE Superseded by part number: REFERENCE |
| 3. | 76005866 | [1] | BUSHING | LEC Superseded by part number: 79103256, 79103256, 79103259 |
| 4. | 76029504 | [2] | SHAFT | LEC- IN ALTERNATIVE |
| 4. | 76013244 | [2] | SHAFT | LEC- IN ALTERNATIVE Superseded by part number: 79103781 |
| 5. | 76003974 | [4] | SEAL | LEC Superseded by part number: 79103260 |
| 6. | 76003935 | [2] | DOWEL | LEC |
| 7. | 79019318 | [2] | PLUG | LEC |
| 8. | 14466280 | [4] | O-RING,0.139" Thk x 4.234" ID, -244, Cl 5, 75 Duro | LEC Superseded by part number: 455025 |
| 9. | 14464680 | [4] | O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro | JES Superseded by part number: 14464681 |
| 11. | 14457080 | [2] | O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro | LEC Superseded by part number: 86637641 |
| 12. | 79005163 | [8] | PIN,26mm OD x 60mm L | LEC |
| 13. | 79014970 | [8] | WASHER | LEC |
| 14. | 563024 | [8] | PLUG | LEC |
| 15. | 15233234 | [8] | BOLT,Hex, M12 x 1.25 x 70mm, Cl 10.9, Full Thd | LEC12X1,25X70 Superseded by part number: 15233231 |
| 10. | 14233734 | [24] | BOLT,Hex, M10 x 1.25 x 35mm, Cl 10.9, Full Thd | JES |
