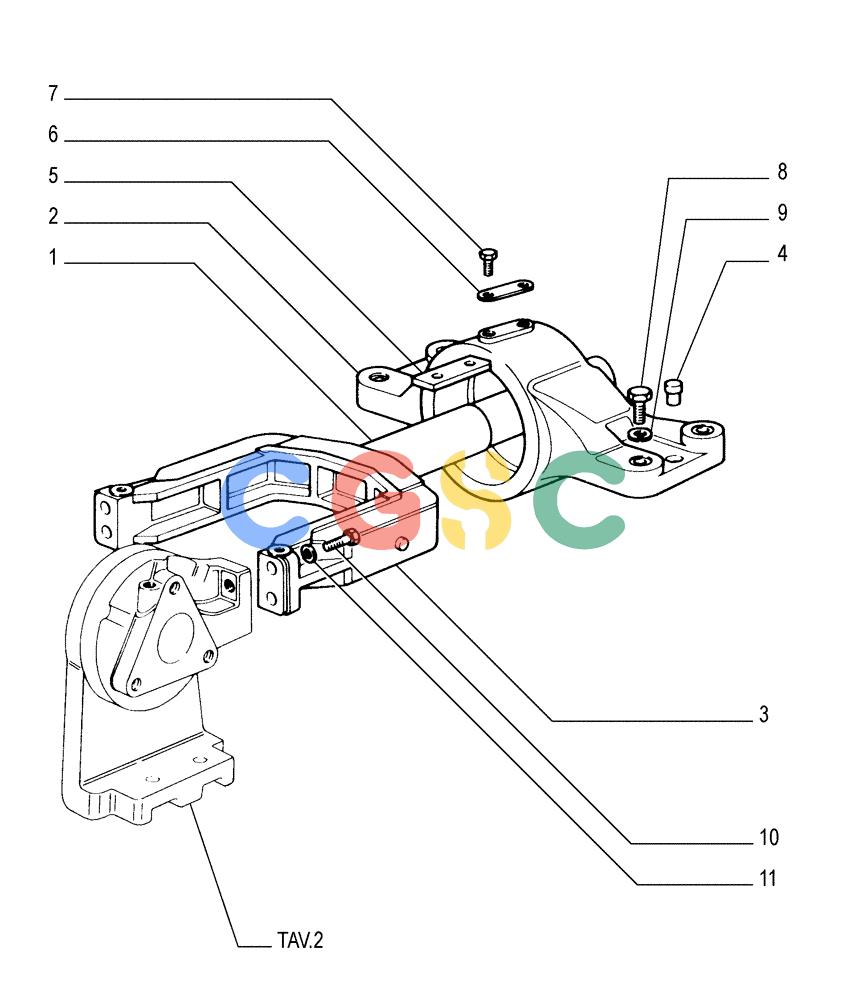

纽荷兰零件查询(FD175) - CRAWLER DOZER (N.A. VERSION)(S/N 061640 & AFTER) (1/93-) (2.346[03]) - TRACK IDLER - YOKE New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
677 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76010255 | [2] | ADJUSTMENT ROD | LEC |
| 2. | 79005191 | [2] | SUPPORT | LEC |
| 3. | 4951201 | [2] | SUPPORT | LEC |
| 4. | 589559 | [4] | PIN | MOD Superseded by part number: 75128815 |
| 5. | 587246 | [2] | KEY | LEC |
| 6. | 14244710 | [2] | COVER PLATE | LEC13X55 |
| 7. | 15540634 | [4] | BOLT,Hex, M12 x 1.25 x 40mm, Cl 10.9, Full Thd | LEC Superseded by part number: 15540631 |
| 8. | 15988734 | [8] | BOLT,Hex, M20 x 1.5 x 80mm, Cl 10.9 | LEC Superseded by part number: 15988737 |
| 9. | 14497131 | [8] | WASHER,21mm ID x 37mm OD x 3mm Thk | LEC Superseded by part number: 140021 |
| 10. | 15981034 | [8] | BOLT,Hex, M16 x 1.5 x 55mm, Cl 10.9 | LEC Superseded by part number: 15981031 |
| 11. | 14496931 | [8] | WASHER,17mm ID x 30mm OD x 3mm Thk | IMO Superseded by part number: 86625266 |
