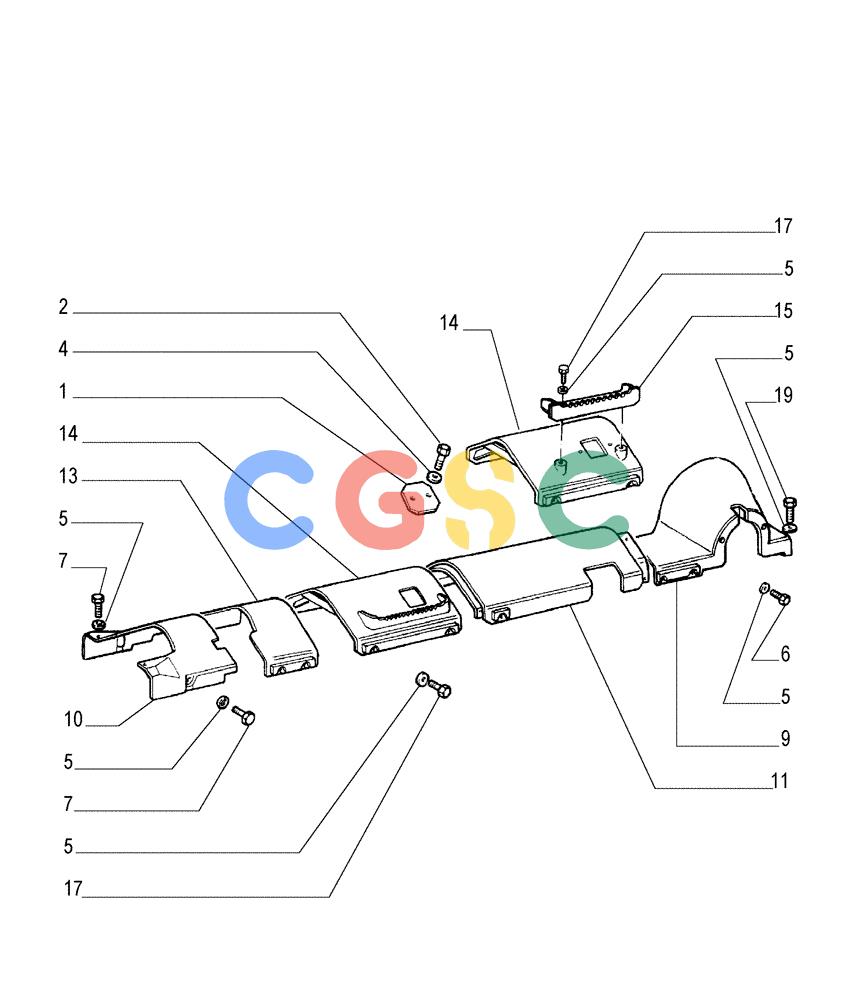

纽荷兰零件查询(FD175) - CRAWLER DOZER (N.A. VERSION)(S/N 061640 & AFTER) (1/93-) (2.348[01]) - TRACK GUARDS New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
160 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 591246 | [2] | BRACKET | GI Superseded by part number: 75128819, 75128819, 80591246 |
| 2. | 11106031 | [4] | BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9 | LEC |
| 4. | 12626231 | [4] | WASHER,10.2mm ID x 25mm OD x 3mm Thk | LEC |
| 5. | 12648531 | [44] | WASHER,12.2mm ID x 28mm OD x 4mm Thk | LEC Superseded by part number: 86625256 |
| 6. | 15541431 | [4] | BOLT,Hex, M12 x 1.25 x 80mm, Cl 10.9 | MKT |
| 7. | 11112231 | [10] | SCREW,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd | LEC Superseded by part number: 398792 |
| 9. | 76035677 | [1] | GUARD | LEC- RIGHT |
| 9. | 76035676 | [1] | GUARD | LEC- LEFT |
| 10. | 79090156 | [1] | GUARD | LEC- RIGHT |
| 10. | 79090155 | [1] | GUARD | LEC- LEFT |
| 11. | 79089936 | [1] | GUARD | LEC- REAR LEFT |
| 11. | 79089940 | [1] | GUARD | LEC- REAR RIGHT |
| 13. | 79089947 | [1] | GUARD | LEC- LEFT |
| 13. | 79089950 | [1] | GUARD | LEC- RIGHT |
| 14. | 79089931 | [1] | GUARD | LEC- FRONT LEFT |
| 14. | 79089934 | [1] | GUARD | LEC- FRONT RIGHT |
| 15. | 79089245 | [2] | FOOTREST | LEC Superseded by part number: 76089488 |
| 17. | 11112431 | [30] | SCREW,Hex, M12 x 30mm, Cl 10.9, Full Thd | LEC Superseded by part number: 87015736 |
