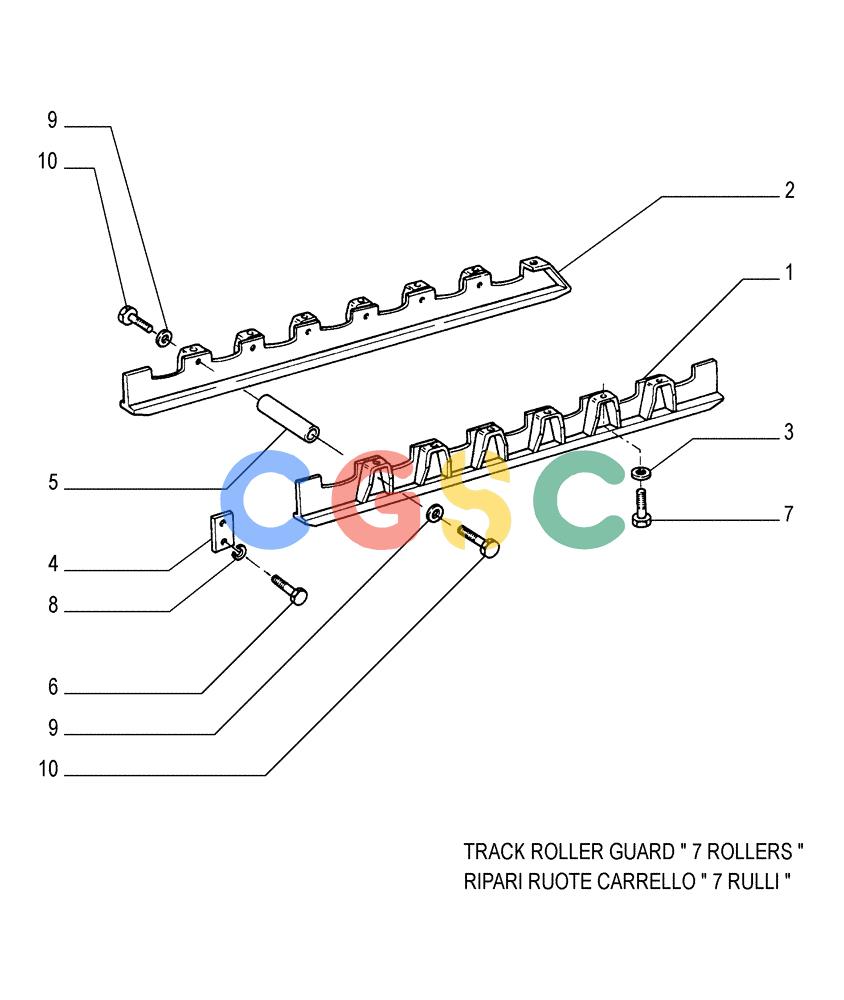

纽荷兰零件查询(FD175) - CRAWLER DOZER (N.A. VERSION)(S/N 061640 & AFTER) (1/93-) (2.348[02]) - TRACK GUARDS New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
929 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76002926 | [2] | GUARD | LEC- OUTER |
| 2. | 76002928 | [1] | GUARD | LEC- INNER LEFT |
| 2. | 76002927 | [1] | GUARD | LEC- INNER RIGHT |
| 3. | 79005240 | [26] | WASHER,16.8mm ID x 36mm OD x 8mm Thk | LEC |
| 4. | 76006423 | [6] | PLATE | LEC |
| 5. | 76004368 | [12] | SPACER | LEC |
| 6. | 11390537 | [12] | BOLT,Hex, M16 x 1.5 x 40, 10.9, Full Thd | LEC Superseded by part number: 11390534 |
| 7. | 15840537 | [26] | BOLT,Hex, M16 x 1.5 x 50mm, Cl 10.9, Full Thd | LEC Superseded by part number: 15840534 |
| 8. | 14496931 | [12] | WASHER,17mm ID x 30mm OD x 3mm Thk | IMO Superseded by part number: 86625266 |
| 9. | 79032222 | [24] | WASHER,21mm ID x 40mm OD x 8mm Thk | LEC |
| 10. | 11408631 | [24] | BOLT,Hex, M20 x 1.5 x 45, 10.9, Full Thd | LEC Superseded by part number: 514-1211 |
