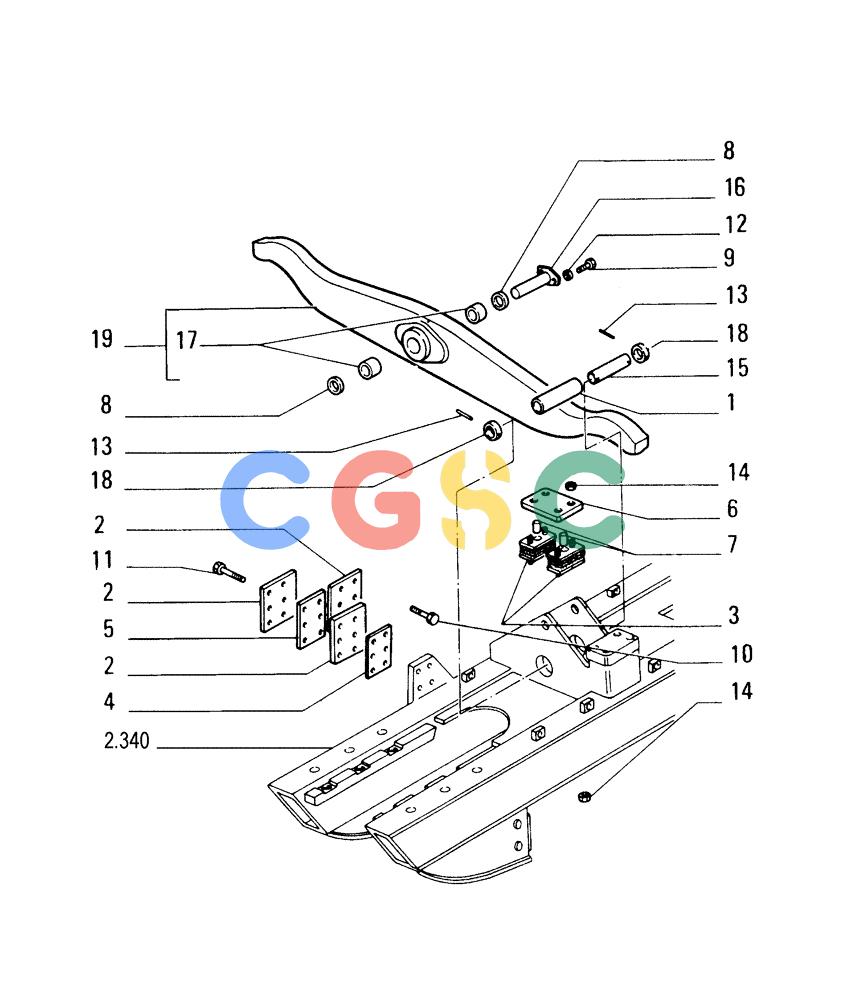

纽荷兰零件查询(FD175) - CRAWLER DOZER (N.A. VERSION)(S/N 061640 & AFTER) (1/93-) (2.357[01]) - TRACK FRONT SUSPENSION New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
284 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 79005968 | [2] | BUSHING,30.51mm ID x 45mm OD x 100mm L | MOD |
| 2. | 587643 | [6] | PLATE | LEC |
| 3. | 591148 | [4] | PAD | LEC Superseded by part number: 75224043, 75222390 |
| 4. | 593096 | [1] | COVER PLATE | LEC0,5 Superseded by part number: 75128831, 75128831, 80593096 |
| 4. | 593097 | [1] | COVER PLATE | LEC1,0 Superseded by part number: 1409345, 1409345, LEC593097 |
| 4. | 593098 | [1] | COVER PLATE | LEC1,5 |
| 5. | 595489 | [2] | SPACER,0.5" OD, 17-3" Length | LEC Superseded by part number: 75128840, 75128840, 80595489 |
| 6. | 596678 | [2] | PLATE | LEC |
| 7. | 596679 | [4] | PIN,25mm OD x 63.5mm L | LEC |
| 8. | 8291846 | [2] | SEAL,70mm ID x 85mm OD x 7.5mm Thk | LEC |
| 9. | 11112431 | [2] | SCREW,Hex, M12 x 30mm, Cl 10.9, Full Thd | LEC Superseded by part number: 87015736 |
| 10. | 14258034 | [12] | SCREW,Hex, M16 x 1.5 x 45mm, Cl 10.9, Full Thd | LEC16X1,5X45 Superseded by part number: 14258031 |
| 11. | 14259034 | [12] | SCREW,M16 x 1.5 x 90mm | LEC16X1,5X90 Superseded by part number: 14259031 |
| 12. | 14496731 | [2] | WASHER,M12 x 24 x 2.5 Thk | LEC Superseded by part number: 895-11012 |
| 13. | 14601771 | [4] | COTTER PIN | COE |
| 14. | 16109221 | [16] | LOCK NUT,M12 x 1.25 | MKT12X1,25X12 Superseded by part number: |
| 15. | 76002816 | [2] | PIN,30.04mm OD x 200mm L | LEC |
| 16. | 76005455 | [1] | PIN,70mm OD x 315.2mm L | LEC |
| 17. | 76029621 | [2] | BUSHING | LEC |
| 18. | 79004817 | [4] | RING | LEC |
| 19. | 76029620 | [1] | CROSSRAIL | LEC- ASSY |
