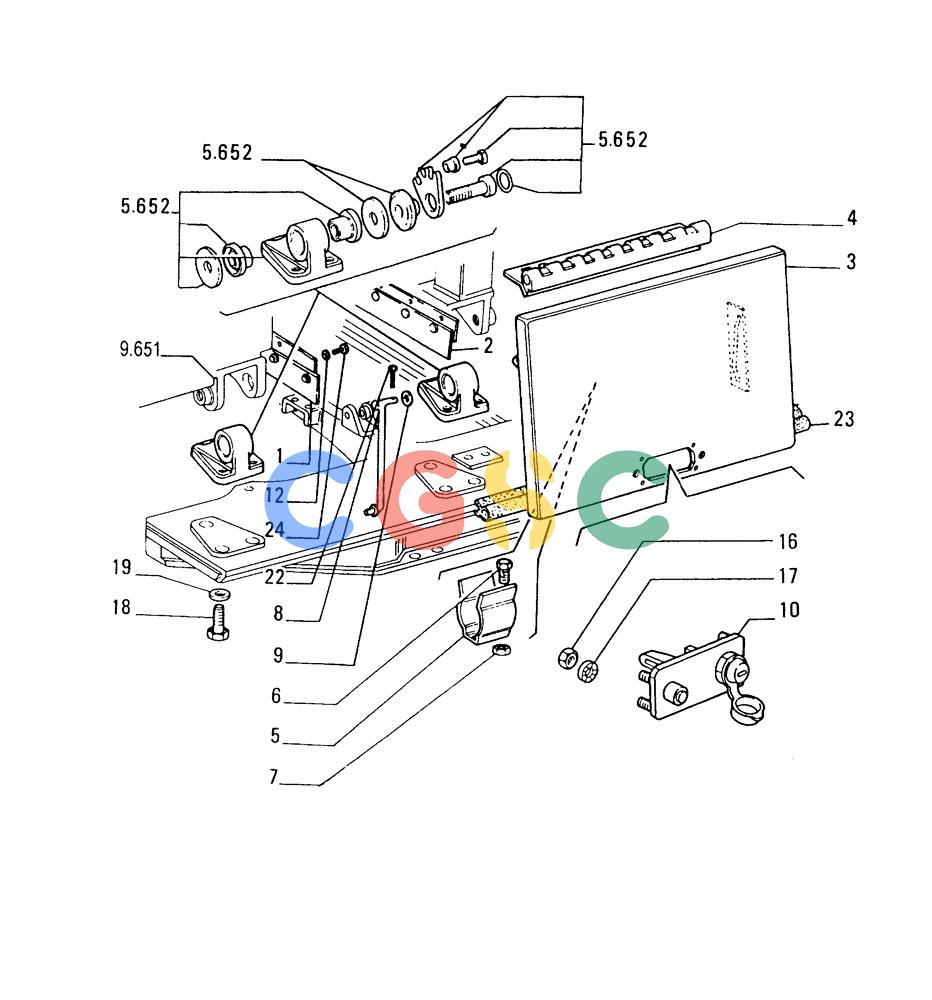

纽荷兰零件查询(FD175) - CRAWLER DOZER (N.A. VERSION)(S/N 061640 & AFTER) (1/93-) (5.645[02]) - ROPS SUPPORT New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
142 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 79112498 | [1] | GUARD | LEC- LEFT |
| 2. | 79112501 | [1] | GUARD | LEC- RIGHT |
| 3. | 79114888 | [2] | DOOR | LEC |
| 4. | 79102358 | [2] | HINGE | LEC |
| 5. | 79106820 | [2] | SPRING | LEC |
| 6. | 10977531 | [4] | BOLT,Hex, M5 x 10mm, Cl 10.9, Full Thd | LEC |
| 7. | 15896421 | [4] | NUT,M5, Cl 10 | TTF Superseded by part number: 1112803 |
| 8. | 79113712 | [2] | TIE-ROD | LEC |
| 9. | 12626231 | [4] | WASHER,10.2mm ID x 25mm OD x 3mm Thk | LEC |
| 10. | 79093712 | [2] | LOCK | LEC- ASSY VED.SGR.5.601 TAV.8 |
| 12. | 14496431 | [6] | WASHER,6.4mm ID x 12.5mm OD x 1.6mm Thk | LEC Superseded by part number: 86588450 |
| 16. | 10727321 | [8] | THIN NUT,Thin, M6 x 1, Cl 05, LH | LEC |
| 17. | 10615479 | [8] | LOCK WASHER,6.4mm ID x 11mm OD x 0.7mm Thk | LEC Superseded by part number: |
| 18. | 15988331 | [12] | BOLT,Hex, M20 x 1.5 x 60mm, Cl 10.9, Full Thd | LEC Superseded by part number: 15988337 |
| 19. | 79005243 | [12] | WASHER,20.4mm ID x 46mm OD x 8mm Thk | LEC |
| 22. | 10796401 | [2] | COTTER PIN,M3.2 x 18 | TTF Superseded by part number: |
| 23. | 79113710 | [2] | DOOR SEAL | LEC Superseded by part number: 76027659 |
| 24. | 10979431 | [6] | SCREW,Hex, M6 x 10mm, Cl 10.9, Full Thd | LEC |
