纽荷兰零件查询(FD175) - CRAWLER DOZER (N.A. VERSION)(S/N 061640 & AFTER) (1/93-) (5.645[03]) - ROPS SUPPORT New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
501 次

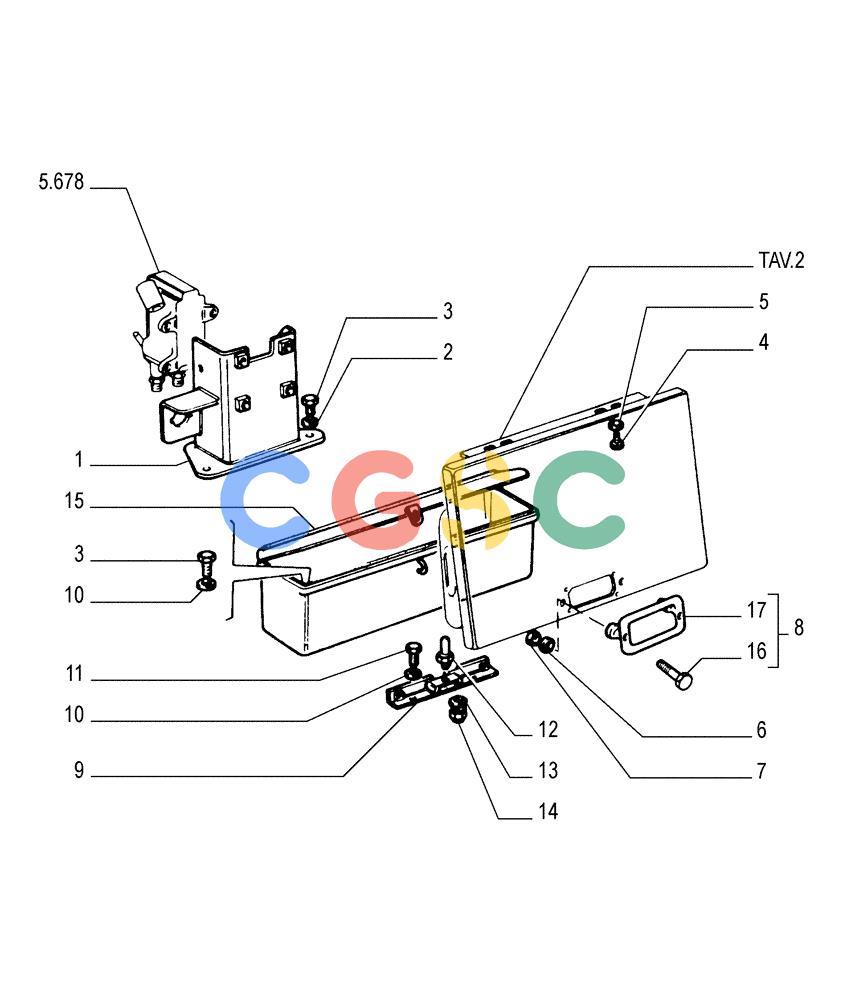

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 79094508 | [1] | SUPPORT | LEC Superseded by part number: 87677143 |
| 2. | 12626231 | [2] | WASHER,10.2mm ID x 25mm OD x 3mm Thk | LEC |
| 3. | 11106231 | [5] | BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9 | LEC |
| 4. | 16043231 | [16] | SCREW,Hex, M8 x 16mm, Cl 10.9, Full Thd | LEC |
| 5. | 12647031 | [8] | WASHER | LEC |
| 6. | 10615679 | [4] | LOCK WASHER,Ext Tooth, M8 | BHB8 Superseded by part number: 10615671 |
| 7. | 10727321 | [4] | THIN NUT,Thin, M6 x 1, Cl 05, LH | LEC |
| 8. | 76030113 | [2] | HANDLE | LEC- ASSY |
| 9. | 79113704 | [2] | SUPPORT | LEC |
| 10. | 14496631 | [6] | WASHER,10.5mm ID x 21mm OD x 2mm Thk | LEC Superseded by part number: 14496621 |
| 11. | 11106031 | [4] | BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9 | LEC |
| 12. | 79092929 | [2] | PIN,12mm OD x 80mm L | LEC |
| 13. | 12648531 | [2] | WASHER,12.2mm ID x 28mm OD x 4mm Thk | LEC Superseded by part number: 86625256 |
| 14. | 12577521 | [2] | NUT,M12 x 1.75 | LEC |
| 15. | 76033120 | [1] | TOOL BOX | LEC |
| 16. | 16044031 | [4] | BOLT,Hex, M8 x 1.25 x 40mm, Cl 10.9 | LEC Superseded by part number: 9780069 |
| 17. | 76030114 | [2] | HANDLE | LEC Superseded by part number: 76030113 |
