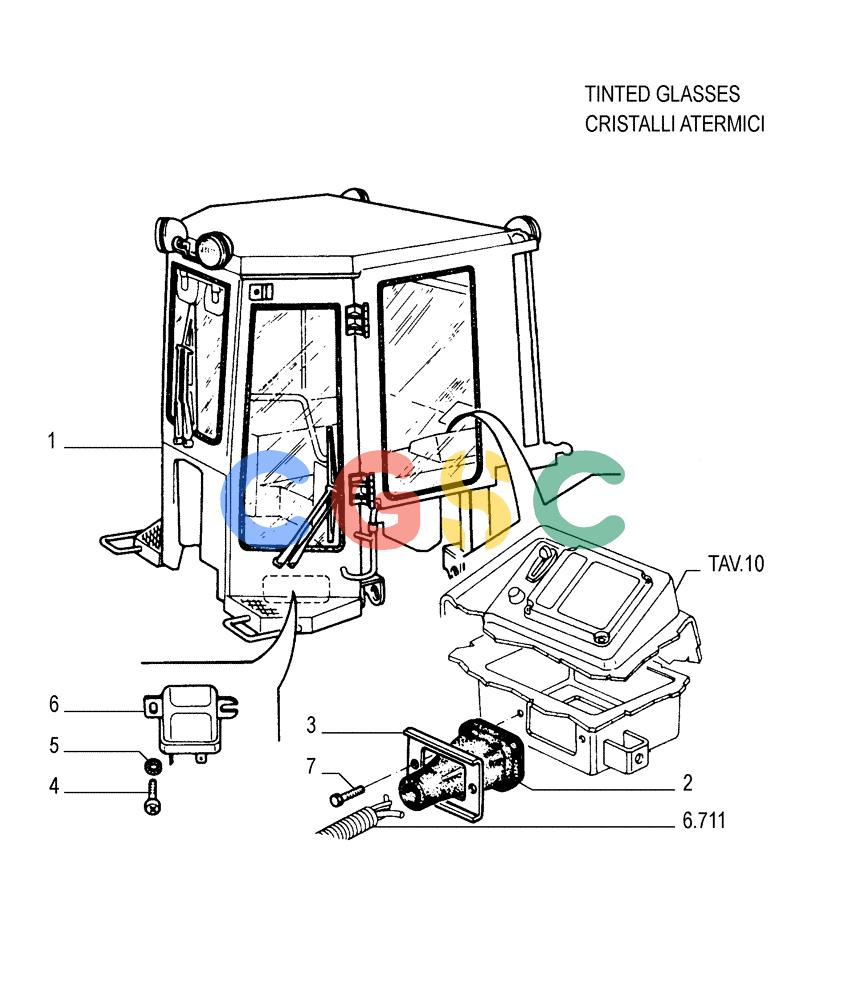

纽荷兰零件查询(FD175) - CRAWLER DOZER (N.A. VERSION)(S/N 061640 & AFTER) (1/93-) (5.652[01]) - ROPS CAB New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
779 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 79114480 | [1] | CAB | LEC- ASSY SEE TAV.4-18 |
| 2. | 79073088 | [1] | BOOT | LEC |
| 3. | 79073087 | [1] | CONSOLE | LEC |
| 4. | 13272617 | [2] | SCREW,Pozidriv Pan Hd, M4 x 25mm, Cl 5.8 | LEC |
| 5. | 10615379 | [2] | LOCK WASHER,Ext Tooth, M5 | LEC Superseded by part number: |
| 6. | 79098184 | [1] | RELAY | LEC24V-50A |
| 7. | 10902431 | [2] | SCREW,Hex, M6 x 20mm, Cl 10.9 | LEC Superseded by part number: 86505530 |
